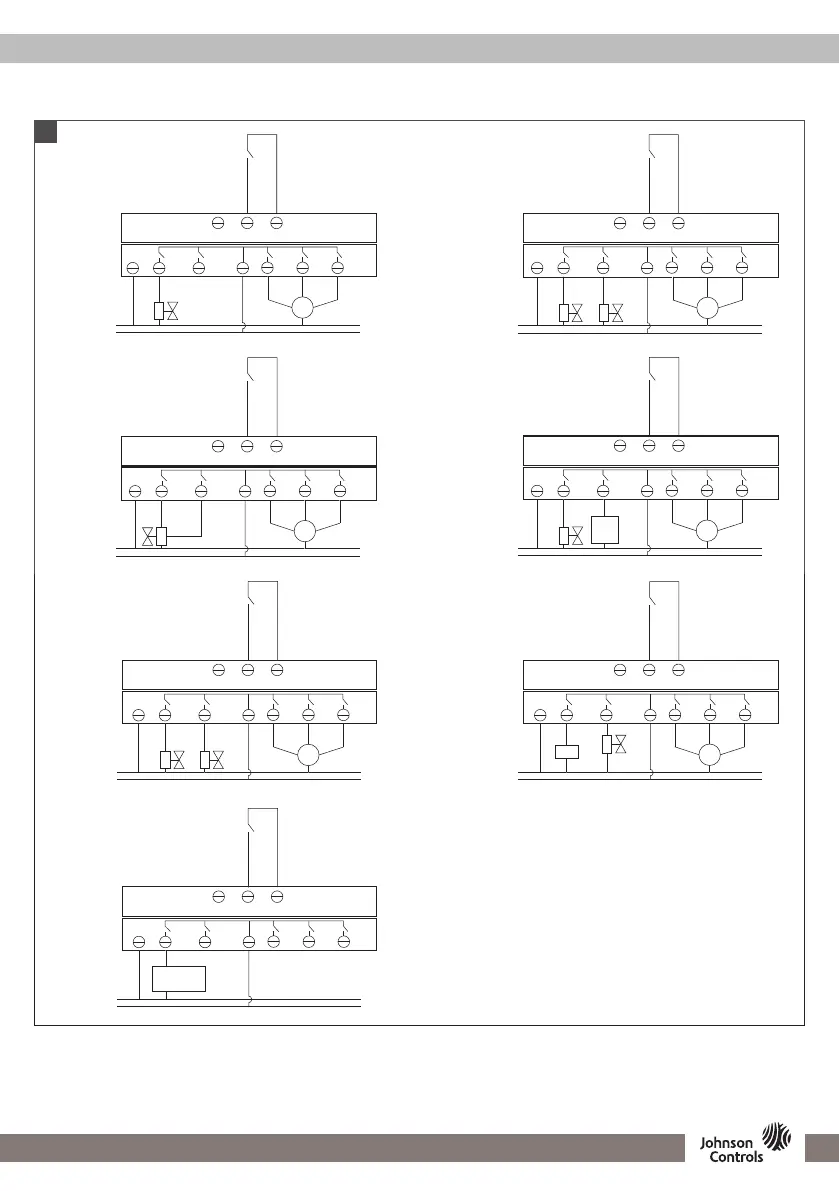

T9200
P/N 24-11446-00018 Rev. B Issue Date: 11 2020
T9200-TF20-1JS0
GND
L
N
2-pipe FCU
2管制风机盘管
100-240 VAC 50/60Hz
OCC
Cool/
Heat
FAN
N Hi
Med
Low
LVAL1
VAL2
GND
L
N
4-pipe FCU
4管制风机盘管
100-240 VAC 50/60Hz
OCC
Cool
Heat
FAN
N Hi
Med
Low
LVAL1
VAL2
GND
L
N
2-pipe 3-wire valve FCU
2管制风机盘管+3线开关阀
100-240 VAC 50/60Hz
OCC
On Off
FAN
N Hi
Med
Low
LVAL1
VAL2
GND
L
N
2-pipe FCU with TiO2/ESP
2管制风机盘管+TiO2/ESP
100-240 VAC 50/60Hz
OCC
TiO2
ESP
Cool/
Heat
FAN
N Hi
Med
Low
LVAL1
VAL2
GND
L
N
2-pipe FCU with floor heating
2管制风机盘管+地暖
100-240 VAC 50/60Hz
OCC
Floor
Heater
Cool/
Heat
FAN
N Hi
Med
Low
LVAL1
VAL2
GND
L
N
Water source heat pump
水源热泵
100-240 VAC 50/60Hz
OCC
CMP
RV
RV = REVERSING VALVE CMP = COMPRESSOR
FAN
N Hi
Med
Low
LVAL1
VAL2
GND
L
N
Boiler/Floor heater
锅炉/地暖
100-240 VAC 50/60Hz
OCC
Boiler/
Floor heater
N Hi
Med
Low
LVAL1
VAL2
