MODEL TCSC SIZES 07-15

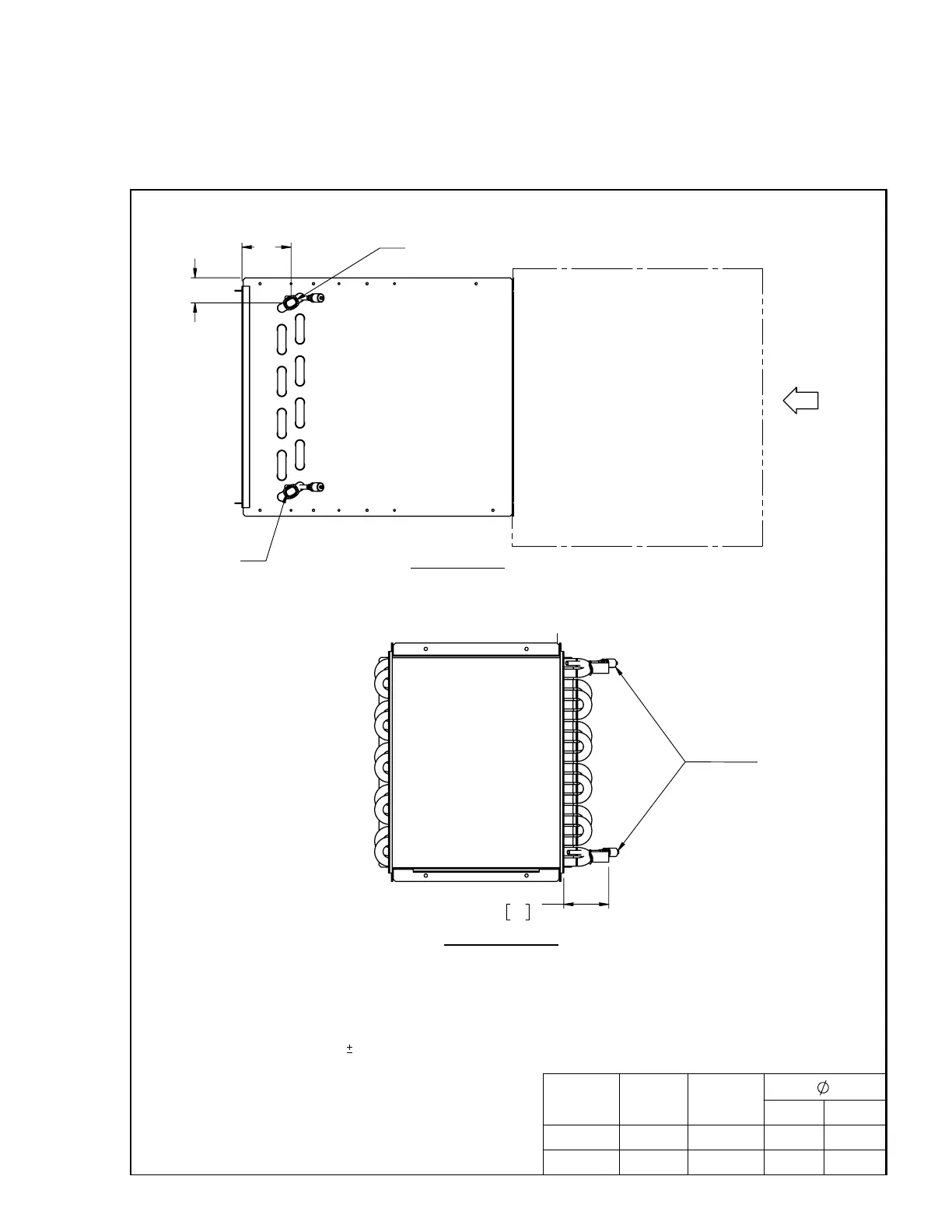

1/2” Hot Water Coil Connections, Two Row, Two Circuit
B
A
AIR
SIDE VIEW
LEFT HAND SHOWN
RIGHT HAND OPPOSITE
RETURN (OUT)
SUPPLY (IN)
2 5/8"
68
FRONT VIEW
LEFT HAND SHOWN
RIGHT HAND OPPOSITE
(OPTIONAL)
TWO ROW TWO CIRCUIT COILS ONLY
NOTES:
1. All dimensions are in inches [millimeters]
2. All dimensions may vary in
1/2 [13mm].
Metric values are soft conversion.
3. All drawings are subject to change without notice.
4. Connection Size: 5/8 ODM (1/2" NOM.)
5. This sheet applies to two row two circuit only.
For multiple circuit coils refer sheet no 1.
For single circuit coils refer sheet no 2.
Unit Size
Coil
Rows
No. of
Circuits
(1/2"
Coil)
A B
7/10
2 2
5-3/4"
[146]
2-7/8"
[74]
15
2 2
1-1/2"
2-7/8"
[74]
PAGE 3 OF 3
10-80050-J
C
9/29/2021
DIMENSIONS ARE IN INCH [MM] FORMAT
+/- 1/8 [3] UNLESS OTHERWISE NOTED
DRAWING NO
TITLE:
REV
SHEET
DATE
ALL DRAWINGS ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE
DO NOT SCALE DRAWING
SUBMITTAL DRAWING
MODEL TCSB, TCSQ & TCSC
HOT WATER,1/2" DIA COIL CONNECTIONS
THIS DRAWING CONTAINS PROPRIETARY DATA. UNAUTHORIZED DISCLOSURE,
REPRODUCTION, OR USE IS STRICTLY PROHIBITED WITHOUT WRITTEN PERMISSION.
UNCONTROLLED WHEN PRINTED
