Johnson Controls TCSC Series - Valve Calibration Charts; Probe Differential Pressure vs. Airflow

JOHNSON CONTROLS
41
FORM 130.13-NOM8 (1021)

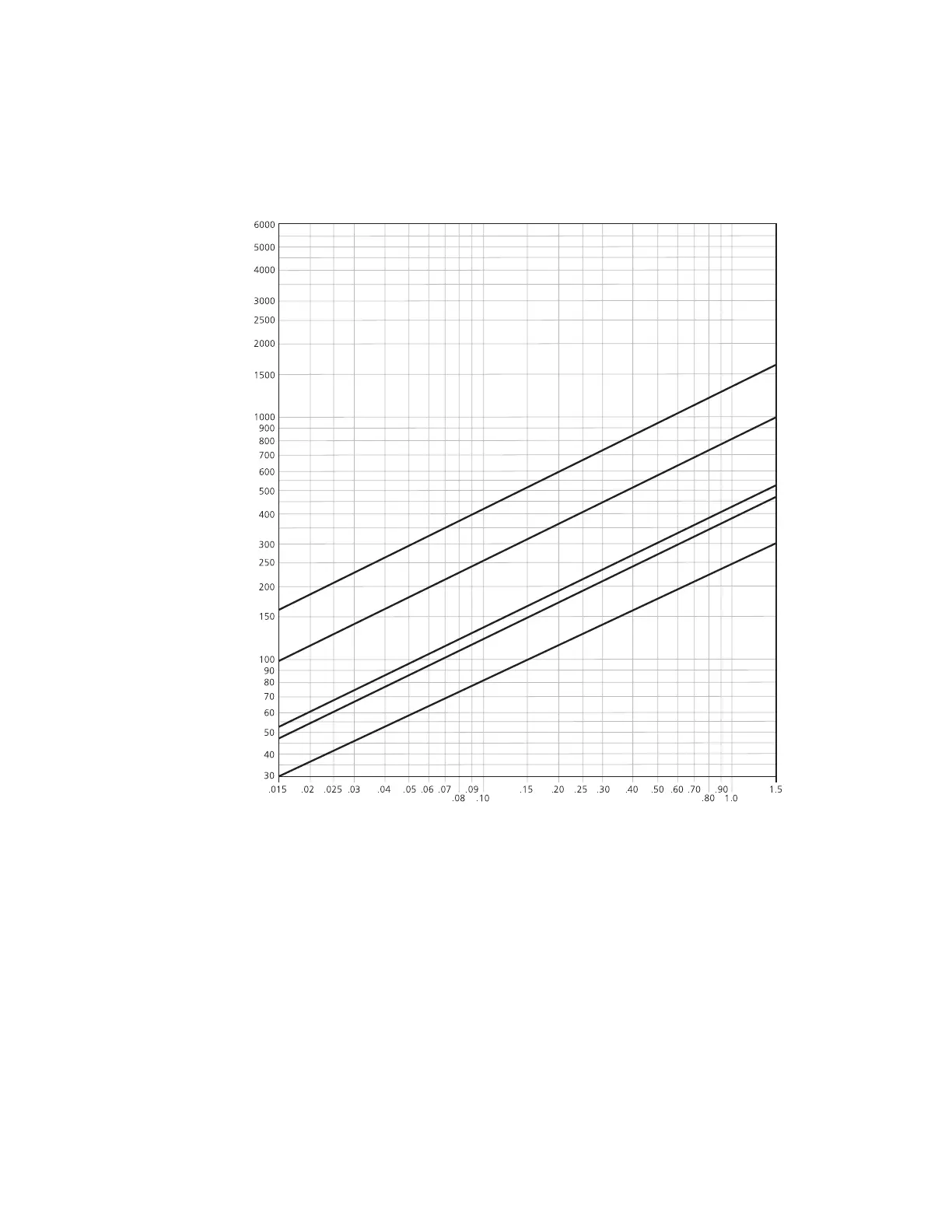

PROBE DIFFERENTIAL PRESSURE (INCHES W.G.)
AIRFLOW (CFM)
SIZE 0407, 041
0
SIZE 0507, 051
0
SIZE 08
15, 0820, 0
823
SIZE 1015,
1020, 102
3
SIZE 0607, 0610, 0615, 0620, 0623
VALVE CALIBRATION CHARTS
APPLICABLE CALIBRATION CHARTS ARE AFFIXED TO EACH UNIT, AND MAY ALSO BE
OBTAINED BY CONTACTING YOUR JOHNSON CONTROLS REPRESENTIVE.
