Johnson Controls TCSC Series User Manual

JOHNSON CONTROLS
17
FORM 130.13-NOM8 (1021)
MODEL TCSC SIZES 07-23

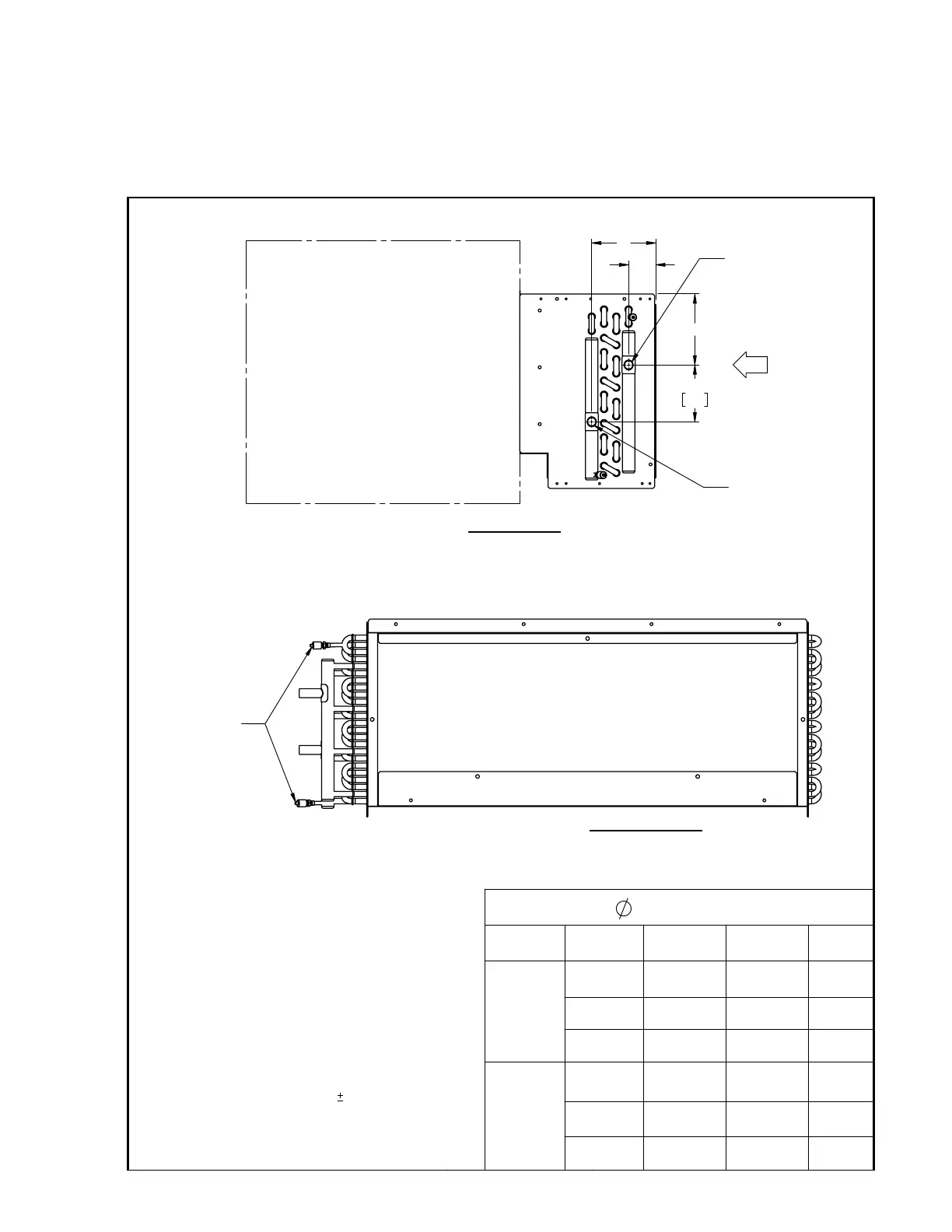

3/8” Chilled Water Coil Connections, 2-4 Rows
FRONT VIEW
LEFT HAND SHOWN
RIGHT HAND OPPOSITE
(OPTIONAL)
A
4"
102
C
B
AIR
RETURN(OUT)
SUPPLY(IN)
SIDE VIEW
LEFT HAND SHOWN
RIGHT HAND OPPOSITE
NOTES:
1. All dimensions are in inches [millimeters]
2. All dimensions may vary in
1/2 [13mm].
Metric values are soft conversion.
3. All drawings are subject to change without notice.
4. Connection Size: 5/8 ODM (1/2" NOM).
3/8'' COILS
Unit Type Coil Rows
A B C
7/10
2
5"
[127]
3 5/8"
[92]
2 3/4"
[70]
3
5"
[127]
3 5/8"
[92]
1 7/8"
[48]
4
5"
[127]
4 1/2"
[114]
1 7/8"
[48]
12/15/20/23
2
6"
[152]
3 5/8"
[92]
2 3/4"
[70]
3
6"
[152]
3 5/8"
[92]
1 7/8"
[48]
4
6"
[152]
4 1/2"
[114]
1 7/8"
[48]
PAGE 1 OF 1
10-80180-J A
DIMENSIONS ARE IN INCH [MM] FORMAT
+/- 1/8 [3] UNLESS OTHERWISE NOTED
DRAWING NO
TITLE:
REV
SHEET
DATE
ALL DRAWINGS ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE
DO NOT SCALE DRAWING
SUBMITTAL DRAWING
MODEL TCSC, CHILLED WATER, 3/8"
DIA COIL CONNECTIONS 2 - 4 ROWS
UNCONTROLLED WHEN PRINTED
DIMENSIONS ARE IN INCH [MM] FORMAT
+/- 1/8 [3] UNLESS OTHERWISE NOTED
DRAWING NO
TITLE:
REV
SHEET
DATE
ALL DRAWINGS ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE
DO NOT SCALE DRAWING
SUBMITTAL DRAWING
THIS DRAWING CONTAINS PROPRIETARY DATA. UNAUTHORIZED DISCLOSURE,
REPRODUCTION, OR USE IS STRICTLY PROHIBITED WITHOUT WRITTEN PERMISSION.
UNCONTROLLED WHEN PRINTED
