Johnson Controls TEC3000 Series Installation Guide

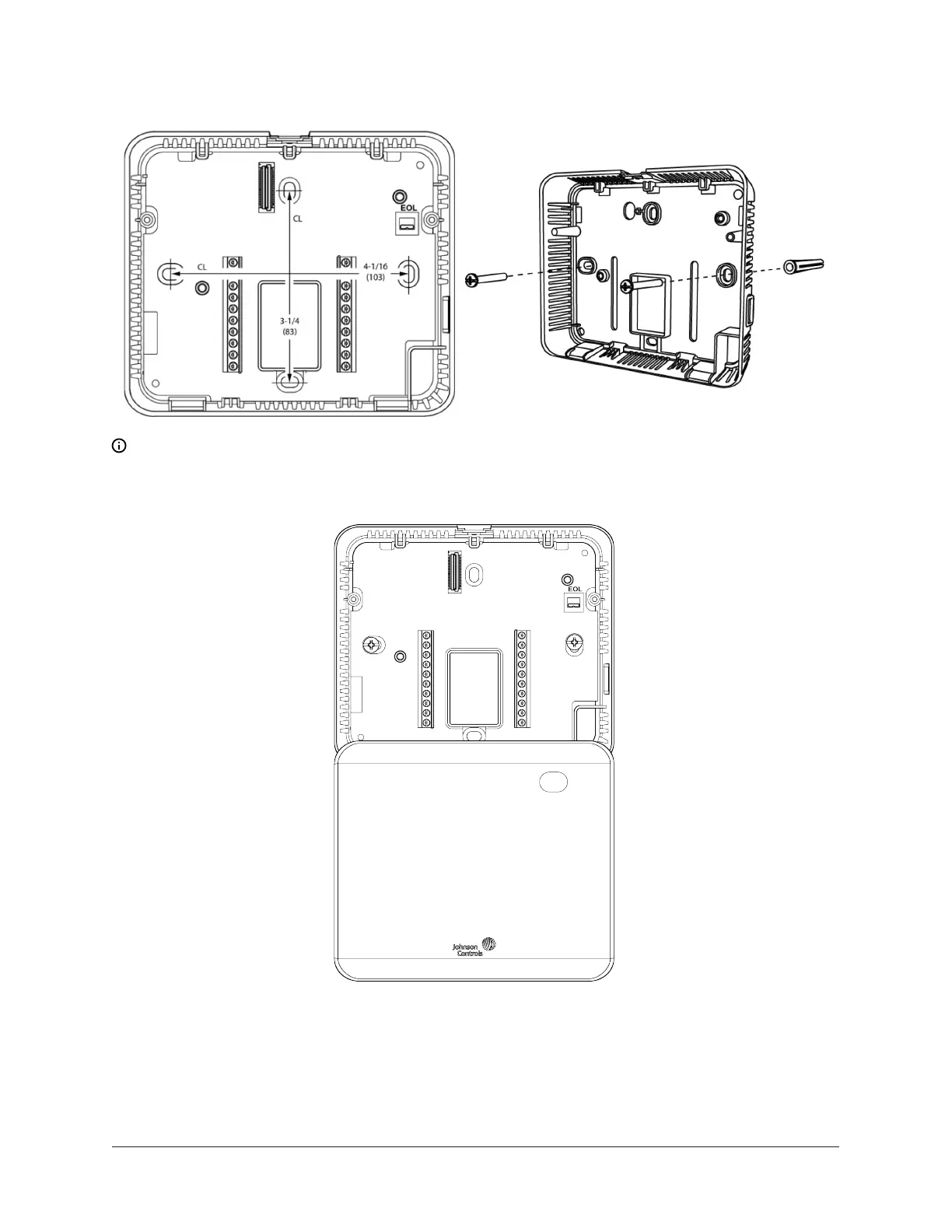

Figure 3: Mounting hole locations, dimensions, in. (mm) (left) andsecuring the thermostat
controller mounting base to the wall (right)
Note: When the unit is mounted on the wall, you can hang the front cover on the end of the
back cover as illustrated in Figure 4.
Figure 4: Hanging the thermostat controller front cover
Wiring
About this task:
When an existing thermostat controller is replaced, remove and label the wires to identify the ter-
minal functions.
TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide6
