24 VFD66 User Guide
www.johnsoncontrols.com Issue Number: 2
6.3 Selecting and changing parameters

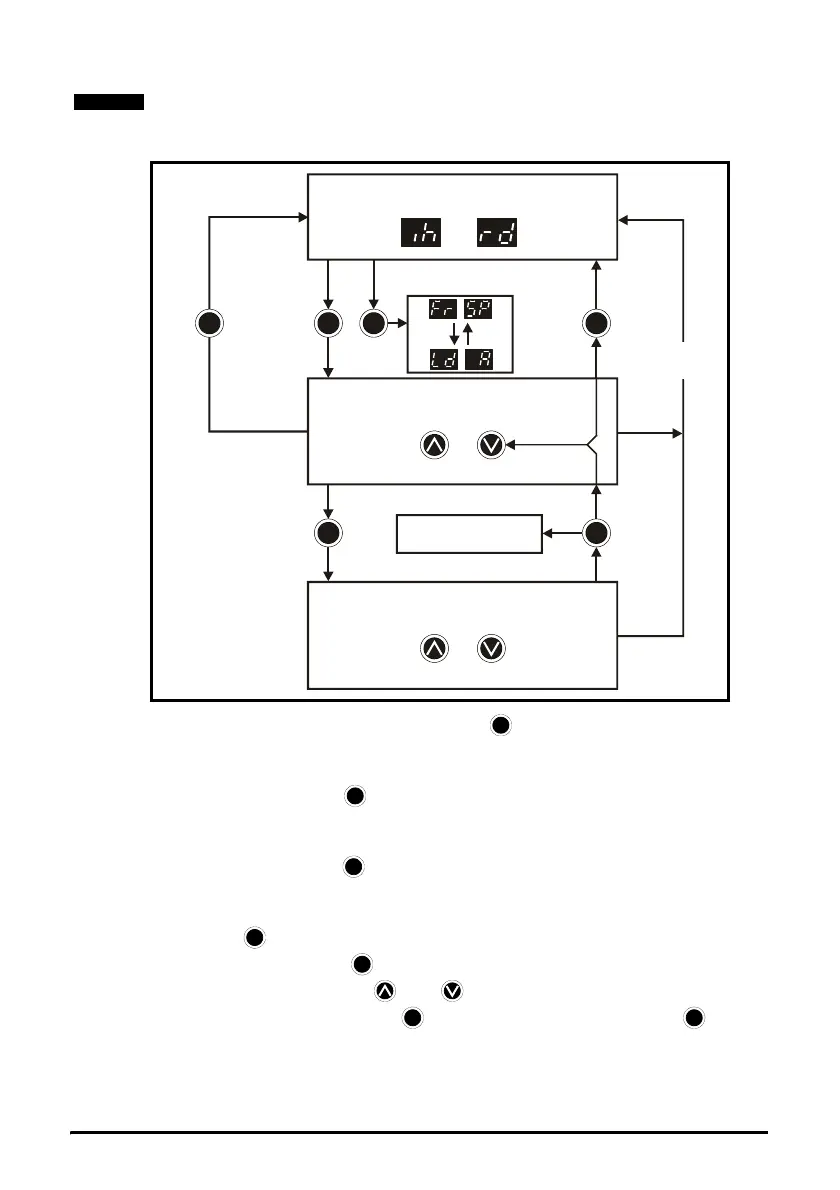

Figure 6-2
When in Status mode, pressing and holding the MODE key for 2 seconds will
change the display from displaying a speed indication to displaying load indication (or
output current) and vice versa.
Pressing and releasing the MODE key will change the display from status mode to
parameter view mode. In parameter view mode, the display flashes between the
parameter number and the value of that parameter.
Pressing and releasing the MODE key again will change the display from parameter
view mode to parameter edit mode. In parameter edit mode, the display shows the
value in the parameter.
Pressing the MODE key in parameter edit mode will return the drive to the
parameter view mode. If the MODE key is pressed again then the drive will return to
status mode, but if either of the up or down keys are pressed to change the
parameter being viewed before the MODE key is pressed, pressing the MODE
key will change the display to the parameter edit mode again. This allows the user to
very easily change between parameter view and edit modes during commissioning /
start up of the drive.
This procedure is written from the first power up of the drive and assumes no terminals
have been connected, no parameters have been changed and no security has been set.
NOTE
M
STATUS MODE
or
PARAMETER VIEW MODE
Select parameter to view
orPress
Parameter number displayed
PARAMETER EDIT MODE
Change parameter value
or
Press
Parameter value displayed
M
M
Press and
hold for 2s
M
M
Parameters
saved
Press and
release
M
Hold
for 2s
4 mins
timeout
/
/
Press and
release
Press and
release
Press and
release
M
M
M
M
M
M
M
