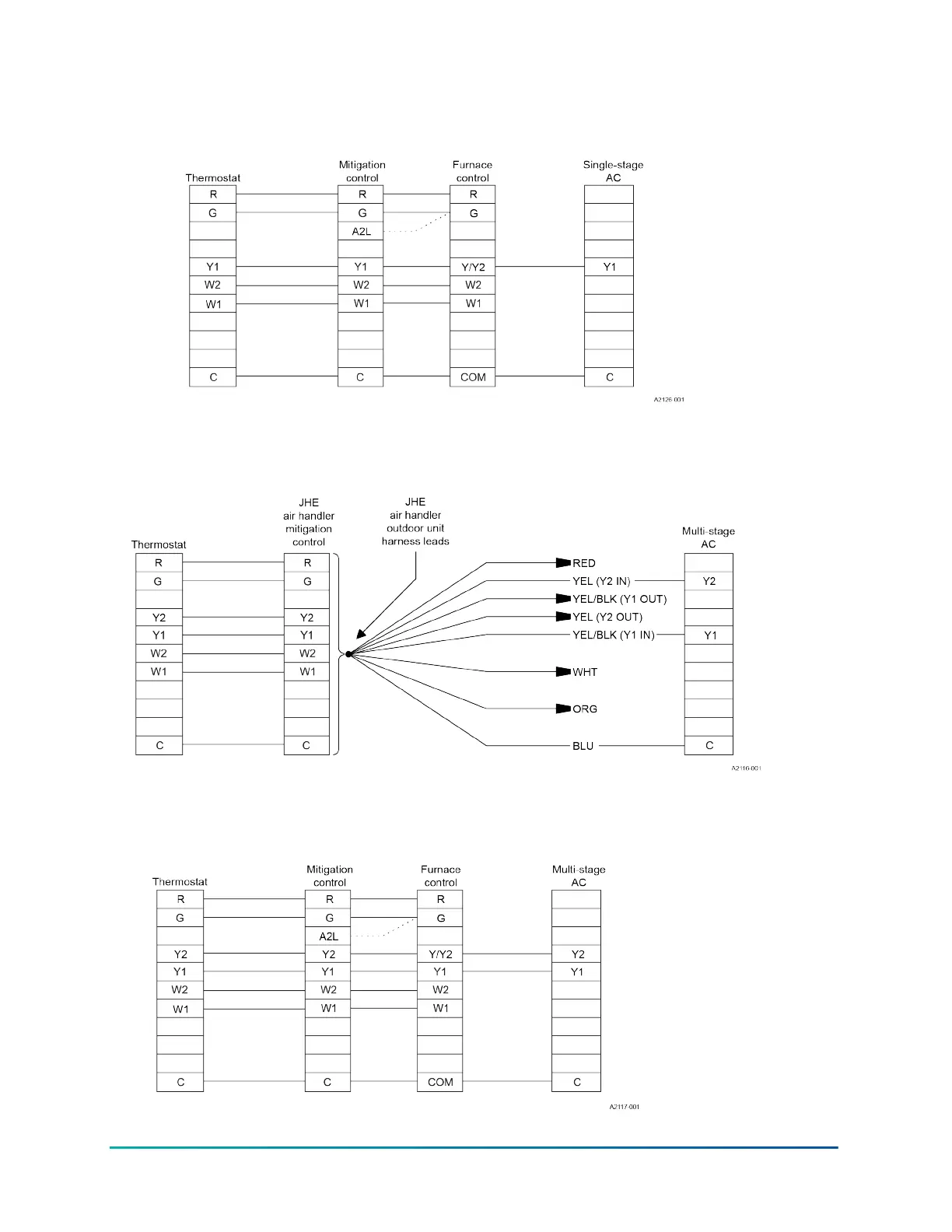

Figure 18: Control wiring - standard ECM gas furnace and standard single-stage air
conditioner - conventional wiring
Figure 19: Control wiring - standard ECM air handler and standard multi-stage air conditioner
- conventional wiring
Figure 20: Control wiring - standard ECM gas furnace and standard multi-stage air
conditioner - conventional wiring
37Installation Manual: R-454B Outdoor Split-System Air Conditioner
Johnson Controls Ducted Systems
