Connector Wiring Diagram
DomesticAirConditioner
9

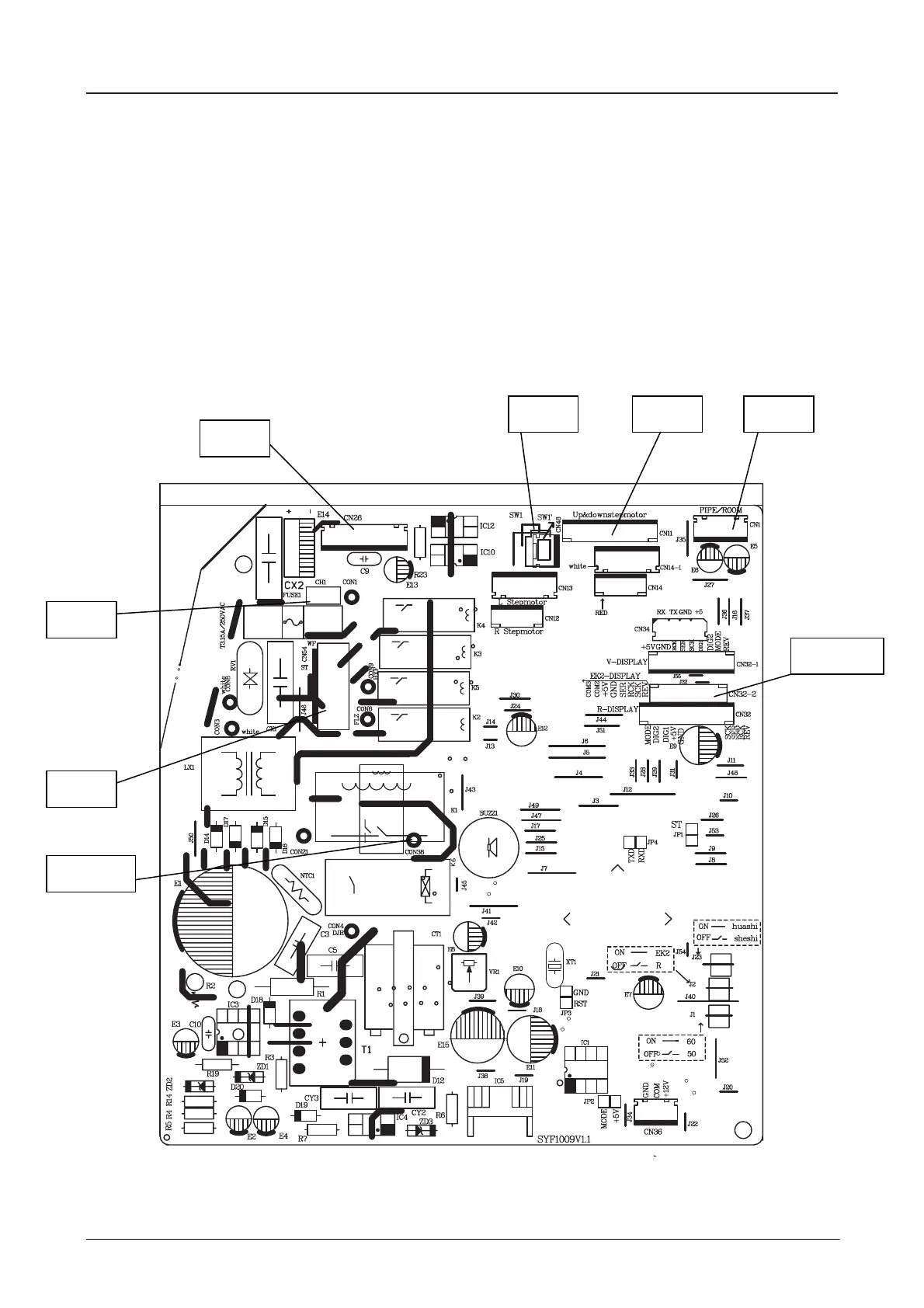

4.Printed Circuit Board Connector Wiring Diagram
4.1 Indoor unit
Connectors Indoor PCB
1)CN26 connector for DC fan motor.
2)CN11 connector for step motor.
3)CN32-2 connector for receiver display.
4)CN54 connector for power line N.
5)CN1 connector for ambient temp. sensor and piping temp.sensor.
6)CN48 connector for Emergency switch.
7)CH1 connector for power line L.
8)CON38 connector for compressor control.
CN48
CN26
CH1
CN54
CON38
CN11 CN1
CN32-2
YSCC24FSAADG
