Johnson Controls York YCSE 040 User Manual

YCRE 040, 050, 060, 080, 100 Models
2-6
035-21786-100 Rev. 1 (0909)

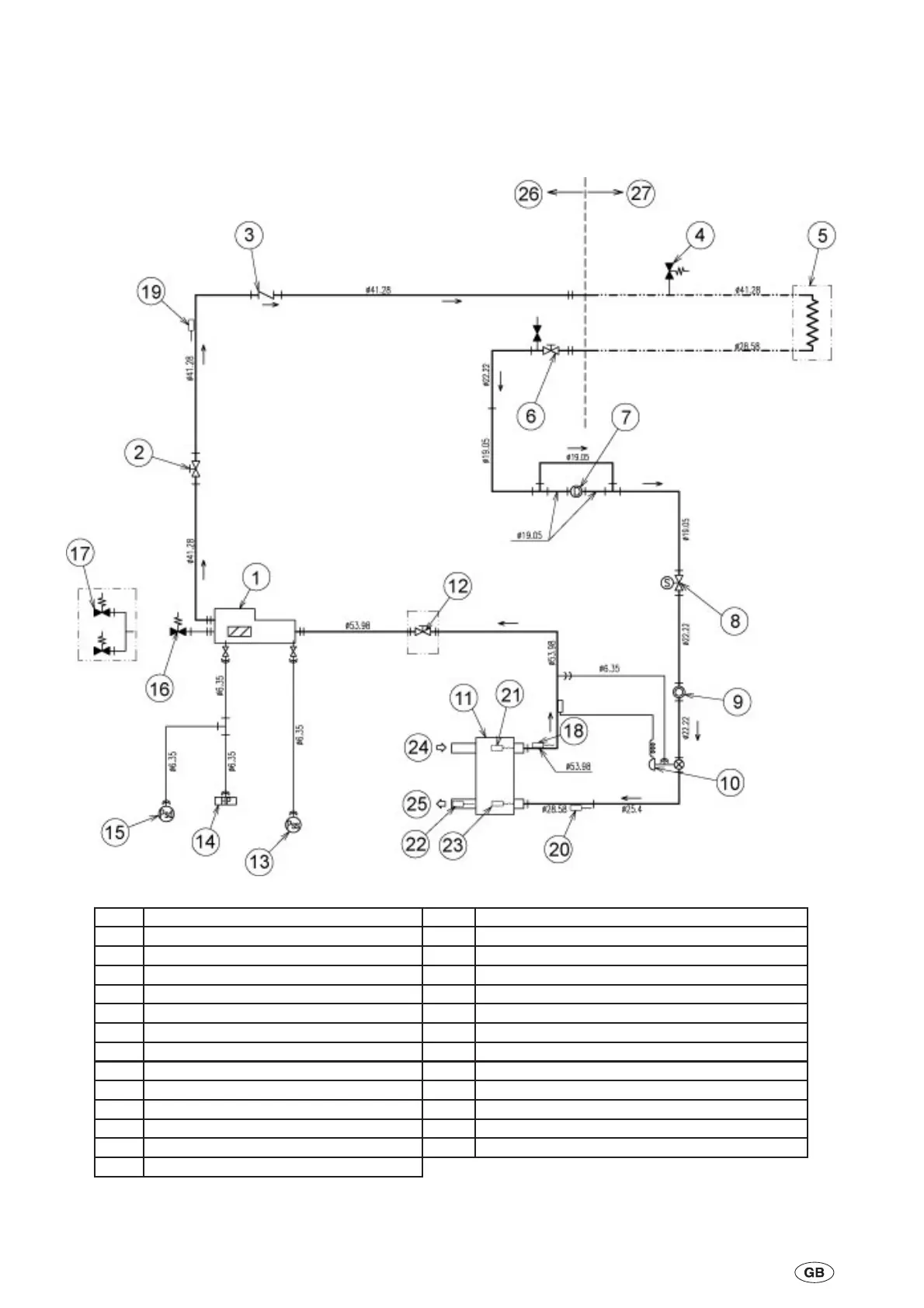

1 Compressor 15 High Pressure Sensor
2 Stop Valve 16 Compressor Safety Valve (Option)
3 Check Valve 17 Compressor Dual Safety Valve (Option)
4 Pressure Relief Valve (Field Supplied) 18 Thermistor - Suction
5 Remote Condenser (Field Supplied) 19 Thermistor - Discharge
6 Stop Valve 20 Thermistor - Evaporator
7 Drier 21 Thermistor - Evaporator Water Inlet
8 Solenoid Valve 22 Thermistor - Evaporator Water Oulet
9 Sight Glass 23 Thermistor - Evaporator Water Oulet
10 Expansion Valve 24 Evaporator Water Inlet
11 Evaporator 25 Evaporator Water Outlet
12 Stop Valve (Option) 26 YCRE
13 Low Pressure Sensor 27 Field Supplied
14 High Pressure Switch

Johnson Controls York YCSE 040 Specifications

General

Brand	Johnson Controls
Model	York YCSE 040
Category	Chiller
Language	English
