3 TRANSPORTATION, HANDLING AND
STORAGE
3.1 Delivery and Storage
To ensure consistent quality and maximum reliability, all
units are tested and inspected before leaving the
factory. Units are shipped completely assembled and
containing refrigerant under pressure. Units are
shipped without export crating unless this has been
specified on the Sales Order.
If the unit is to be put into storage, before installation, the
following precautions should be observed:
Ensure that all openings, such as water connections,
are securely capped.
Do not store where exposed to ambient air
temperatures exceeding 42°C.
The unit should be stored in a location where there is
minimal activity to limit the risk of accidental physical
damage.
To prevent inadvertent operation of the pressure relief
devices the unit must not be steam cleaned.
It is recommended that the unit is periodically inspected
during storage.
3.2 Inspection
Remove any transit packing and inspect the unit to
ensure that all components have been delivered and
that no damage has occurred during transit. If any
damage is evident, it should be noted on the shipment
documentation and a claim entered according to the
instructions given.
Major damage must be reported immediately to your
local Johnson Controls representative.
3.3 Moving the Unit
Before moving the unit, ensure that the installation site is
suitable for installing the unit and is capable of
supporting the weight of the unit and all associated
services.
The units are designed to be moved using either lifting
chains or rollers .
Lifting by Crane/Hoist
Attach the lifting chains to the lifting lugs on each corner
of the unit framework. A spreader frame should be used
to prevent damage to the unit from the lifting chains.
The unit must only be lifted at the points
provided.
3-1
035-21786-100 Rev. 1 (0909)

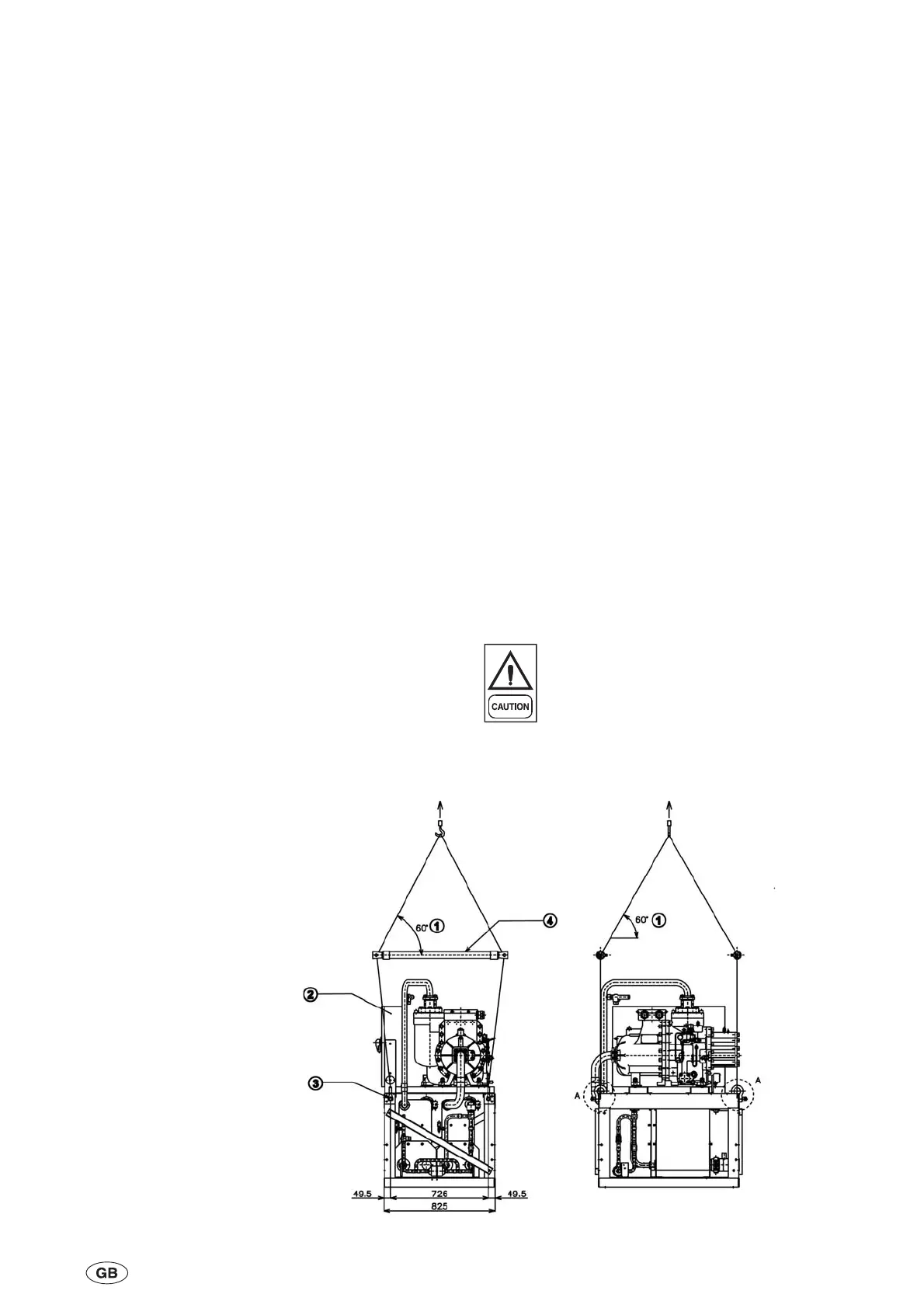

1 60° (or more)
2 Power Section
3 4 x Rigging Bolts
4 Spreader Bars
