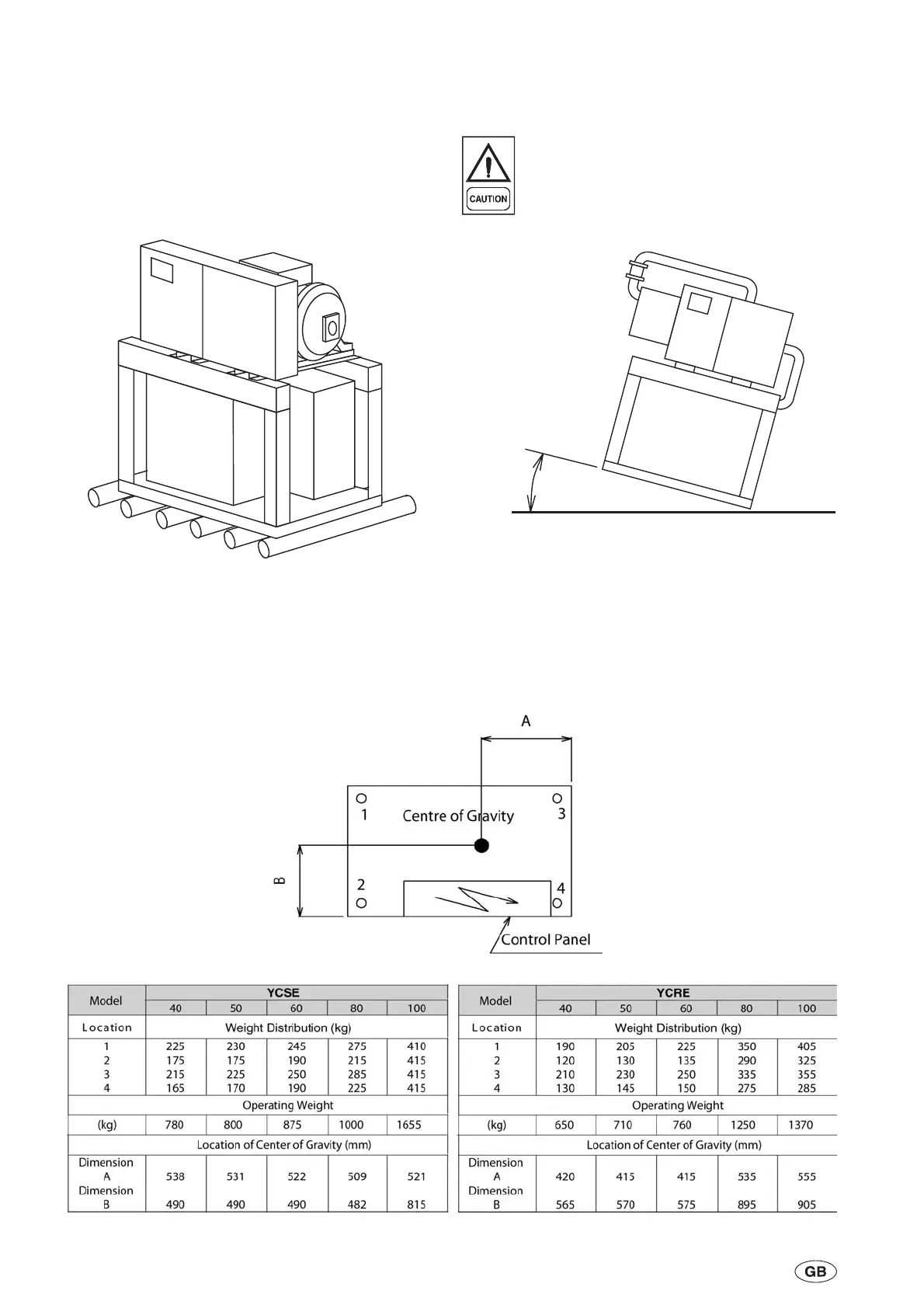

Moving the Unit with Rollers
Use at least 6 equal sized rollers under the base frame.
Each roller must support both outer frames. Ensure the
unit is balanced evenly on all the rollers.
3.4 Lifting Weights
For details of weights and weight distribution refer to
Section 9.
3.5 Weight Distribution & Centre of Gravity
To prevent the unit tipping over do not tilt the
unit more than 15°.
3-2
035-21786-100 Rev. 1 (0909)
<15°
