Johnson Controls York YHAU-C User Manual

Table 1: Split shipment dimensions and weight - EXE series
Singleeffect steamabsorption chiller(EXEseries)
Main shell unit Solution heat exchanger unit
YHAU-C
L1 ft (m) W1 ft (m) H1 ft (m) Weight lb (ton) L2 ft (m) W2 ft (m) H2 ft (m) Weight lb (ton)
30EXET 5.91 (1.8) 4.59 (1.4) 5.58 (1.7) 5400 (2.7) 5.58 (1.7) 3.94 (1.2) 3.28 (1) 1600 (0.8)
40EXET 6.89 (2.1) 4.59 (1.4) 5.58 (1.7) 6000 (3) 6.56 (2) 3.94 (1.2) 3.28 (1) 1600 (0.8)
50EXET 8.20 (2.5) 4.59 (1.4) 5.58 (1.7) 7200 (3.6) 7.87 (2.4) 3.94 (1.2) 3.28 (1) 1600 (0.8)
65EXET 10.17 (3.1) 4.59 (1.4) 5.58 (1.7) 8200 (4.1) 9.84 (3) 3.94 (1.2) 3.28 (1) 1600 (0.8)
80EXET 6.89 (2.1) 5.91 (1.8) 6.89 (2.1) 9600 (4.8) 6.89 (2.1) 5.25 (1.6) 3.28 (1) 1600 (0.8)
100EXET 8.53 (2.6) 5.91 (1.8) 6.89 (2.1) 11200 (5.6) 8.53 (2.6) 5.25 (1.6) 3.28 (1) 1600 (0.8)
130EXET 10.17 (3.1) 5.91 (1.8) 6.89 (2.1) 12600 (6.3) 10.17 (3.1) 5.25 (1.6) 3.28 (1) 2000 (1)
160EXET 12.14 (3.7) 5.91 (1.8) 6.89 (2.1) 14800 (7.4) 11.81 (3.6) 5.25 (1.6) 3.28 (1) 2200 (1.1)
200EXET 14.76 (4.5) 5.91 (1.8) 6.89 (2.1) 17200 (8.6) 14.44 (4.4) 5.25 (1.6) 3.28 (1) 2400 (1.2)
255EXET 10.83 (3.3) 7.55 (2.3) 8.86 (2.7) 20800 (10.4) 10.50 (3.2) 6.89 (2.1) 3.28 (1) 3800 (1.9)
320EXET 12.80 (3.9) 7.55 (2.3) 8.86 (2.7) 24400 (12.2) 12.47 (3.8) 6.89 (2.1) 3.28 (1) 3800 (1.9)
400EXET 15.42 (4.7) 7.55 (2.3) 8.86 (2.7) 28000 (14) 15.09 (4.6) 6.89 (2.1) 3.28 (1) 3800 (1.9)
500EXET 18.70 (5.7) 7.55 (2.3) 8.86 (2.7) 32600 (16.3) 18.37 (5.6) 6.89 (2.1) 3.28 (1) 4800 (2.4)
Note: Allow additional time for: Installation - 1 day, Welding - 2 days, Pressure Test - 2 days,
Vacuuming - 2 days, Solution Charge - 1 day. Values can vary due to chiller size and site
conditions.

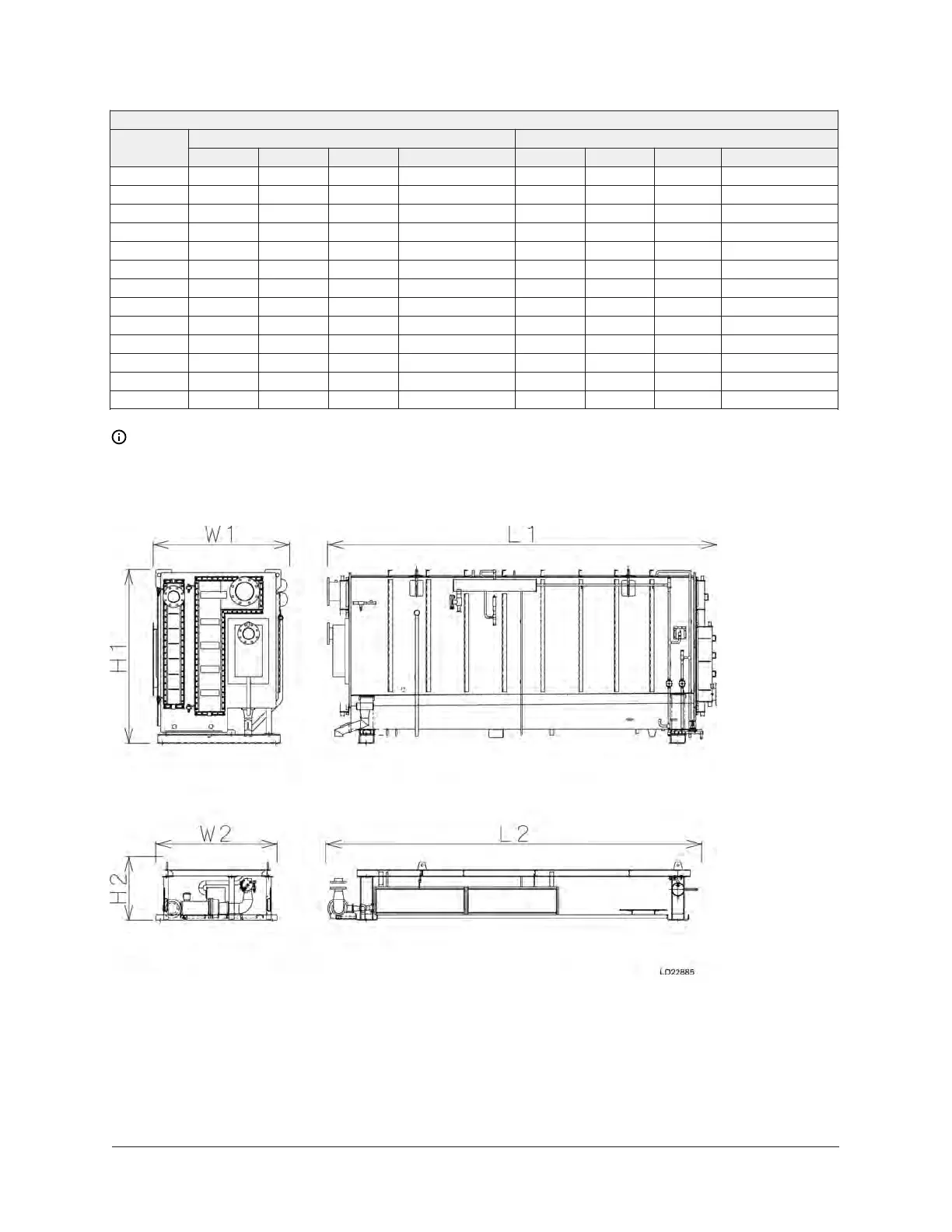

Figure 12: EXE series dimensions (split shipment)
YHAU-C Single Effect Steam-Fired Absorption Chiller32
