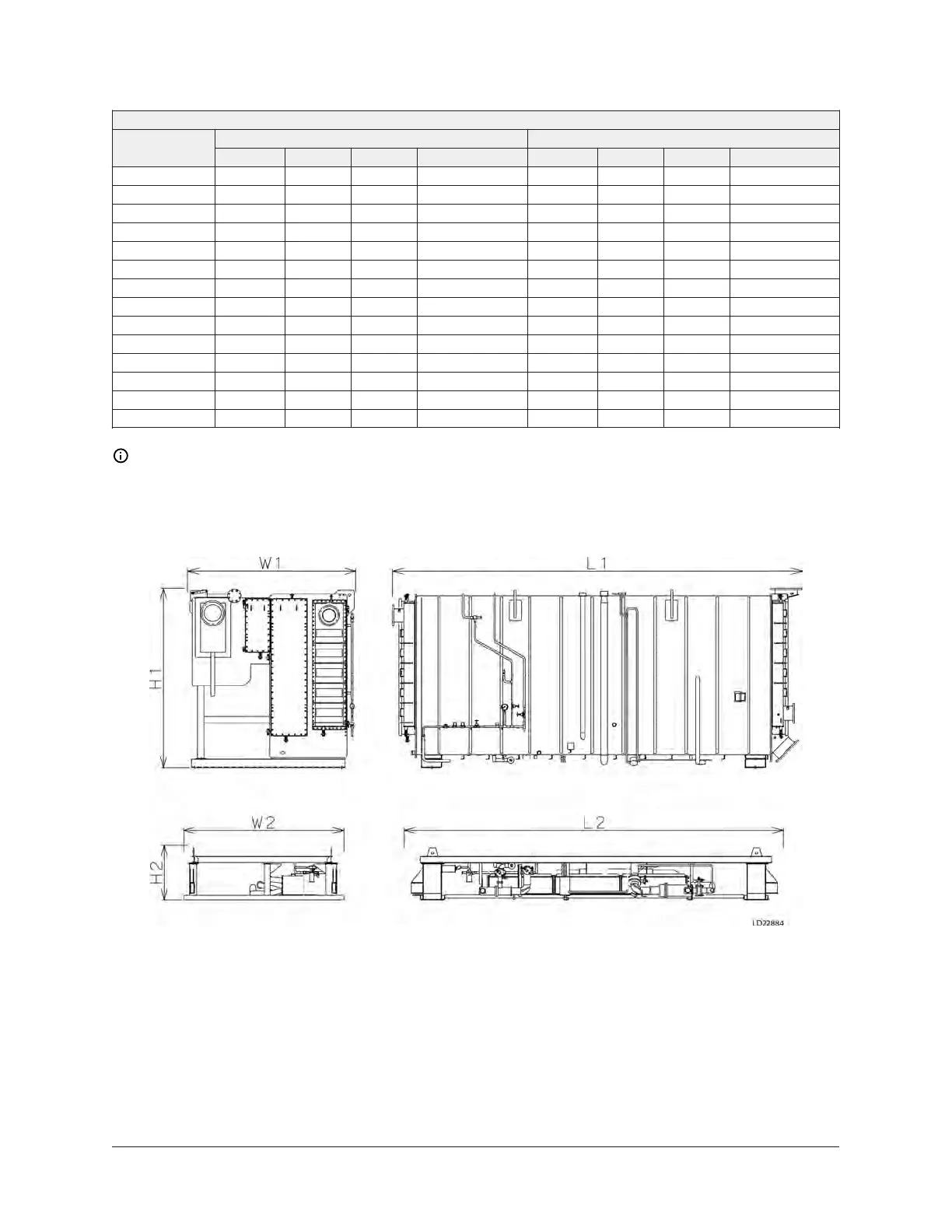

Table 2: Split shipment dimensions and weight - EXW series

Single effectsteam absorptionchiller(EXWseries)

Main shell unit Solution heat exchanger unit

YHAU-C

L1 ft (m) W1 ft (m) H1 ft (m) Weight lb (ton) L2 ft (m) W2 ft (m) H2 ft (m) Weight lb (ton)

630EXW2ST 18.04 (5.5) 9.02 (2.75) 9.51 (2.9) 37800 (18.9) 16.40 (5) 8.53 (2.6) 3.94 (1.2) 6000 (3)

700EXW2ST 19.69 (6.0) 9.02 (2.75) 9.51 (2.9) 40600 (20.3) 18.04 (5.5) 8.53 (2.6) 3.94 (1.2) 6200 (3.1)

800EXW2ST 21.98 (6.7) 9.02 (2.75) 9.51 (2.9) 43400 (21.7) 19.69 (6) 8.53 (2.6) 3.94 (1.2) 6600 (3.3)

900EXW2ST 23.95 (7.3) 9.02 (2.75) 9.51 (2.9) 48400 (24.2) 21.65 (6.6) 8.53 (2.6) 3.94 (1.2) 6800 (3.4)

1000EXW2ST 26.25 (8.0) 9.02 (2.75) 9.51 (2.9) 52200 (26.1) 23.95 (7.3) 8.53 (2.6) 3.94 (1.2) 7200 (3.6)

1120EXW4ST 22.97 (7.0) 10.83 (3.3) 11.15 (3.4) 75200 (37.6) 20.67 (6.3) 10.50 (3.2) 3.94 (1.2) 7400 (3.7)

1250EXW4ST 24.93 (7.6) 10.83 (3.3) 11.15 (3.4) 78400 (39.2) 22.31 (6.8) 10.50 (3.2) 3.94 (1.2) 8200 (4.1)

1400EXW4ST 26.90 (8.2) 10.83 (3.3) 11.15 (3.4) 82000 (41) 24.61 (7.5) 10.50 (3.2) 3.94 (1.2) 8800 (4.4)

1500EXW4ST 28.54 (8.7) 10.83 (3.3) 12.14 (3.7) 85600 (42.8) 26.25 (8) 10.50 (3.2) 3.94 (1.2) 9000 (4.5)

1600EXW4ST 30.18 (9.2) 10.83 (3.3) 12.14 (3.7) 88800 (44.4) 27.89 (8.5) 10.50 (3.2) 3.94 (1.2) 9400 (4.7)

1680EXW4ST 31.82 (9.7) 10.83 (3.3) 12.14 (3.7) 92800 (46.4) 29.53 (9) 10.50 (3.2) 3.94 (1.2) 9600 (4.8)

1800EXW4ST 33.46 (10.2) 10.83 (3.3) 12.14 (3.7) 96800 (48.4) 31.17 (9.5) 10.50 (3.2) 3.94 (1.2) 10400 (5.2)

1900EXW4ST 35.10 (10.7) 10.83 (3.3) 12.14 (3.7) 101000 (50.5) 32.81 (10) 10.50 (3.2) 3.94 (1.2) 11000 (5.5)

2000EXW4ST 36.75 (11.2) 10.83 (3.3) 12.14 (3.7) 105600 (52.8) 34.45 (10.5) 10.50 (3.2) 3.94 (1.2) 11200 (5.6)

Note: Allow additional time for: Installation - 1 day, Welding - 2 days, Pressure Test - 2 days,

Vacuuming - 2 days, Solution Charge - 1 day. Values can vary due to chiller size and site

conditions.

Figure 13: EXW series dimensions (split shipment)

33YHAU-C Single Effect Steam-Fired Absorption Chiller
