Table 3: Nozzle arrangements 30 - 500EXET
Nozzle location
Chilled water (CHW) Cooling water (COW) Steam
YHAU-C
Inlet Outlet Inlet Outlet Inlet Outlet
Odd pass B Odd pass B Odd pass B
30-500EXET A
Even pass A
A
Even pass A
A
Even pass A
Note: These images are representations of nozzle arrangements. Reference general
arrangement drawings for detailed nozzle locations for each specific unit.

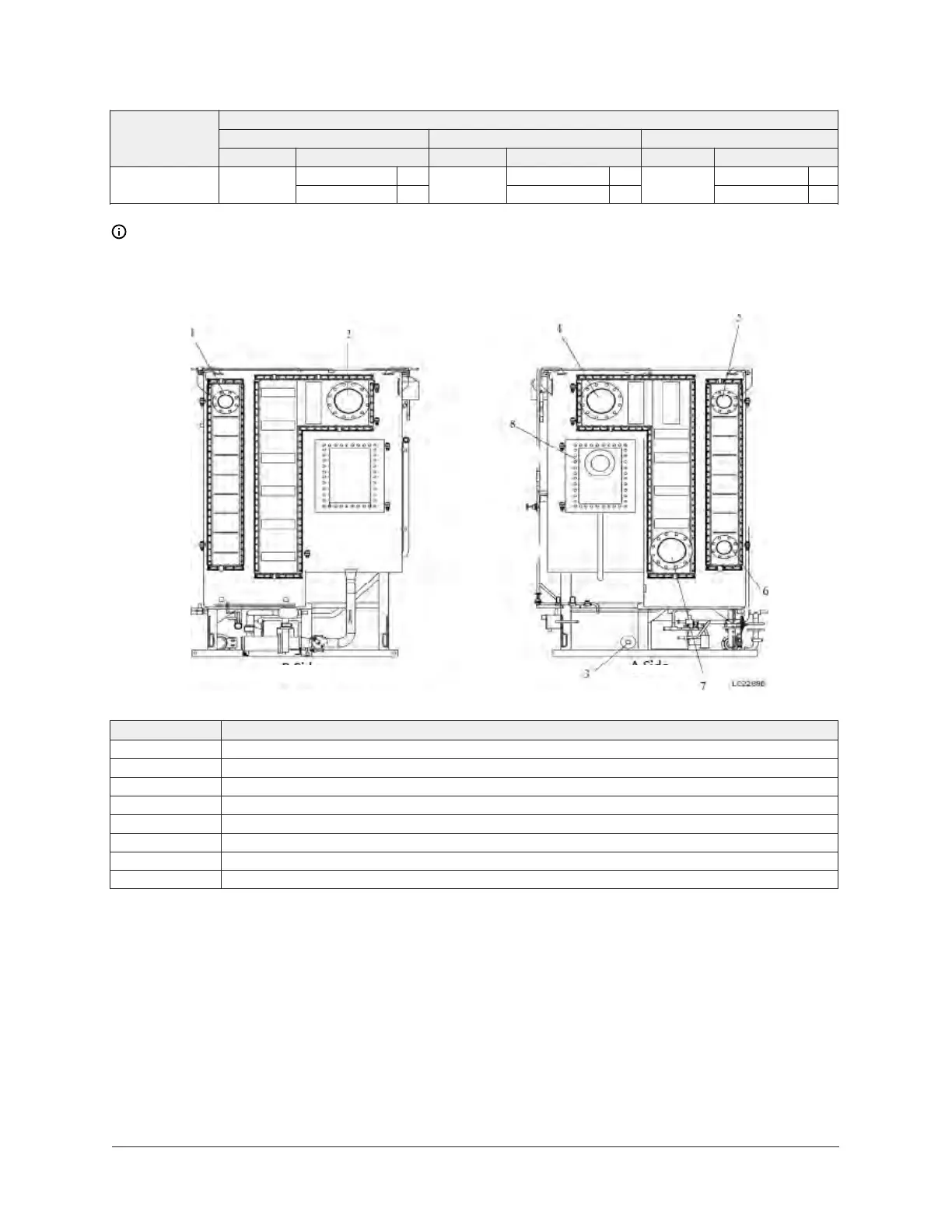

Figure 14: YHAU-C-30 - 500EXET nozzle locations
LDxxxxx
B Side
A Side
Item Description
1 Chilled water outlet (odd pass)
2 Cooling water outlet (odd pass)
3 Steam condensate drain (always on the bottom)
4 Cooling water outlet (even pass)
5 Chilled water outlet (even pass)
6 Chilled water inlet (always on the bottom)
7 Cooling water inlet (always on the bottom)
8 Steam inlet
YHAU-C Single Effect Steam-Fired Absorption Chiller34
