Johnson Controls York YHAU-C User Manual

Table 4: Nozzle arrangements 630EXW2ST-2000EXW4ST
Nozzle location
Chilled water (CHW) Cooling water (COW) Steam (SE)
YHAU-C
Inlet Outlet Inlet Outlet Inlet Outlet
Odd pass A Odd pass A Odd pass B
630EXW2ST-2000EXW4ST B
Even pass B
B
Even pass B
A
Even pass A
Note: These images are representations of nozzle arrangements. Reference general
arrangement drawings for detailed nozzle locations for each specific unit.

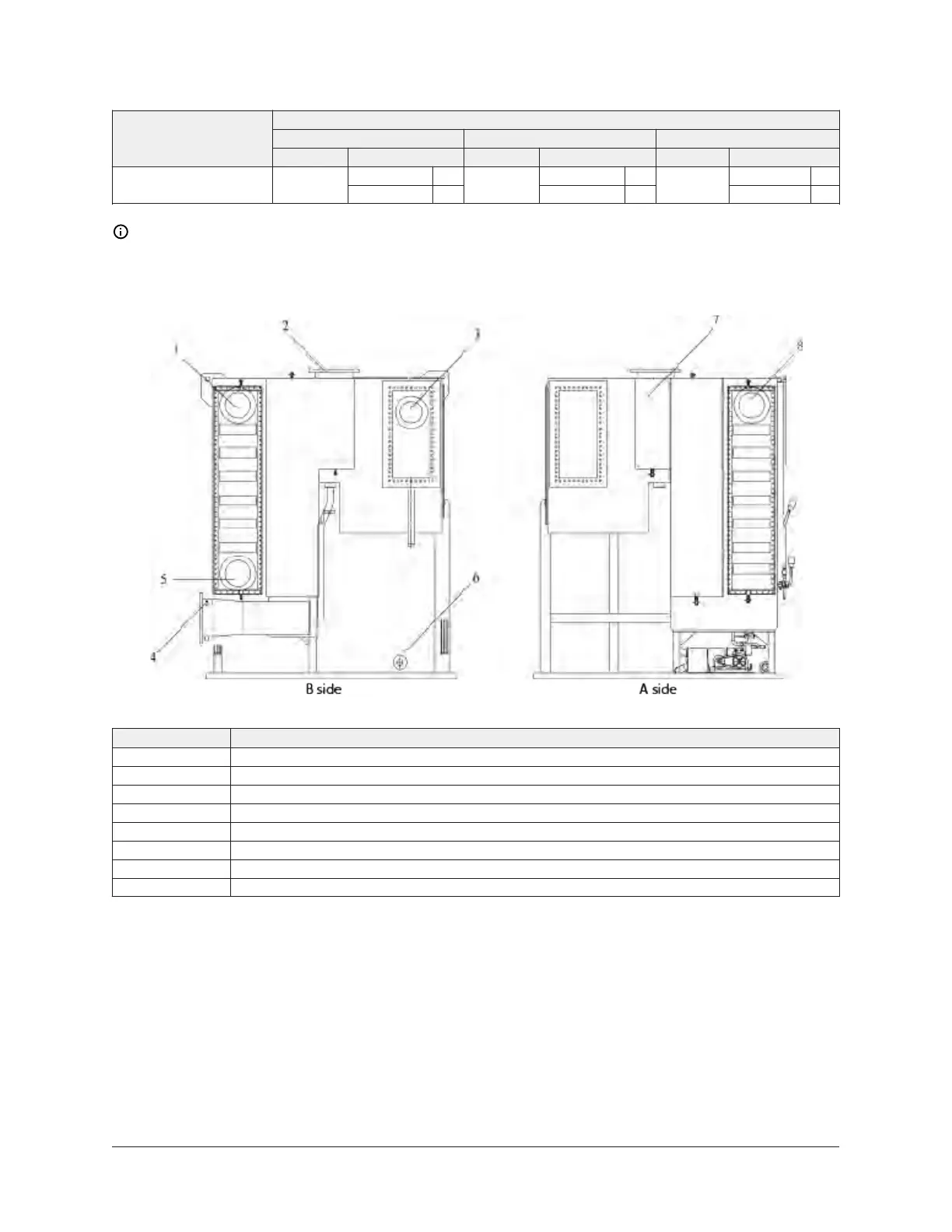

Figure 15: YHAU-C-630EXW2ST-2000EXW4ST nozzle locations
Item Description
1 Chilled water outlet (even pass)
2 Cooling water outlet (even pass)
3 Steam inlet
4 Cooling water inlet (always on the bottom)
5 Chilled water inlet (always on the bottom)
6 Steam condensate drain
7 Cooling water outlet (odd pass)
8 Chilled water outlet (odd pass)
35YHAU-C Single Effect Steam-Fired Absorption Chiller
