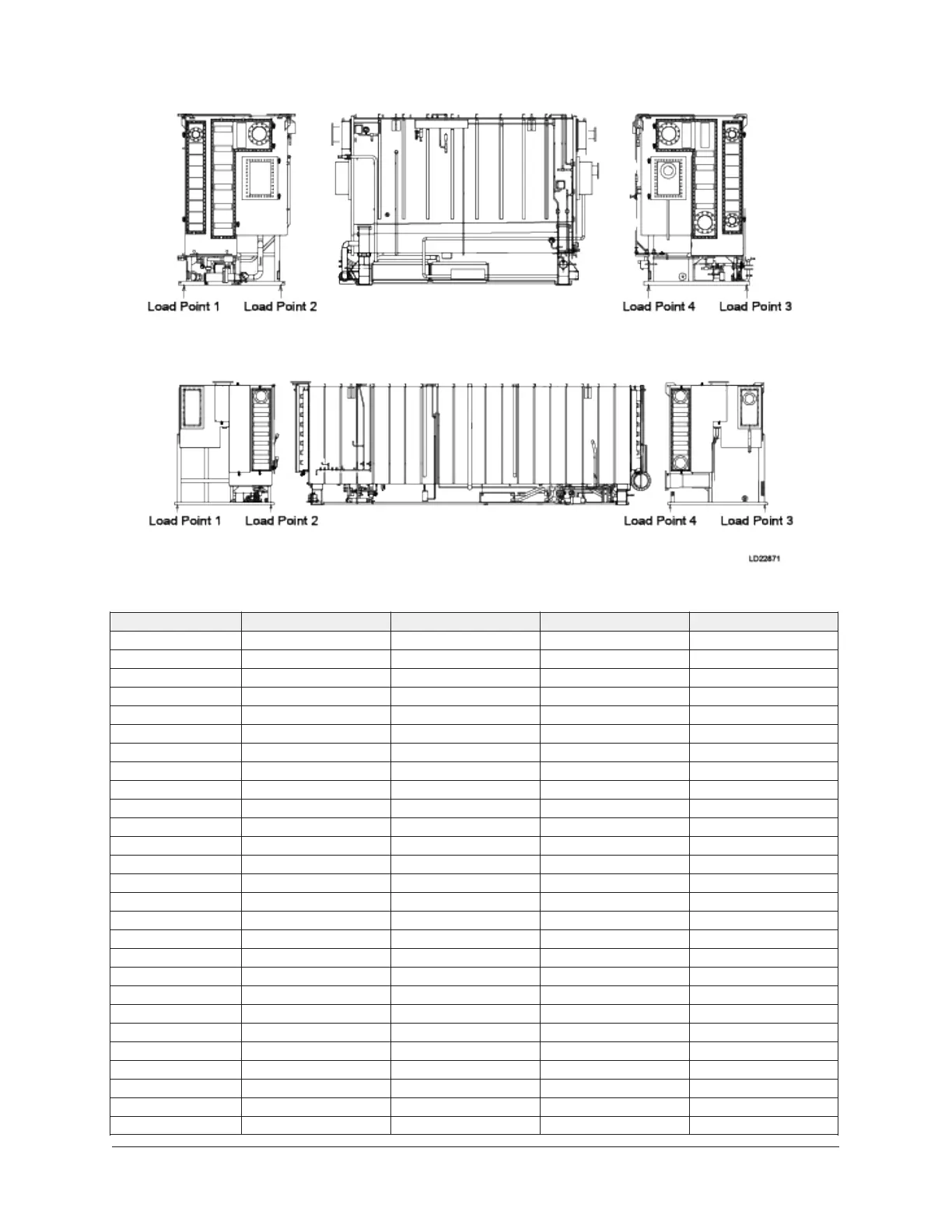

Figure 18: Load points for EXE and EXW units
Table 10: Load points for EXE and EXW units
Unit Load point 1 lb (ton) Load point 2 lb (ton) Load point 3 lb (ton) Load point 4 lb (ton)
30EXET 1380 (0.69) 1520 (0.76) 1380 (0.69) 1520 (0.76)
40EXET 1520 (0.76) 1680 (0.84) 1520 (0.76) 1680 (0.84)
50EXET 1760 (0.88) 1940 (0.97) 1760 (0.88) 1940 (0.97)
65EXET 2200 (1.1) 2400 (1.2) 1900 (0.95) 2100 (1.05)
80EXET 2400 (1.2) 2200 (1.1) 2400 (1.2) 2200 (1.1)
100EXET 2820 (1.41) 2580 (1.29) 2820 (1.41) 2580 (1.29)
130EXET 3460 (1.73) 3160 (1.58) 3020 (1.51) 2760 (1.38)
160EXET 3880 (1.94) 3520 (1.76) 3880 (1.94) 3520 (1.76)
200EXET 5120 (2.56) 4660 (2.33) 4100 (2.05) 3740 (1.87)
255EXET 5780 (2.89) 5780 (2.89) 5020 (2.51) 5020 (2.51)
320EXET 6360 (3.18) 6360 (3.18) 6360 (3.18) 6360 (3.18)
400EXET 8160 (4.08) 8160 (4.08) 6540 (3.27) 6540 (3.27)
500EXET 9940 (4.97) 9940 (4.97) 7660 (3.83) 7660 (3.83)
630EXW2ST 12620 (6.31) 9480 (4.74) 12620 (6.31) 9480 (4.74)
700EXW2ST 13600 (6.8) 10200 (5.1) 13600 (6.8) 10200 (5.1)
800EXW2ST 14680 (7.34) 11020 (5.51) 14680 (7.34) 11020 (5.51)
900EXW2ST 16220 (8.11) 12180 (6.09) 16220 (8.11) 12180 (6.09)
1000EXW2ST 17600 (8.8) 13200 (6.6) 17600 (8.8) 13200 (6.6)
1120EXW4ST 24200 (12.1) 18300 (9.15) 24200 (12.1) 18300 (9.15)
1250EXW4ST 25400 (12.7) 19200 (9.6) 25400 (12.7) 19200 (9.6)
1400EXW4ST 26800 (13.4) 20400 (10.2) 26800 (13.4) 20400 (10.2)
1500EXW4ST 28000 (14) 21200 (10.6) 28000 (14) 21200 (10.6)
1600EXW4ST 29200 (14.6) 22200 (11.1) 29200 (14.6) 22200 (11.1)
1680EXW4ST 30600 (15.3) 23200 (11.6) 30600 (15.3) 23200 (11.6)
1800EXW4ST 32000 (16) 24200 (12.1) 32000 (16) 24200 (12.1)
1900EXW4ST 33600 (16.8) 25400 (12.7) 33600 (16.8) 25400 (12.7)
2000EXW4ST 35200 (17.6) 26600 (13.3) 35200 (17.6) 26600 (13.3)
