10 Johnson Controls Ducted Systems

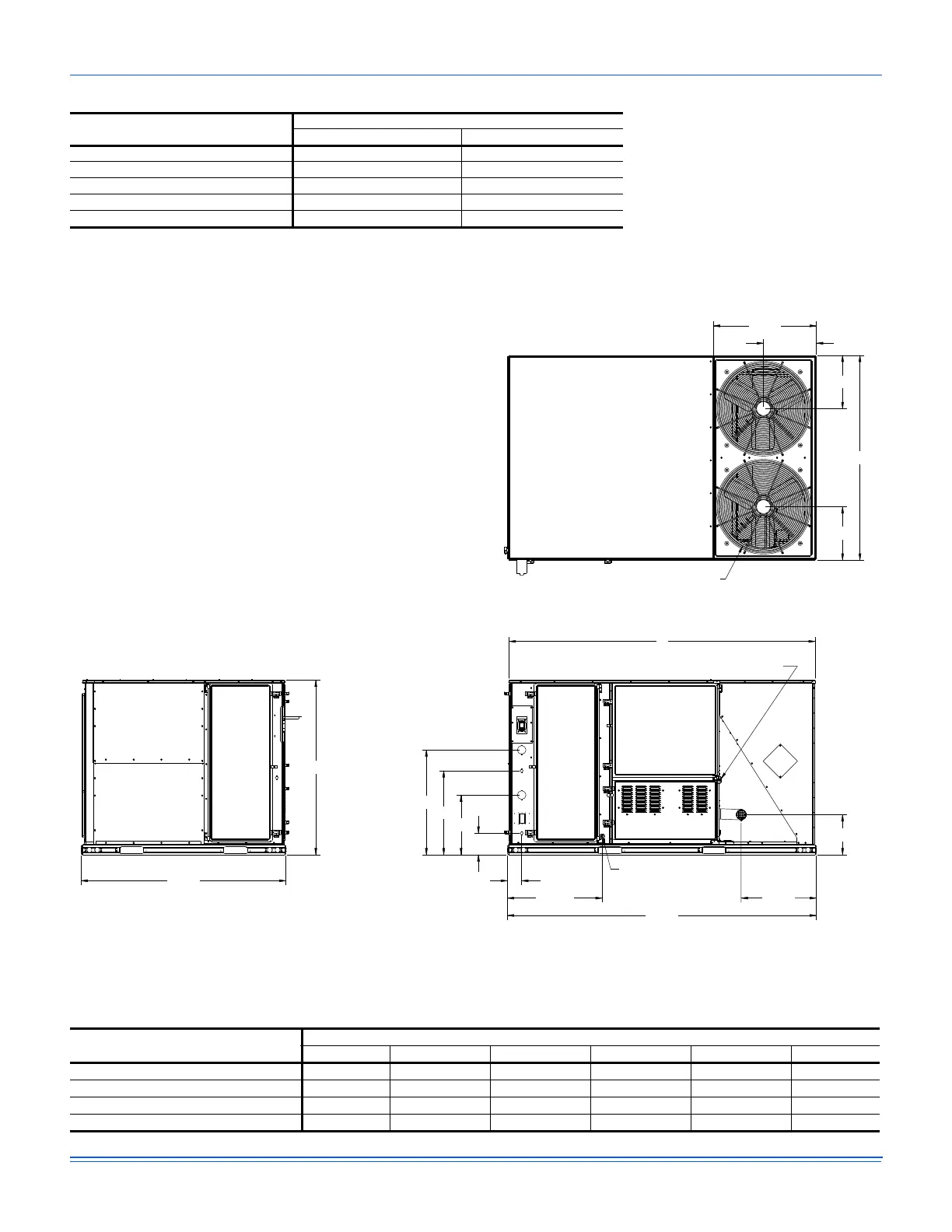

Figure 8: ZS-06 through -10 physical dimensions
Table 4:ZS-06 through -12 unit accessory weights
Unit accessory
Weight (lbs.)
Shipping Operating
Economizer 90 85
Power exhaust 40 35
Electric heat
1
1. The weight given is for the maximum heater size available (54KW).
49 49
Gas heat
2
2. The weight given is for the maximum number of tube heat exchangers available (8 tubes).
110 110
Variable frequency drive
3
3. The weight includes mounting hardware, controls, and the manual bypass option.
30 30
LEFT
A
59.00
C
D
E
F
4.19
27.31
89.00
21.19
11.38
15.38
59.00
15.38
29.69
15.25
FRONT
SEE DETAIL B
FOR DRAIN LOCATION
SEE DETAIL A FOR GAS INLET
B
2X Ø 24.38
Table 5:ZS-06 through -10 unit physical dimensions
Unit model number
Dimension (in.)
AB C D EF
ZS-06 42 89 22 1/8 18 3/16 15 3/16 6 3/16
ZS-07 42 89 22 1/8 18 3/16 15 3/16 6 3/16
ZS-08 50 3/4 89 30 3/16 24 3/16 17 3/16 6 3/16
ZS-10 50 3/4 89 30 3/16 24 3/16 17 3/16 6 3/16
