Roof curbs

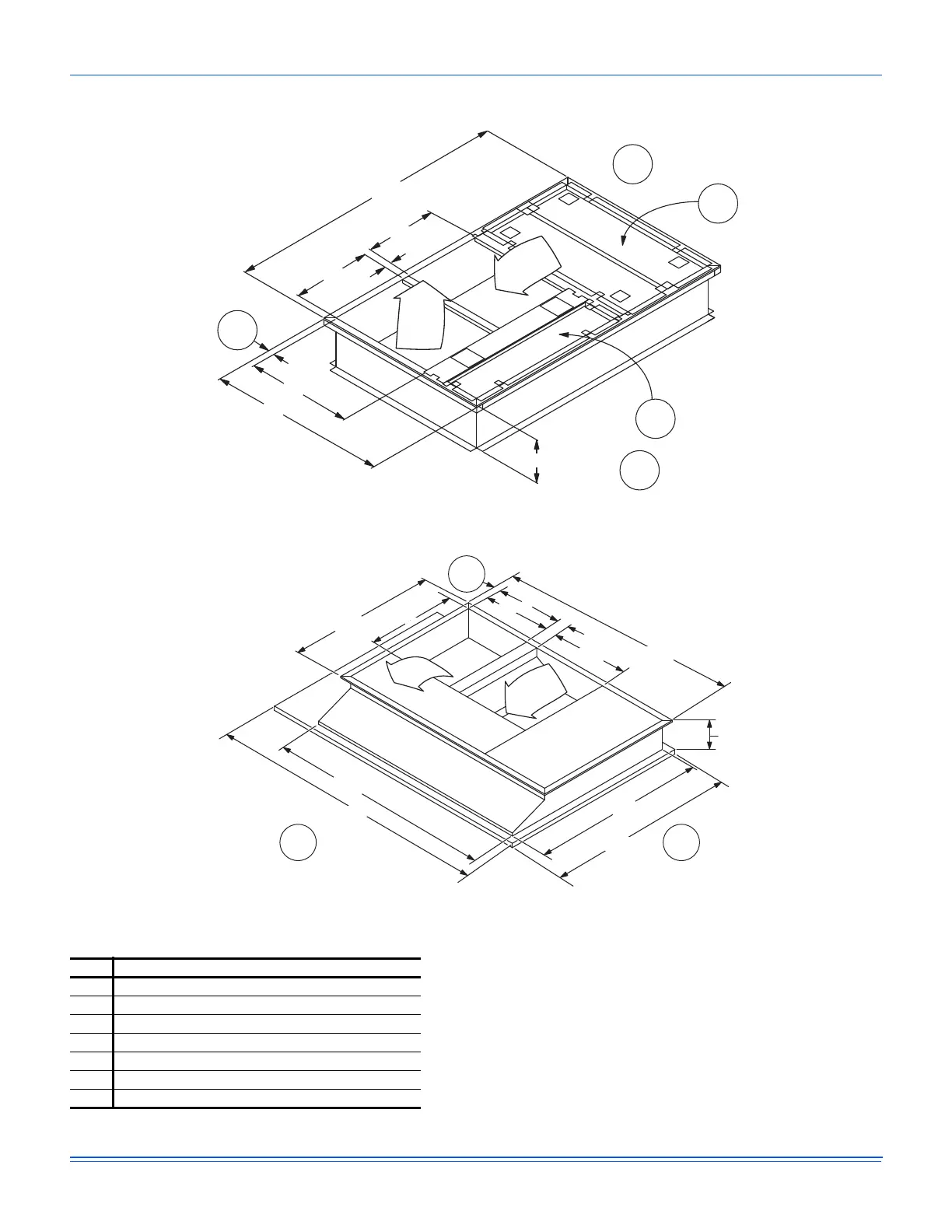

Figure 15: ZS-06 through -12 roof curb
Figure 16: ZS-06 through -12 transition roof curb
8 or 14
50-1/2
30
20
20
80-5/8
6
A
B
E
G
D
F
C
Roof curb components
Item Description
A Return air
B Supply air
C Right side of the unit
D Front side of the unit
E 2 typ.
F Insulated deck under the condenser section
G Insulated deck under the compressor section
76-5/8
94
50-1/2
30-1/2
64-1/4
59-1/4
10
23
4
26
80-5/8
B
A
C
E
D
