Johnson Controls ZS-07 - Through -12 Unit Bottom Duct Openings

5566019-BIM-B-1118
Johnson Controls Ducted Systems 13
Top view

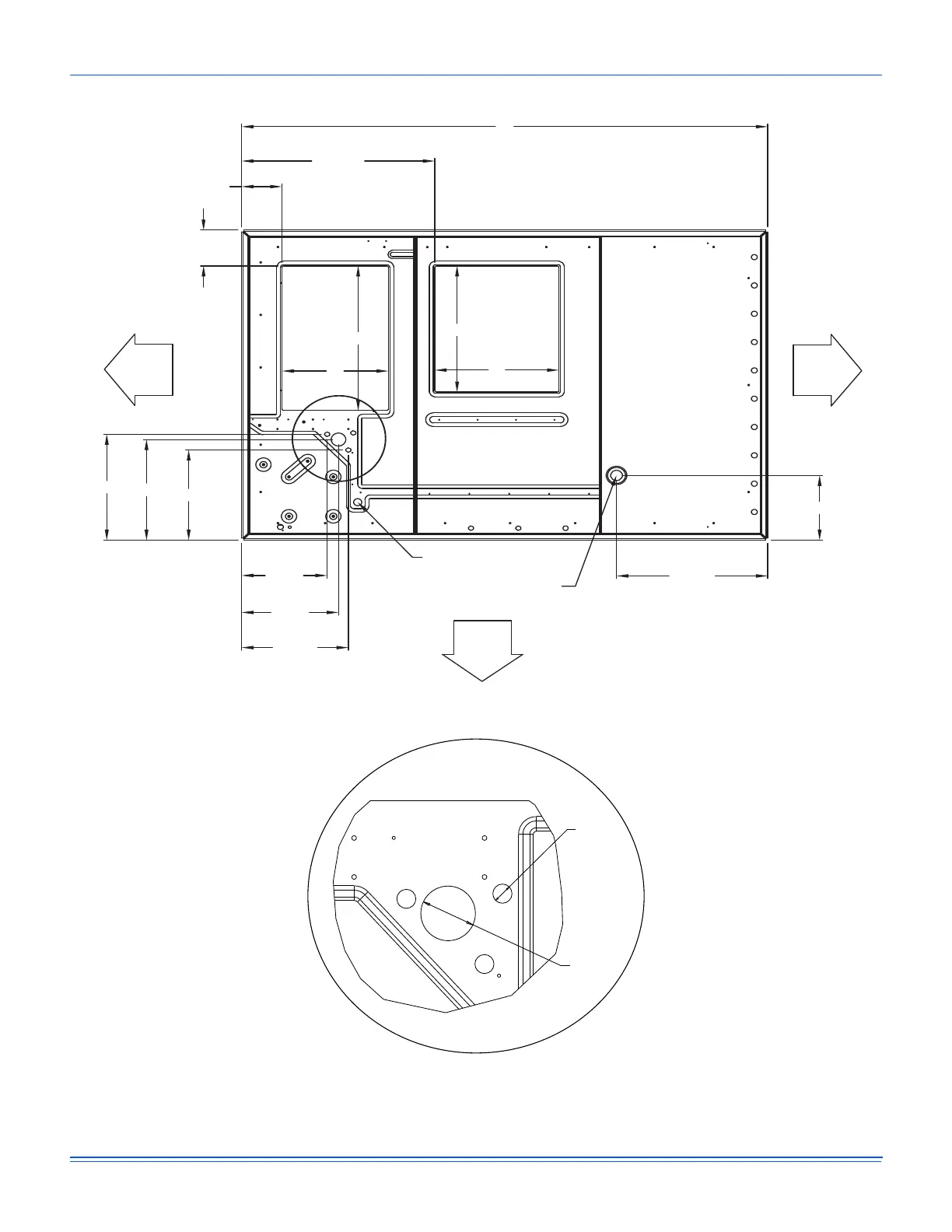

Figure 10: ZS-06 through -12 unit bottom duct openings
Figure 10 shows the bottom power, control, and convenience outlet wiring entry.
Bottom condensate drain
Bottom gas
supply entry
FRONT
RETURN
AIR
SUPPLY
AIR
RIGHT
LEFT
20 1/8
19 1/8
17 1/8
6 13/16
6 13/16
32 11/16
14 1/2
16 3/8
18 1/16
25 9/16
12 5/16
27 1/2
24
21
18
89
Ø 2.469
3X Ø 0.875
