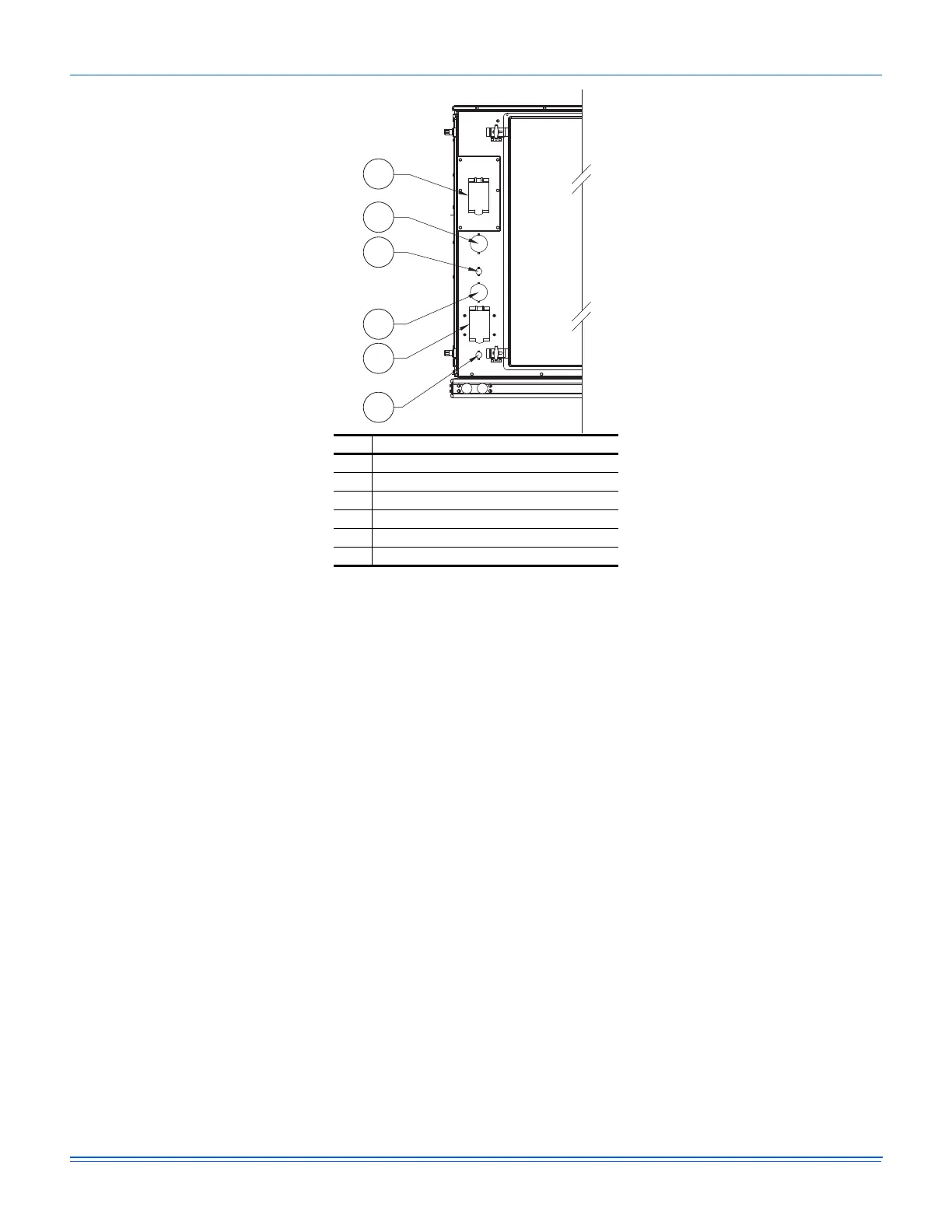

Figure 11: ZS-06 through -12 unit electrical entry
Item Description
A Disconnect switch cover
B Power entry Ø 2-1/2
C Control entry Ø 7/8
D Power entry Ø 2-1/2
E Convenience outlet cover
F Convenience outlet power entry Ø 7/8
A
B
C
D
E
F
