Johnson Controls Ducted Systems 15

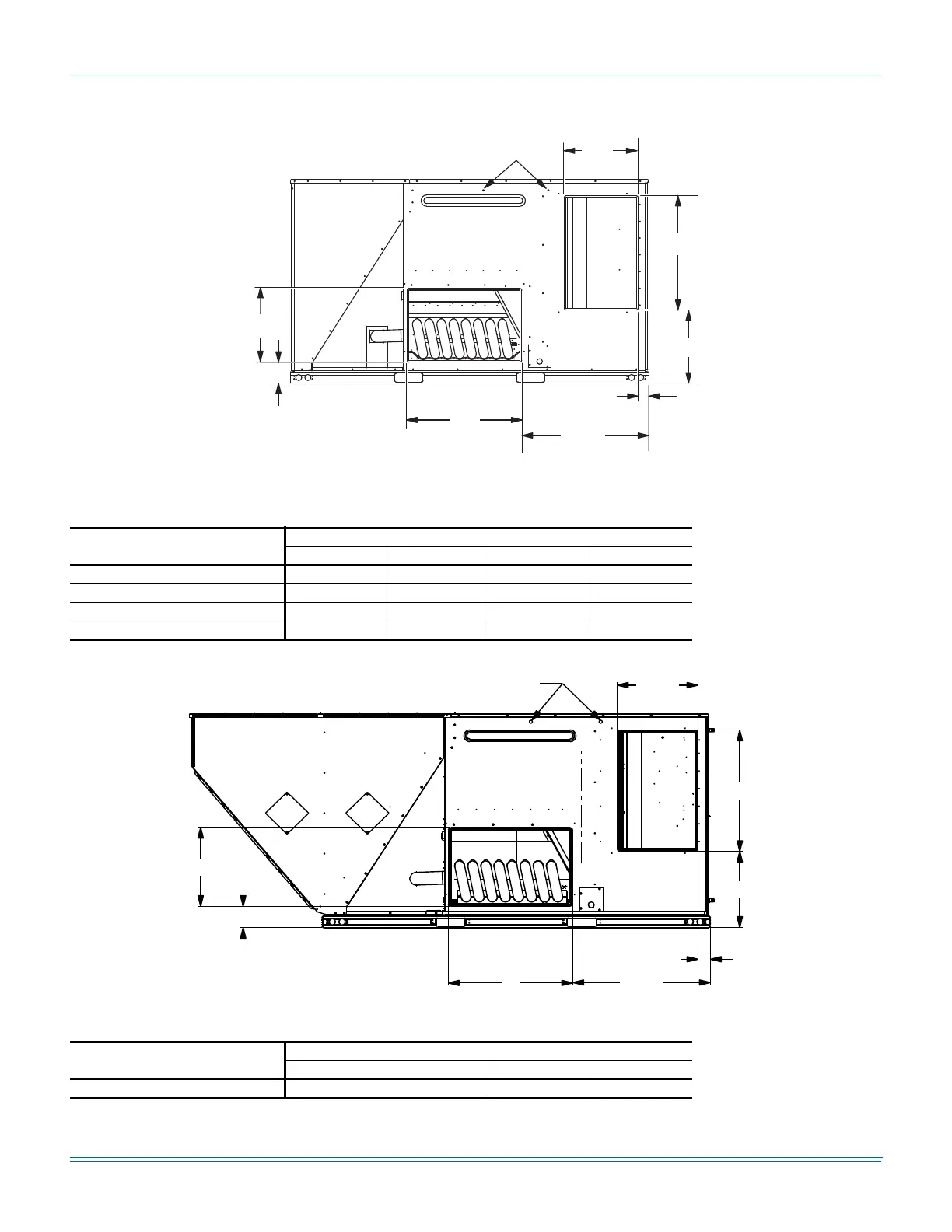

Figure 12: ZS-06 through -10 unit side duct openings
Figure 13: ZS-12 unit side duct openings
D o t P l u g s
5 - 5 /3 2
3 1 - 1 1 /1 6
2 - 3 1 /3 2
1 8 - 1 /4
Return
Air
Supply Air
A
B
C
D
Table 9:ZS-06 through -10 side duct dimensions
Unit model number
Dimension (in.)
ABCD
ZS-06 27 3/4 12 1/16 27 1/2 16
ZS-07 27 3/4 12 1/16 27 1/2 16
ZS-08 28 1/4 18 1/16 28 1/4 18 1/4
ZS-10 28 1/4 18 1/16 28 1/4 18 1/4
Dot Plugs
2-7/8
5-5/32
D
C
31-5/8
18-1/4
B
A
Table 10:ZS-12 side duct dimensions
Unit model number
Dimension (in.)
ABCD
ZS-12 28 1/4 18 1/16 28 1/4 18 1/4
