POLY V BELT 400/380J6 REPLACEMENT PROCEDURE (JPC/B)
Tools required:
u Philips
screwdriver
u Hex key (4mm)
u Crank extractor
u Coin
u Open-end
wrench
(14&17 mm)

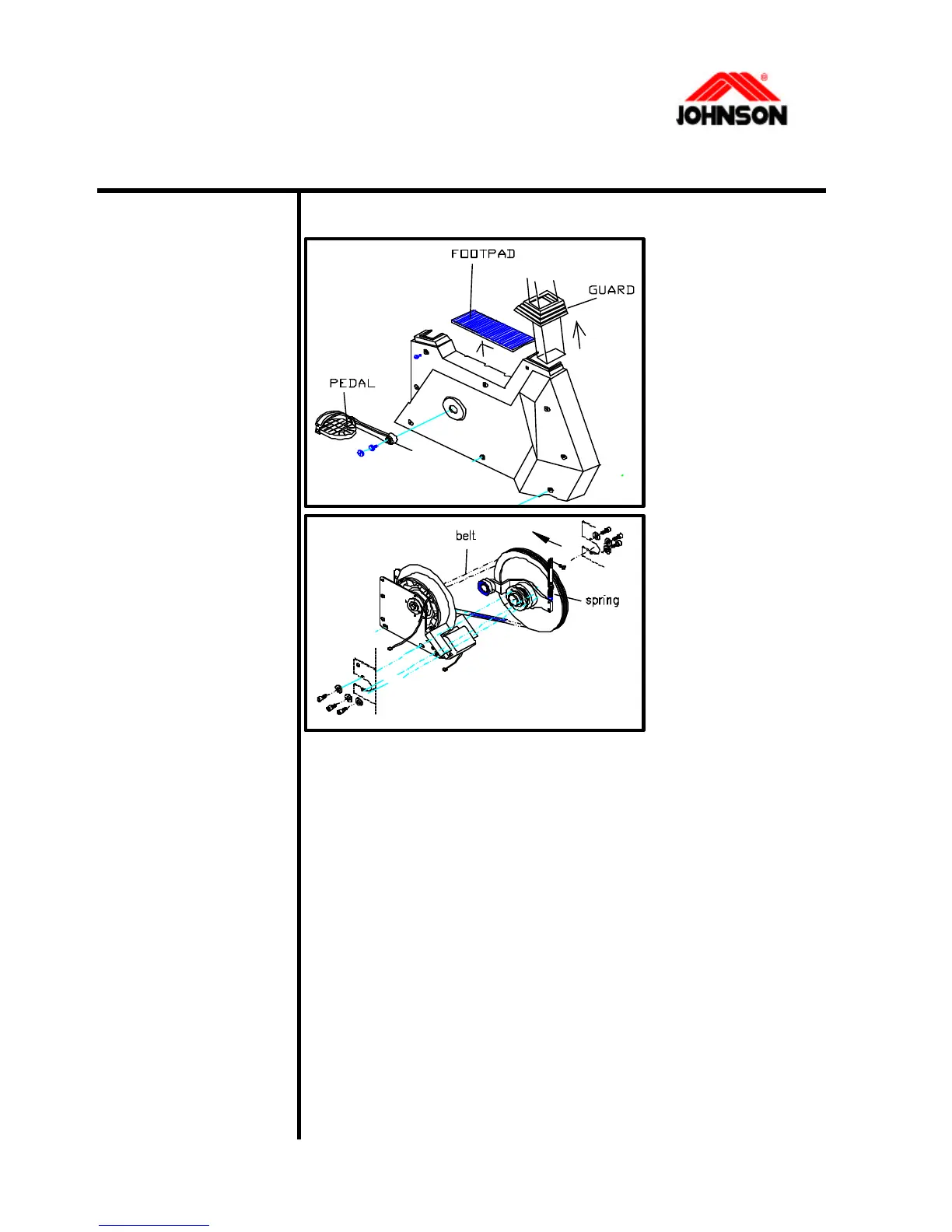

Procedure:
1. Remove the
crank cover and
screw, then remove
the crank. (Refer to
page 3-5).
Loosen the screws
from the side cover
with the screwdriver,
then remove the
footpad, guard and
side cover.
2. Loosen the
400(380 for JPB-
5100) J6 and
500(440 for JPB-
5100) J8 belts.
3. Loosen the screws from the front pulley by using the hex
key (4mm), then remove the front pulley
4. Replace the 400(380) J6 belt with a new one.
5. Tighten the screws from the front pulley by using the hex
key (4mm).
6. Install 400(380) J6 and 500(440) J8 belts onto the front
and rear pulleys.
7. Install the side covers and the parts.
3-7 Revision: 1.0 Date: 2001/06/01
