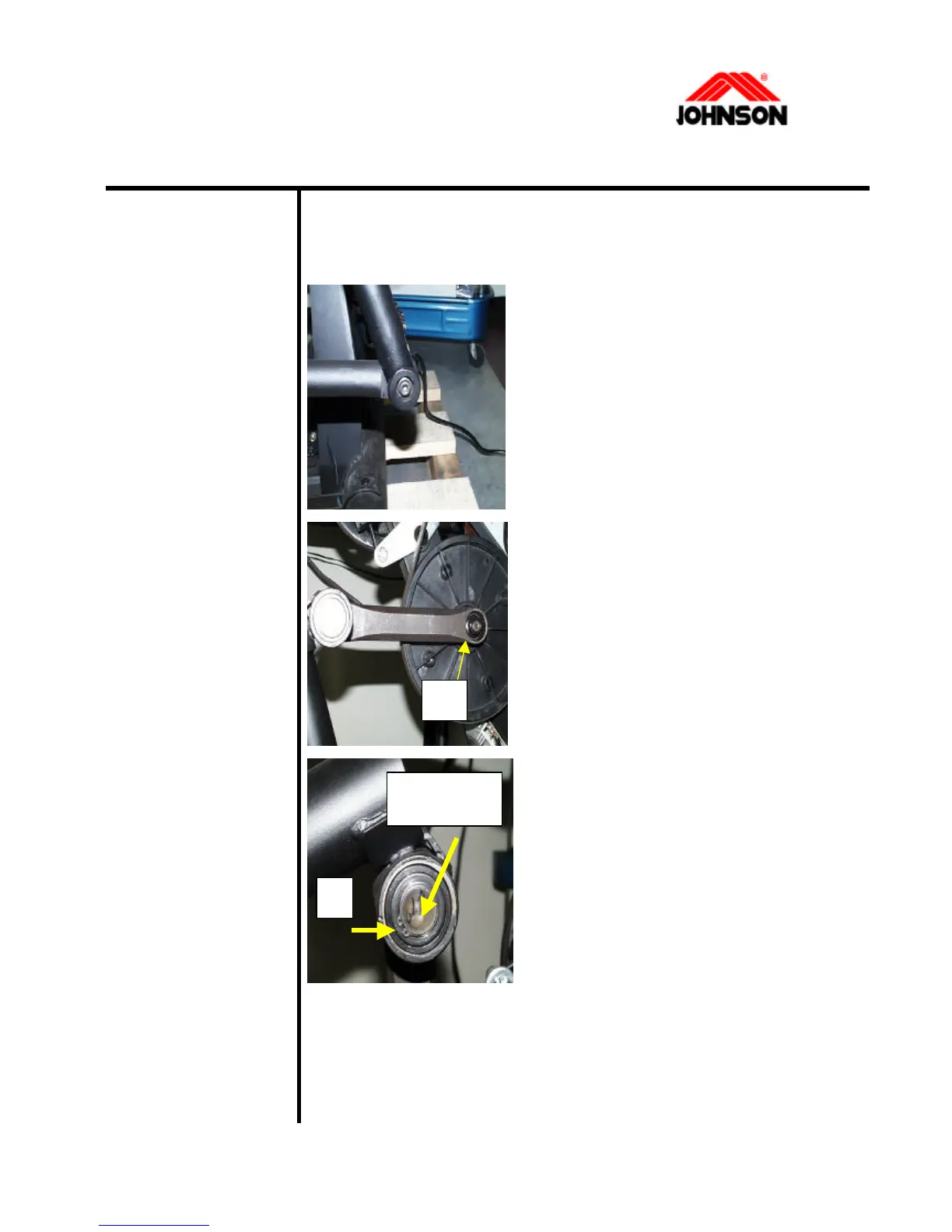

CRANK REPLACEMENT PROCEDURE (JPE5100)
Tools required: Procedure:
u Puller
u Wooden
hammer
u Hexagonal
socket wrench
(19&13mm)
u Philips
screwdriver
u Hex key (6mm)
u C-clip pliers
u Adjustable
wrench
1 Remove the joint screw between
handlebar and handrail links.
2 Remove all of the covers.
3 Remove the nut(A) then pull the
crank and pedal set out
4 Remove the c-clip (B) then with
wooden hammer tap the crank out.
5 Replace the crank with a new one
6 Reverse step 1-4 to install the
parts
A
B
Tap here
3-18 Revision: 1.0 Date: 2001/06/01
