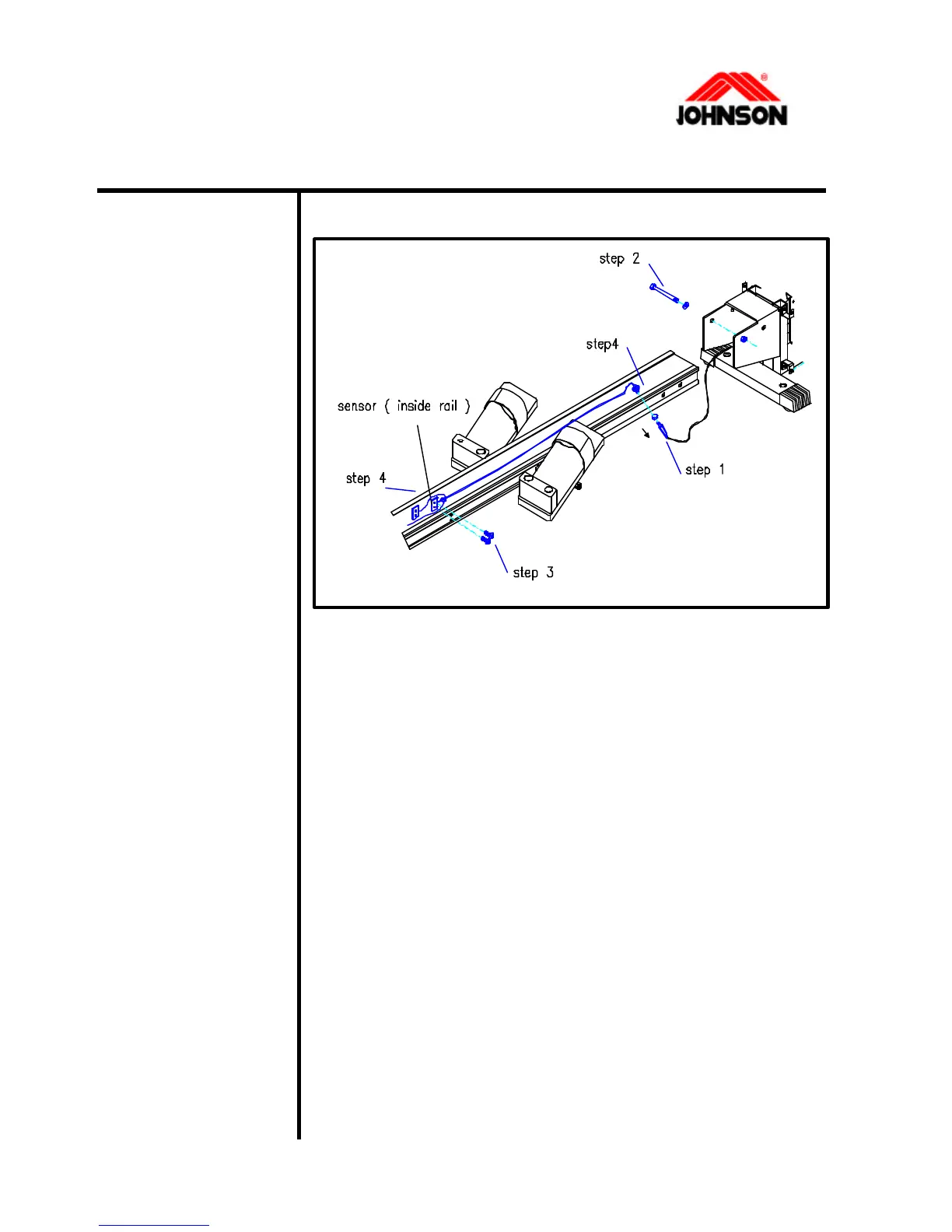

SENSOR REPLACEMENT PROCEDURE (JAR)
Tools required:
u Philips
screwdriver
u Open-end wrench
(8&15mm)
Procedure:
1. Unplug the console wire from the rail
2. Loosen the bolts attaching the bracket to the rail then
remove it
3. Loosen the screws attaching the sensor to the rail then tie
a new sensor to bad sensor with a rigid string
4. Loosen the nut attaching the female connector to the rail
with the open-end wrench. Pull the old cable from the
front end until the new cable threads all the way through
the rail
5. Reverse step 1-5 to install the parts
3-28 Revision: 1.0 Date: 2001/06/01
