PULLEY AXLE REPLACEMENT PROCEDURE (JPE5100)
Tools required:
u Philips
screwdriver
u Hex key
(6mm)
u C-Clip Pliers
u Wooden
hammer
u Adjustable
wrench
Procedure:

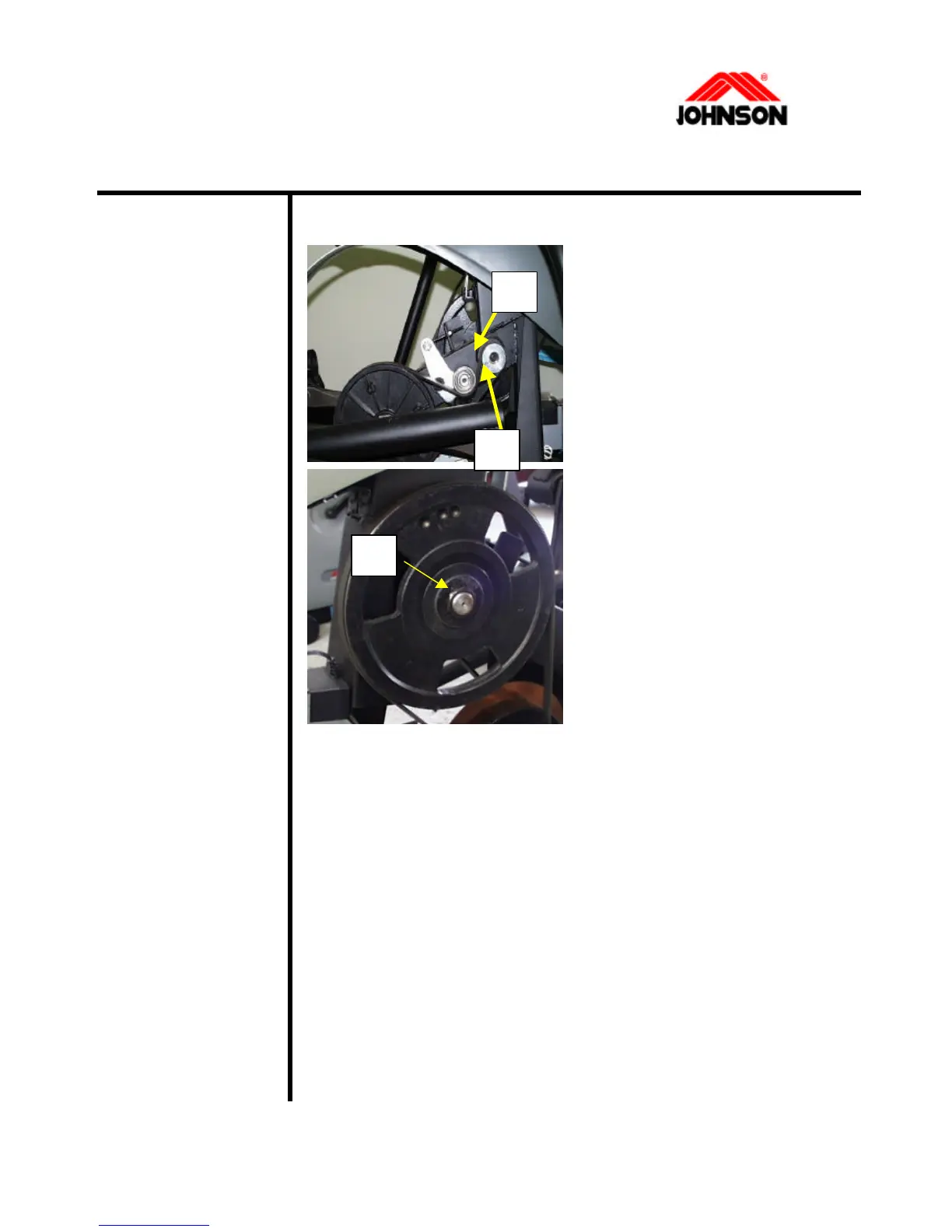

1 Remove all of the covers
and poly v belts.
2 Remove the screw (A) and
washer
3 Pull pulley (B) out then
knock axle set out with the
wooden hammer.
4 Remove the nut (C), then
tap the axle out
5 Replace the axle with a
new one, then install the c-clip
by using c-clip pliers.
6 Reverse the step 1-4 to
install the parts.
Note: To clean the bearing housing and apply adhesive on
the outer race of bearing is necessary.
A
C
B
3-22 Revision: 1.0 Date: 2001/06/01
