POLY V BELT 430J8 REPLACEMENT PROCEDURE (JPS)
Tools required:
u Philips
screwdriver
u Hex key (4mm)
u Open end
wrench
(14mm)
Procedure:

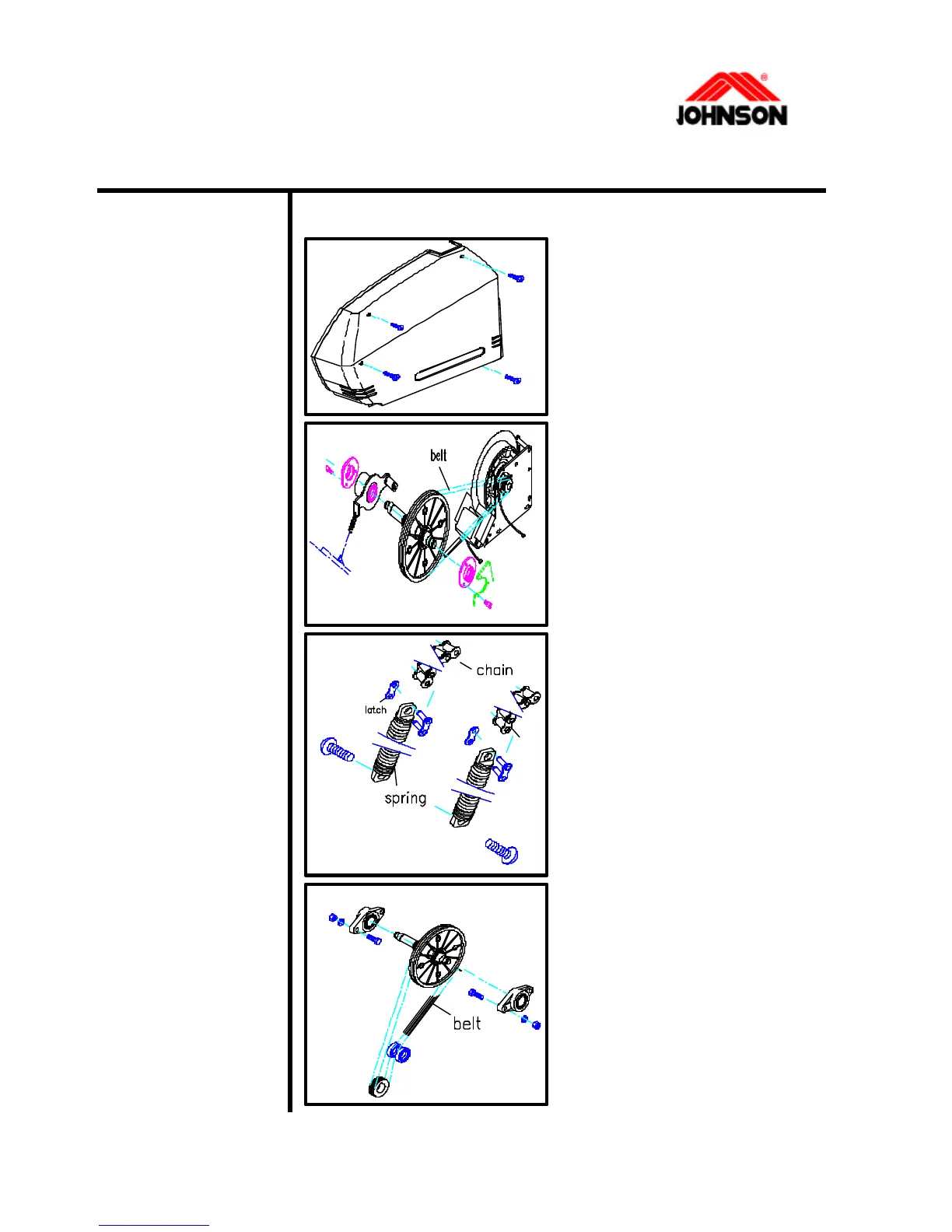

1. Loosen the screws of the
side cover with the screwdriver.
2. Remove the 430J6 and
430J8 belts from the pulley.
3. Loosen the screws from the
front pulley by using the hex
key (4mm), then remove the
front pulley.
4. Loosen the screws from the
chain tension springs at the both
the left and right sides (The
spring replacement is dangerous.
Take special cautions during the
operation
so you will not
damage both you and other
parts).
5. Loosen the screws holding
the bearing housing to the
frame by using the open-ended
wrench and then remove the
pulley with the axle.
6. Replace with the new belt
(430J8) and at the same time
install the front wheel with the
axle.
3-13 Revision: 1.0 Date: 2001/06/01
