CONSOLE WIRE REPLACEMENT PROCEDURE (JAR)
Tools required:
u Philips
screwdriver
u Open-end
wrench
(8&15mm)

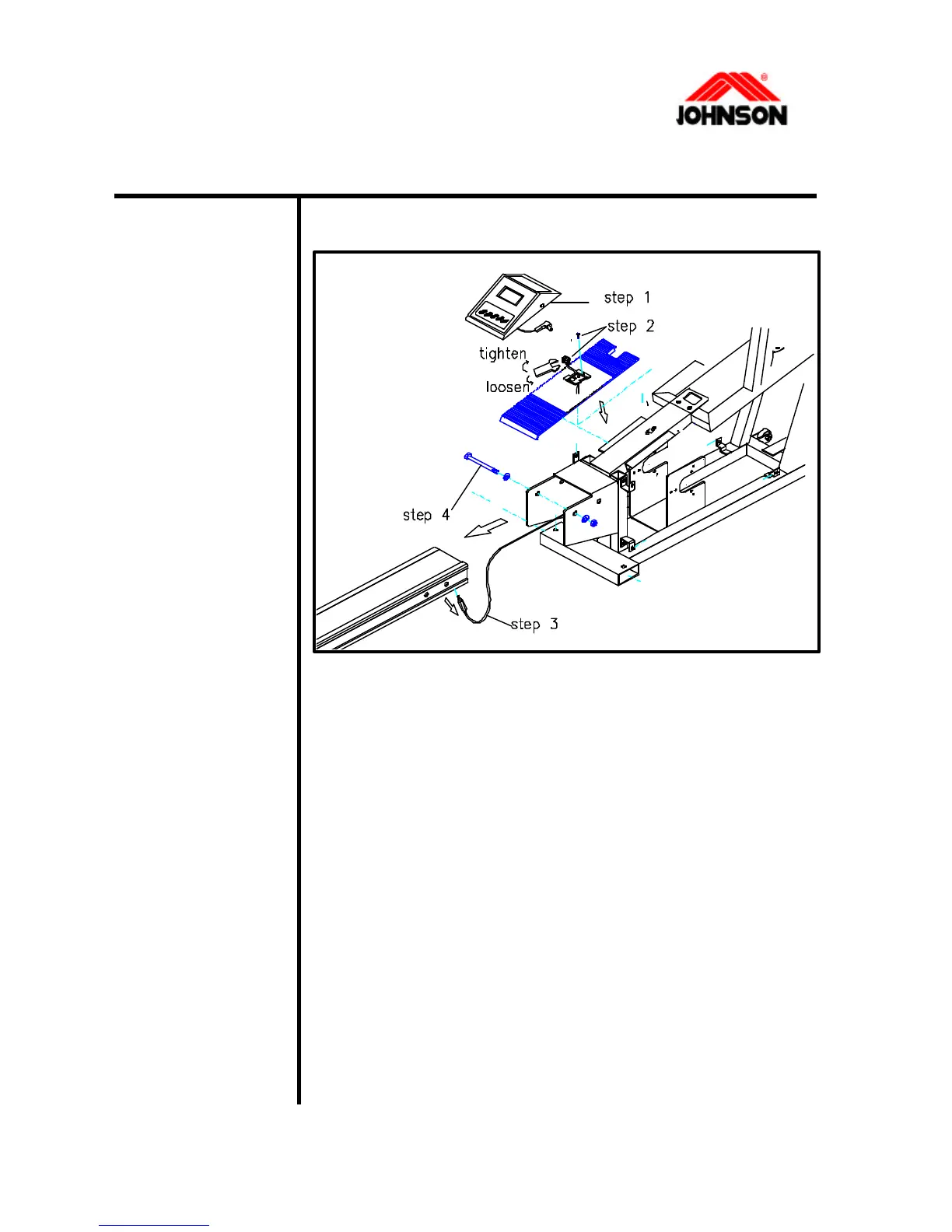

Procedure:
1. Push the console forward and pull the console up, then
unplug the sensor wire terminal from the connector then
remove the console
2. With the open-end wrench loosen the nut and with the
Philips screwdriver loosen the screws from the female
connector.
3. Unplug the console wire from the rail
4. Loosen the bolts attaching the bracket to the rail then
remove the rail.
5. Replace console wire with a new one.
6. Reverse step 1-2 to install the parts.
3-27 Revision: 1.0 Date: 2001/06/01
