MA7:3
V Range 502 l 652 l 802 Maintenance Manual
Johnston Sweepers Limited
Chapter - Remove and Refit Procedures
M02MA-015
2
1
6
5
4
3
B
M02MA-003
A

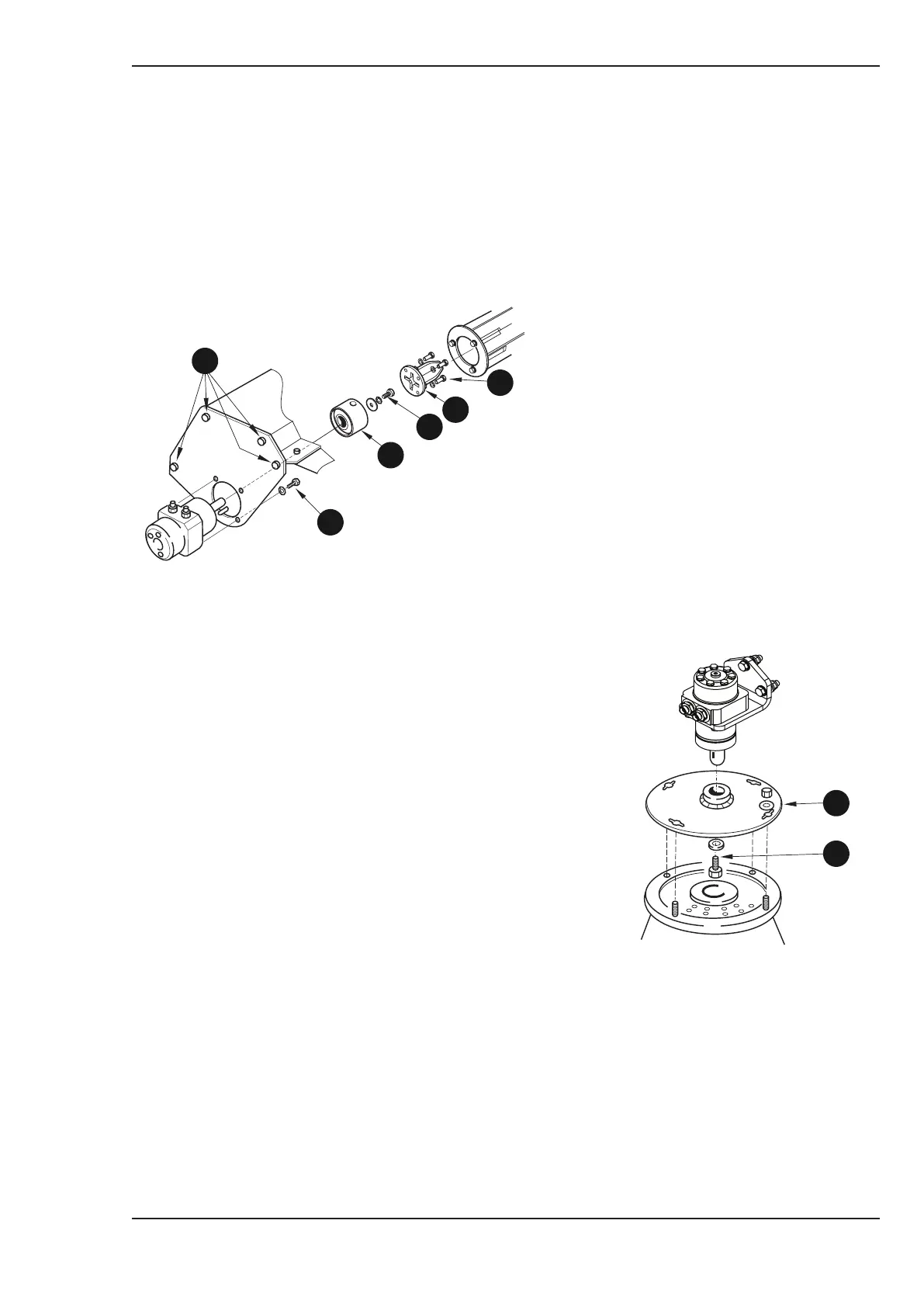

Wide Sweep Brush Motor
Removal
1. Remove the brush stock as described in Chapter 6.
2. Unscrew the four end plate securing setscrews and remove plate complete with motor assembly
and drive shaft or drive dog.
Refitting
3. Refitting is the reverse of removal.
(1) End plate securing screws.
(2) Drive shaft retaining screws.
(3) Drive shaft/drive dog.
(4) Drive adaptor retaining screw.
(5) Drive adaptor
(6) Motor securing screws
Channel Brush Motor
Removal
1. Unscrew the four nuts (A) from the coach bolts securing
the channel brush to the drive adaptor plate and remove
brush.
2. Unscrew the retention screw (B) from the centre of the
drive adaptor plate and remove plate.
3. Disconnect the two hydraulic hoses from the motor.
4. Unscrew the two bolts securing the motor to mounting
bracket and lift off motor.
Refitting
5. Refitting is the reverse of removal.
