Johnston VT502 - Emergency Codes

MA8:11
V Range 502 l 652 l 802 Maintenance Manual
Johnston Sweepers Limited
Chapter - Fault Diagnosis
Menu 4.2.3.1 - Powapak IO Node

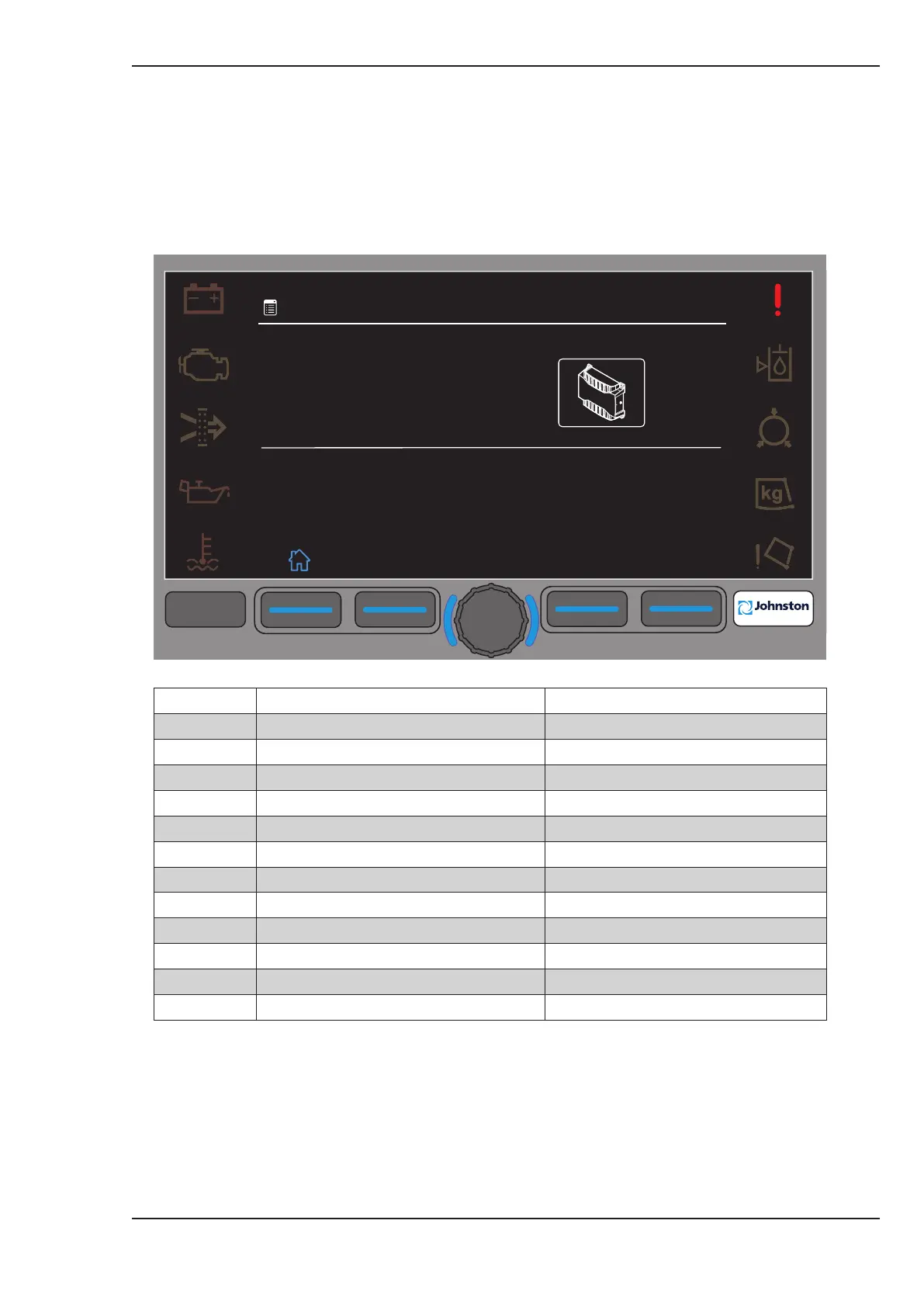

Should a fault occur within the CANbus network it will be accompanied by one or more emergency
codes (EMCY), which will be logged in the system.
Turning the ignition off will deactivate warning lights and any active faults will be stored. These will still
be visible when viewing nodes. To clear the inactive fault memory, press the encoder + F4 when viewing
the node.
F1
F2
F3
F4
F4
09:45
20.01.2016
4.2.3.1
0
0
8960
21248
0
0
0
0
0
0
00
22
3.16.0.00
#1
#4
#2
#3
Emergency Code(s) :
#6
#7
#5
#8
#10
#1 1
#9
#12
Node ID :
O/S Version :
See pages 8:12 for complete list of emergency codes, code type, fault descriptions, fault area and connector.
Node ID Name Location
16 System Locker System Locker
17 Front Brush (option) Front Brush (option)
18 Hopper Subframe
20 JVM Display Cab
22 Powapack (All except 85Kw JCB) Powapack
24 85Kw JCB and Hydrostatic Powapack
30 Pendent Cab
40 Door Controller Cab
41 Centre Console Cab
99 Pneumatic Valve Island System Locker
112 JCB Actuator (JCB 85kW engine only)
127 Multiplex (option) Cab
