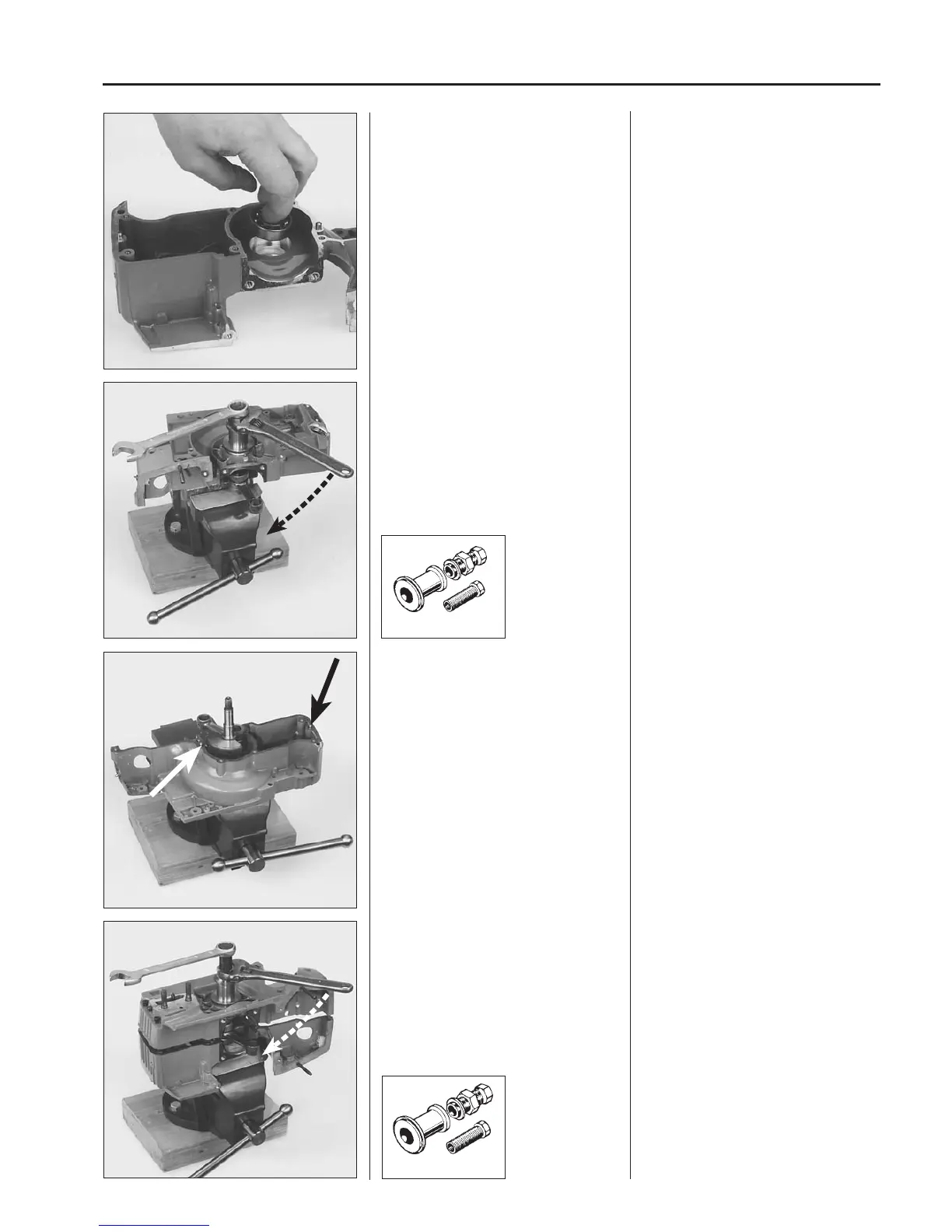

Crankshaft and crankcase
Heat the flywheel side’s crankcase half
and put the ball bearing in position.
Pull the crankshaft into the flywheel side’s
crankcase half by means of tool
502 50 30-04 (use the sleeve from
502 50 30-08).
Check that the guide pins are in position.
Place a new crankcase gasket on the
sealing surface.
Place the clutch side’s crankcase half
over the crankshaft and make sure that
the plastic hose for the oil tank vent is
positioned correctly.
Pull the crankcase halves together and
tighten the screws.
Heat the flywheel side’s crankcase half to
150–200° C and place the ball bearing in
position against the shoulder in the
bearing seat.
Pull the crankshaft into the flywheel side’s
crankcase half by means of tool
502 50 30-04 (use the sleeve from
502 50 30-08).
Make sure that the connecting rod is not
jammed against the crankcase.
Check that the guide pins are in position
on the flywheel side’s crankcase half.
Apply grease on the sealing surface and
place a new gasket over the guide pin.
Place the clutch side’s crankcase half
over the crankshaft.
Make sure that the plastic hose for the oil
tank vent leads to the top against the
cylinder plane on the flywheel side’s crank-
case half.
Place the crankcase screws in position to
prevent the gasket from slipping.
Pull the crankcase halves together by
means of tool 502 50 30-04 (use the
sleeve from 502 50 30-08) and tighten the
screws.
