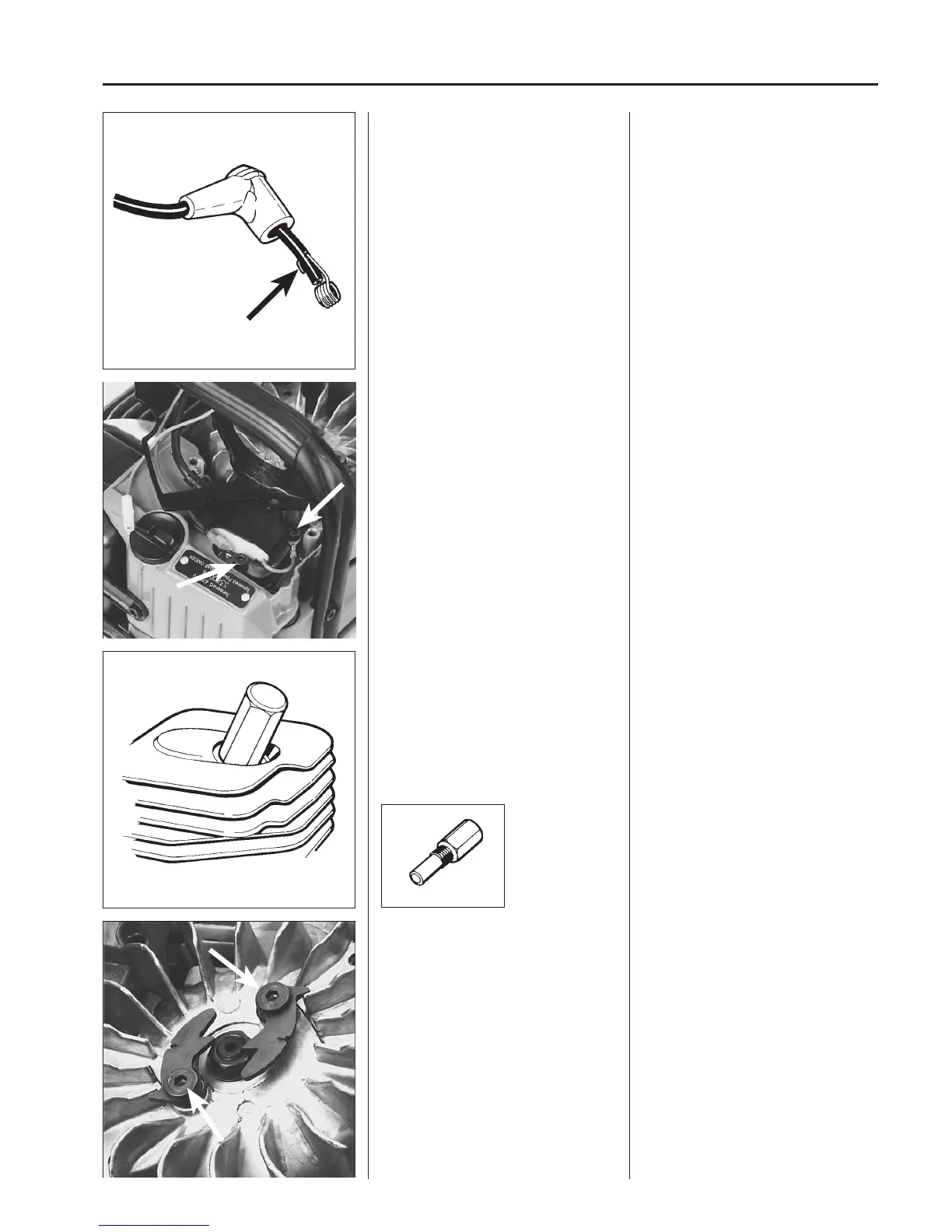

Electrical system
504 91 06-05
3. Fit the contact spiral on the ignition
cable.
3. Fit the contact spiral on the ignition
cable and make sure that the wire is
folded along the cable.
4. Pull the contact spiral into the spark
plug protection.
NOTE!
It is important that the point of the contact
spiral meets the middle of the ignition
cable to prevent sparking.
Fit a piston stop No. 504 91 06-05 alt.
502 50 33-01 in the spark plug hole.
Fit a piston stop No. 504 91 06-05 alt.
502 50 33-01 in the spark plug hole.
Make sure that the piston stop is screwed
down to the bottom.
Dismantle the starter pawls.
Mod. 2054/2055
On earlier versions of these models the
starter pawls sit on a bridge which can be
lifted off when the flywheel nut is
dismantled.
Dismantling
Dismantle the plug, cylinder cover, star-
ter unit, and air bar.
Dismantle the ignition module and re-
lease the other cable connections.
Dismantling
Dismantle the plug, cylinder cover, star-
ter unit, and air conductor.
Dismantle the ignition module by remo-
ving the two screws.
Release the other cable connections and
lift off the ignition module.
Dismantle the starter pawls by releasing
the screws. Make sure that the small
washer close to the flywheel is not mislaid.
Mod. 2054/2055
On earlier versions of these models the
starter pawls sit on a bridge which can be
lifted off when the flywheel nut is
dismantled.
