29
3
Electrical system
504 90 90-01
Mod. 2054/2055

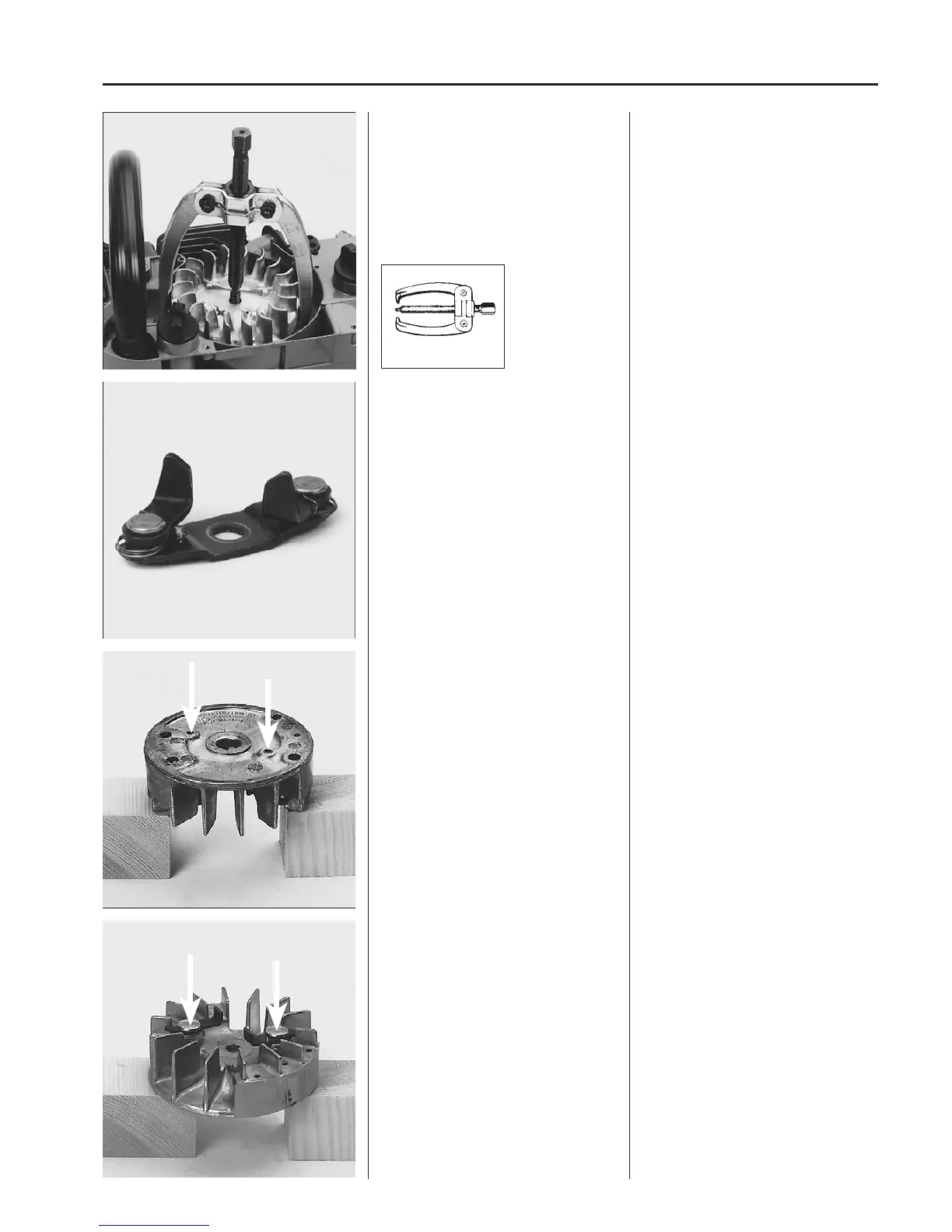

Pull off the flywheel.
Mod. 2054/2055
Pull off the flywheel by means of ball
bearing puller No. 504 90 90-01.
NOTE!
The claws on the tool should be placed on
and opposite the permanent magnet on
the flywheel so that this is not damaged.
Is the flywheel stuck?
Lift up the engine unit by holding the tool
and hit the tool screw a few times with a
hammer.
Starter pawls
Check the starter pawls for wear and
damage.
Replace damaged parts.
Starter pawls
Check the starter pawls for wear and
damage.
Replace damaged parts.
For starter pawls which are mounted on a
separate bridge the entire unit must be
replaced.
Mod. 2036/2040
Press out the journals by means of a
suitable mandrel.
Replace damaged parts.
Mod. 2036/2040
Replace the starter pawls and springs in
the following way if they are housed on a
journal pressed in the flywheel.
Place the flywheel on support blocks and
press out the journals by means of a
suitable mandrel.
Replace damaged parts.
Make sure that the spring is not pinched
when the journal is pressed into the
flywheel.
Check that the starter pawls move easily.
