Jonsered 2095 Workshop Manual

7
Safety equipment
1
!
A
B

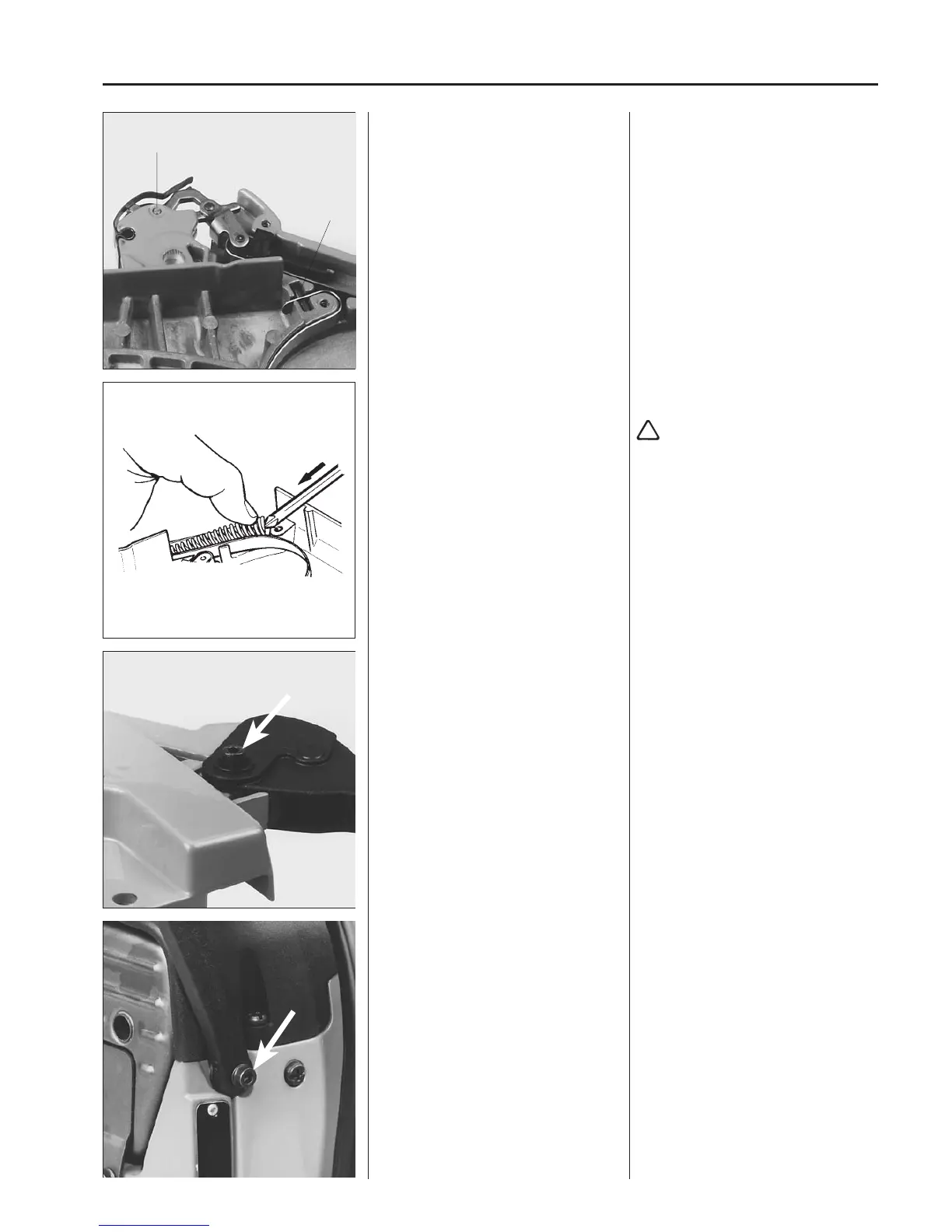

Fit the brake mechanism in the clutch
cover.
Lubricate the bearing points with thin oil.
Press down the brake spring by means of
a Phillips screwdriver.
Fit the cover.
Grease the bearing surfaces and fit the
hand guard.
Check that the brake functions.
Dismantling
Mod. 2054/2055
Remove the screw, sleeve and washer
for the hand guard’s bearing on the star-
ter unit side, including the clutch cover,
guide bar and chain.
Clean!
Place the brake mechanism in position
on the clutch cover.
Press in the toggle-joint’s bearing pin (A)
and place the tubular pin (B) in position.
Lubricate the bearing points with thin oil.
Press down the brake spring in the clutch
cover by means of a Phillips screwdriver.
WARNING!
Observe care to avoid injury if the
screwdriver slips.
Fit the cover over the spring mechanism.
Grease the bearing points for the hand
guard.
Press down the hand guard over the
bearing and fit both bearing sleeves.
NOTE!
Check that the bearing sleeves are placed
on the correct side.
Tension and release the chain brake a
number of times to check that it functions.
Dismantling
Mod. 2054/2055
On these models the chain brake’s hand
guard has an extra bearing point on the
starter unit side.
Remove the screw, sleeve and washer
for this bearing.
Remove the clutch cover, guide bar and
chain.
Clean from sawdust and dirt.
