Fuel system
Carburettor
Dismantling, all models
Dismantle the cylinder cover and car-
burettor cover and blow clean the car-
burettor chamber with compressed air.
Dismantling mod. 2036/2040
Dismantle the carburettor.

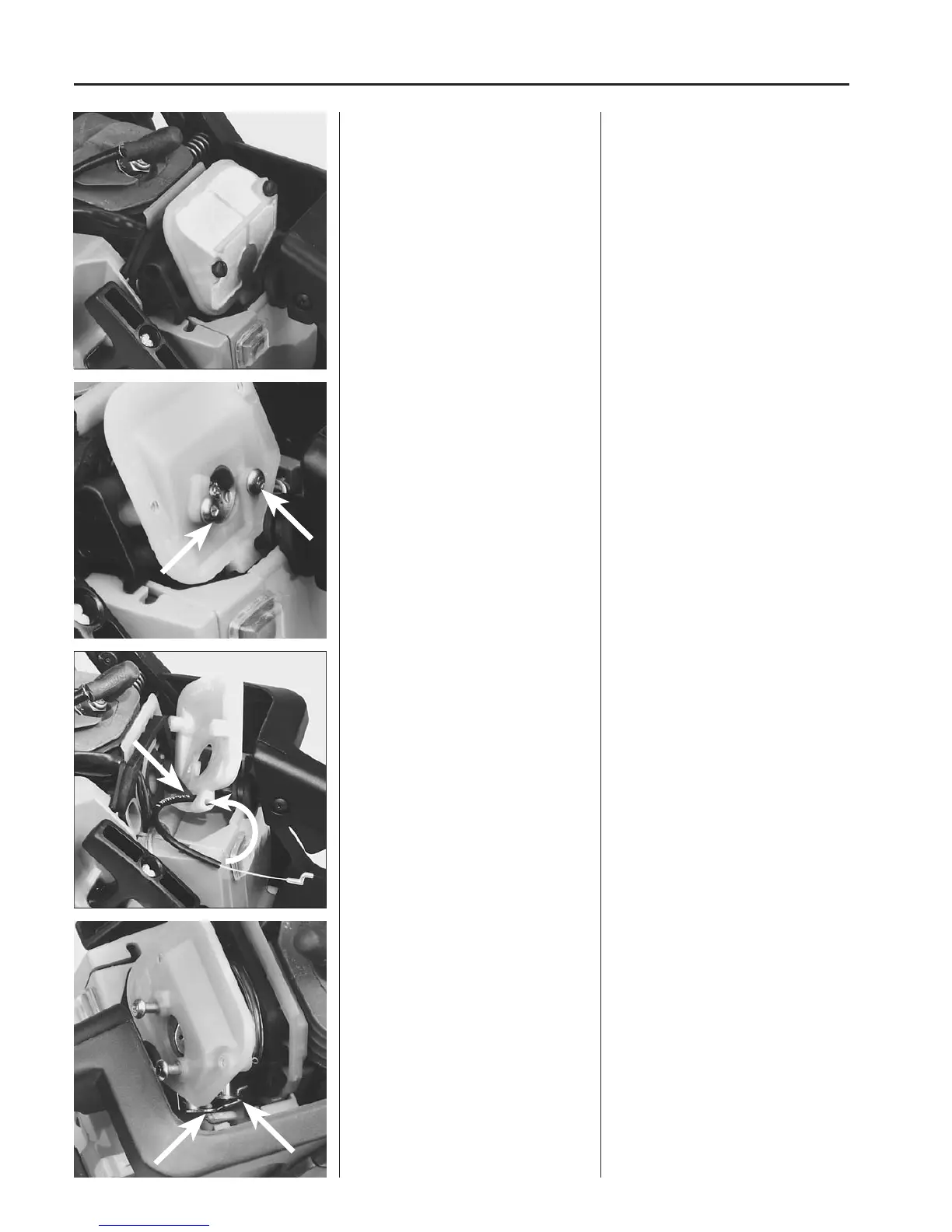

Fitting mod. 2036/2040
Enter the throttle wire through the hole
and the guide in the air filter holder.
Connect the fuel pipe and throttle wire.
Position the screws.
Connect the choke lever.
Carburettor
Dismantling, all models
● Dismantle the cylinder cover and
carburettor cover.
● Close the choke valve to prevent dirt
entering the engine.
● Blow clean the carburettor chamber
with compressed air.
Dismantling mod. 2036/2040
Dismantle the air filter and air filter holder,
fuel pipe, throttle wire and choke lever.
Lift off the carburettor.
Fitting mod. 2036/2040
Enter the throttle wire through the hole
and the guide in the air filter holder as
shown in the diagram.
NOTE!
Check that the throttle wire is put in the
holder from the correct side.
Connect the fuel pipe to the carburettor.
Connect the throttle wire to the lever.
Push the screws (the right-hand first)
through the air filter holder and carburettor
body.
Connect the choke lever by pressing in
the pin in the lever with a screwdriver.
