39
4
Fuel system
Place the gasket on the carburettor and
tighten the screws.
Connect the screwdriver guide.
Fit the air filter.

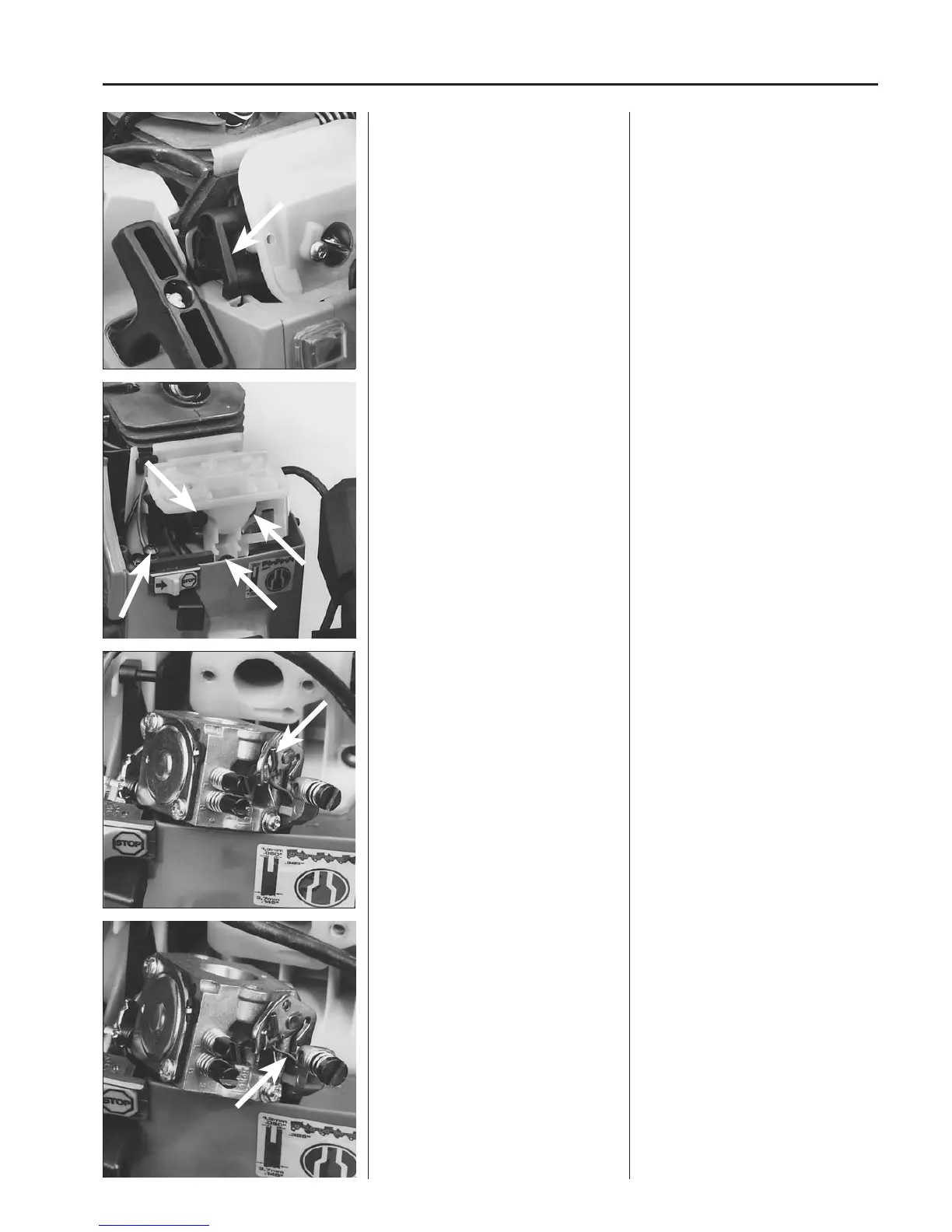

Dismantling mod. 2041/2045/
2050
Fold back the handlebar and remove the
air filter.
Dismantle the screws which hold the sup-
port over the stop switch respectively
filter holder.
Lift off the air filter holder.
Disconnect the throttle wire and fuel pipe.
Fitting mod. 2041/2045/2050
Connect the fuel pipe and throttle wire.
Tips!
Place the carburettor gasket, preferably
with gasket paste, on the carburettor.
Position the screws through the holes
approx. 5 mm to centre the gasket.
Tighten the screws. Begin with the right-
hand side.
Connect the screwdriver guide on the
carburettor’s adjusting screws.
Fit the air filter.
Dismantling mod. 2041/2045/
2050
Dismantle the screws and fold away the
handlebar to simplify dismantling and
fitting of the carburettor.
Remove the air filter by prizing off with a
screwdriver.
Fold away the pipe for the tank vent.
Dismantle the screws which hold the sup-
port over the stop switch respectively
filter holder.
Fold the screwdriver support for the
carburettor’s adjusting screws to one side
and lift off the air filter holder.
Disconnect the throttle wire and fuel pipe.
Fitting mod. 2041/2045/2050
Connect the fuel pipe and throttle wire.
NOTE!
The throttle wire should be drawn between
the carburettor body and the lever for the
idling screw.
