12
Safety equipment
1
A
B

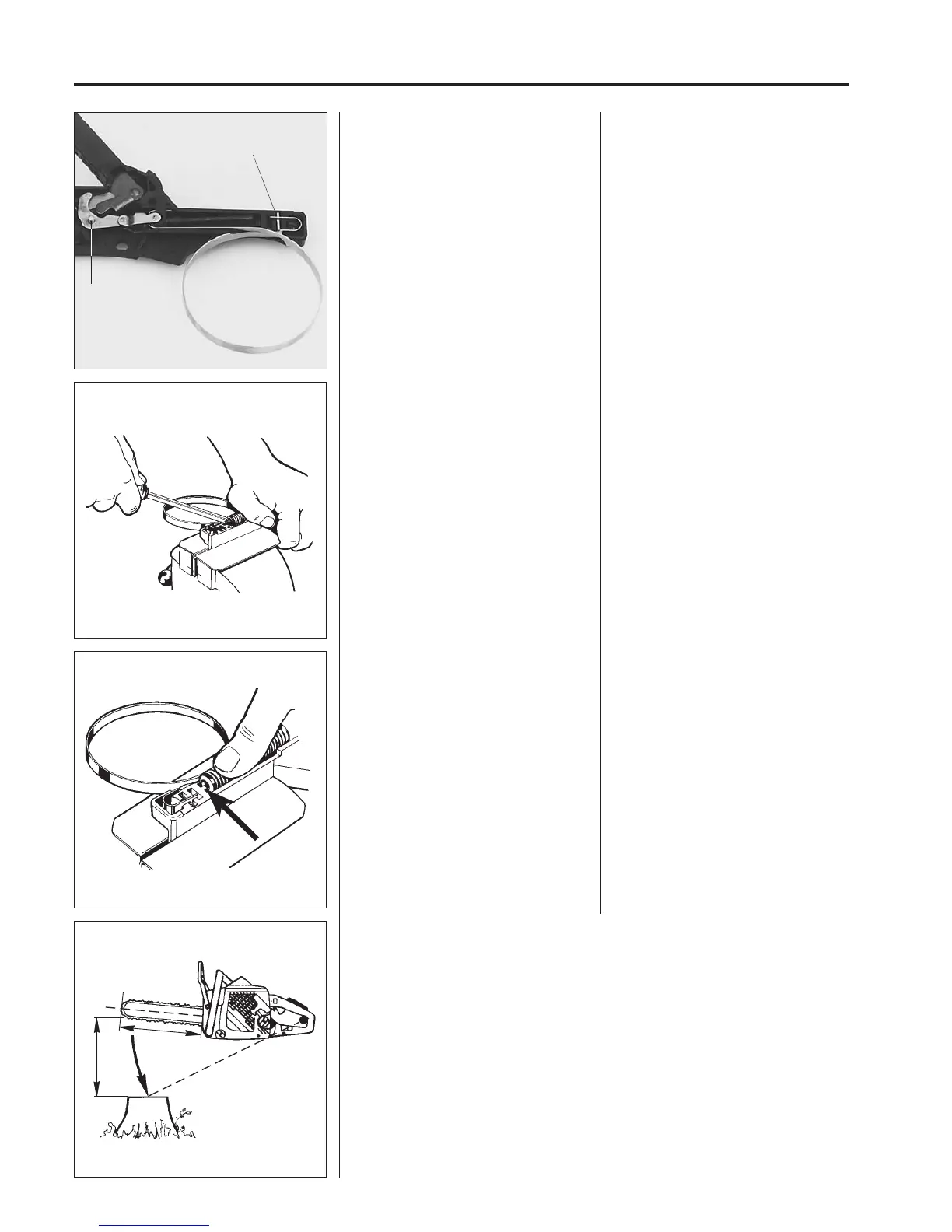

Fit the brake band (A) and place the
toggle-joint in position over its bearing
pin (B).
Press together the brake spring far
enough so that the guide pin in the back
of the spring housing is released.
Press down the spring and check that the
pin goes into the centre of the spring.
Press down the brake band in its rear
attachment (A).
Place the toggle-joint in position over its
bearing pin (B).
Make sure that it is correctly positioned.
Press the brake spring over the guide pin.
Push the guide sleeve in the spring and
outside of the guide pin.
Press the spring together by means of a
suitable Phillips screwdriver far enough
so that the guide pin in the back edge of
the spring housing is released.
Press down the spring and check that the
pin goes into the centre of the spring.
Fit the chain brake on the engine.
Check that the guide pin on the chain
brake goes into the corresponding hole in
the crankcase.
L
H
Checking of the automatic function
NOTE!
The engine should be switched off during this check.
Hold the saw approx. H mm over a stable object.
Release the front handle and allow the saw to turn round the back handle by virtue of
its own weight. When the guide bar point hits the object the brake should be activated.
H, cm/inch L, inch
45/14 11 – 16
55/22 18 – 22
65/26 24 – 28
80/32 30 – 36
