Fitting, mod. 2036/2040
Fit in the reverse order to dismantling.
2
1
Safety equipment
1
Check that the throttle cable is correctly
fitted.
Do not lubricate!
Fitting mod. 2041/2045/2050
Check that the throttle cable is correctly
fitted.
Do not lubricate!
Fitting mod. 2054/2055
Check that the spring and throttle cable
are correctly connected.

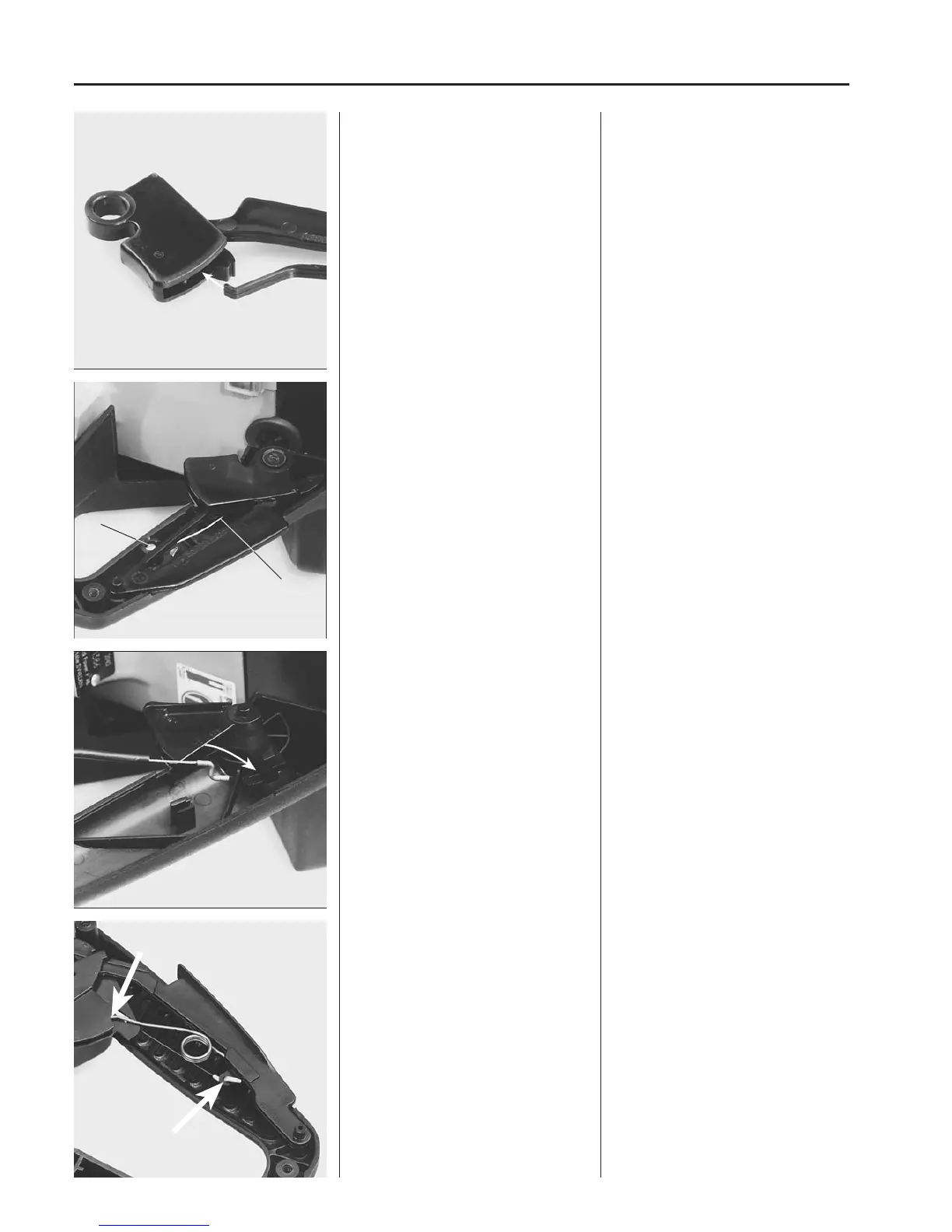

Fitting mod. 2036/2040
Replace any damaged parts and fit in the
reverse order to dismantling.
Note the following:
● Make sure that the spring comes on
the correct side of the barrier in the
throttle control.
● Check that the throttle cable's ball lug
sits in the recess (1).
● Check that the throttle cable is flush
with the cam curve on the throttle
control (2).
● Do not lubricate!
Fitting mod. 2041/2045/2050
Note the following:
● Fit the throttle cable from the correct
side in the throttle control.
● Check that the throttle cable is
correctly positioned so that it is not
clenched when the handle half is fitted.
● Do not lubricate!
Fitting mod. 2045/2055
Note the following:
● The positioning of the spring in the
throttle control.
● The connection of the throttle cable
from underneath to the throttle control
catch.
● Do not lubricate!
