Jonsered 2095 Workshop Manual

42
4
502 50 87-01
502 51 67-01
1
2
3
4
A

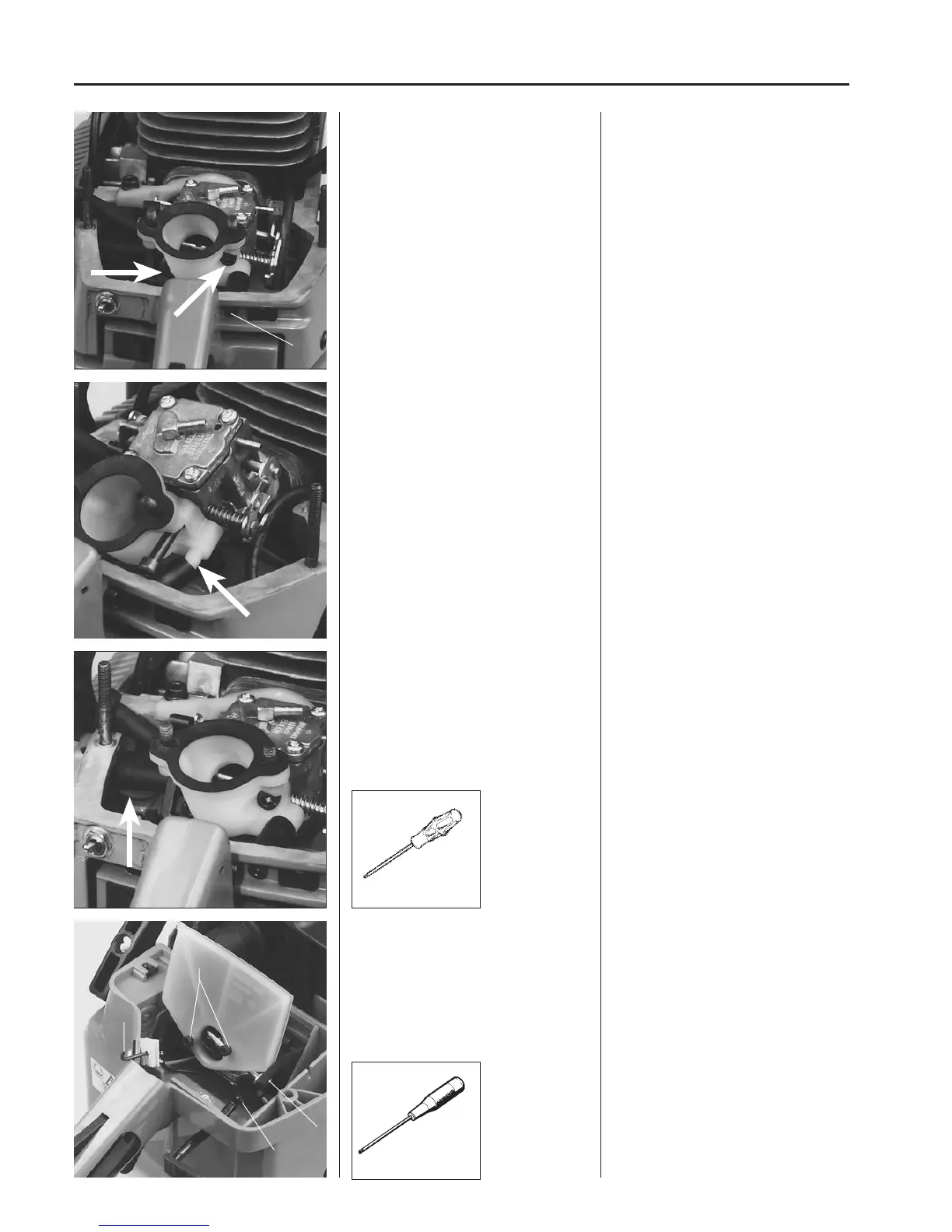

Fuel system
Unscrew the carburettor screws and lift
up the carburettor.
Fitting mod. 625/630/670
Fit the carburettor in the reverse order to
dismantling.
Place the air filter connection and car-
burettor screws on the carburettor.
Fit the screwdriver guide on the adjusting
screws.
Push in the tap on the air filter connection
in the vibration damper.
Press down the carburettor and connect
the screwdriver guide against the crank-
case.
Screw tight the carburettor screws.
Use screwdriver No. 502 50 87-01 which
permits a slight angular adjustment.
Dismantling mod. 2077/2083
Dismantle the air filter holder.
Unscrew the carburettor screws and lift
up the carburettor.
NOTE!
The screw (A) which holds the vibration
damper should not be dismantled.
Fitting mod. 625/630/670
Fit the carburettor in the reverse order to
dismantling.
Place the air filter connection and car-
burettor screws on the carburettor.
Fit the screwdriver guide on the adjusting
screws.
Push in the tap on the air filter connection
in the vibration damper.
Press down the carburettor and connect
the screwdriver guide to the crankcase.
Screw tight the carburettor screws.
Use screwdriver No. 502 50 87-01 which
permits a slight angular adjustment.
Dismantling mod. 2077/2083
Remove the impulse pipe (1) and choke
lever (2).
Lift up the throttle push rod (3) and re-
lease the carburettor screws (4).
Use screwdriver No. 502 51 67-01 (Torx).
