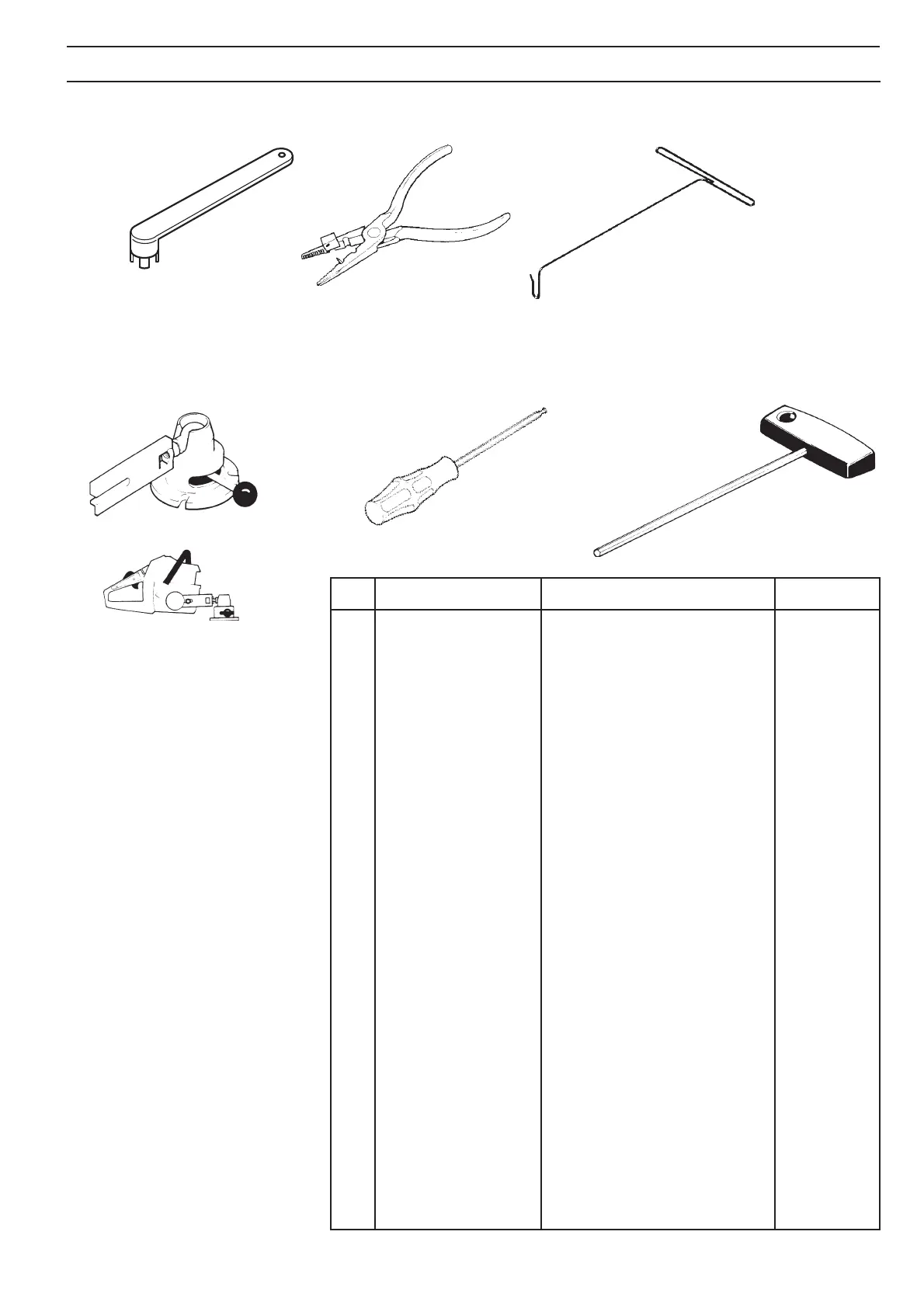

SERVICE TOOLS

English – 9

18 19 20

Item Description Used for Order No.

1 Piston stop Locking the crankshaft 502 54 15-01

2 Cover plate, inlet Sealing the intake manifold 502 54 05-01

3 Cover plate, exhaust Sealing the exhaust port 502 71 39-01

4 Pressure tester Produce pressure when

leakage testing 502 50 38-01

5 Extractor Dismantling the crankshaft 502 51 61-01

6 Puller Removing bearings from

the crankshaft 504 90 90-01

7 Holding tool Dismantling of the flywheel 502 51 49-01

8 Puller Dismantling of the flywheel 502 50 26-01

9 Piston assembly set Assembling the piston 502 50 70-01

10 Assembly tool Assembling the crankshaft 502 50 30-17

11 Extractor Removing seal on flywheel side 502 50 55-01

12 Feeler gauges, air gap Adjustment of the ignition module 502 51 34-02

13 Tachometer Adjusting the carburettor 502 71 14-01

14 Test spark plug Checking the ignition module 502 71 13-01

15 Clutch tool Assembling and dismantling 502 52 22-01

of centrifugal clutch

16 Assembly bar Assembly of the spark plug guard 502 50 06-01

17 Hook for the fuel filter Lifting out the fuel filter 502 50 83-01

18 Assembly fixture Assembling the chain saw 502 51 02-01

19 Hexagonal screwdriver,

3 mm For M-4 screws 502 50 86-01

19 Hexagonal screwdriver,

4 mm For M-5 screws 502 50 87-01

19 Hexagonal screwdriver,

4 mm For M-6 screws 502 50 88-01

20 Allen key, 3 mm For M-4 screws 502 50 19-01

20 Allen key, 4 mm For M-5 screws 502 50 18-01

20 Allen key, 5 mm For M-6 screws 502 50 64-01

The tools listed here are service

tools intended for use on the

chainsaw in question. In addition to

these tools, a standard set of hand

tools is required.
