ELECTRICAL SYSTEM
English – 21
Ignition system
1. Remove the cylinder cover and starter unit.
See page 16.
2. Release the blue lead (A) (which connects to the stop
button) from the ignition module (B). See fig. 1.
3. Remove the ignition cable (C) from the spark plug and
release both cables from the cable guide (D), and lift off
the cable guide. See fig. 1.
4. Remove the two M5 bolts and lift off the ignition module
(B). See fig. 1.
5. Remove the two pawls (E) for the starter. See fig. 1
and fig. 6.
6. Remove the spark plug and fit the piston stop in spark
plug hole. See fig. 2.
7. Release the flywheel nut. Unscrew the nut until it comes
level with the outer end of the shaft thread
See fig. 3.
8. Fit the flywheel puller. Tighten down the two M5x25 bolts
approx. 10 turns. Tighten the centre bolt, while preventing
rotation with the holding tool until the flywheel releases.
See fig. 4.
9. Remove the puller, nut, washer and flywheel.
Dismantling
Cleaning and inspection
Clean all parts, especially the tapers on the flywheel and
shaft.
Check the flywheel for cracks or any other signs of damage.

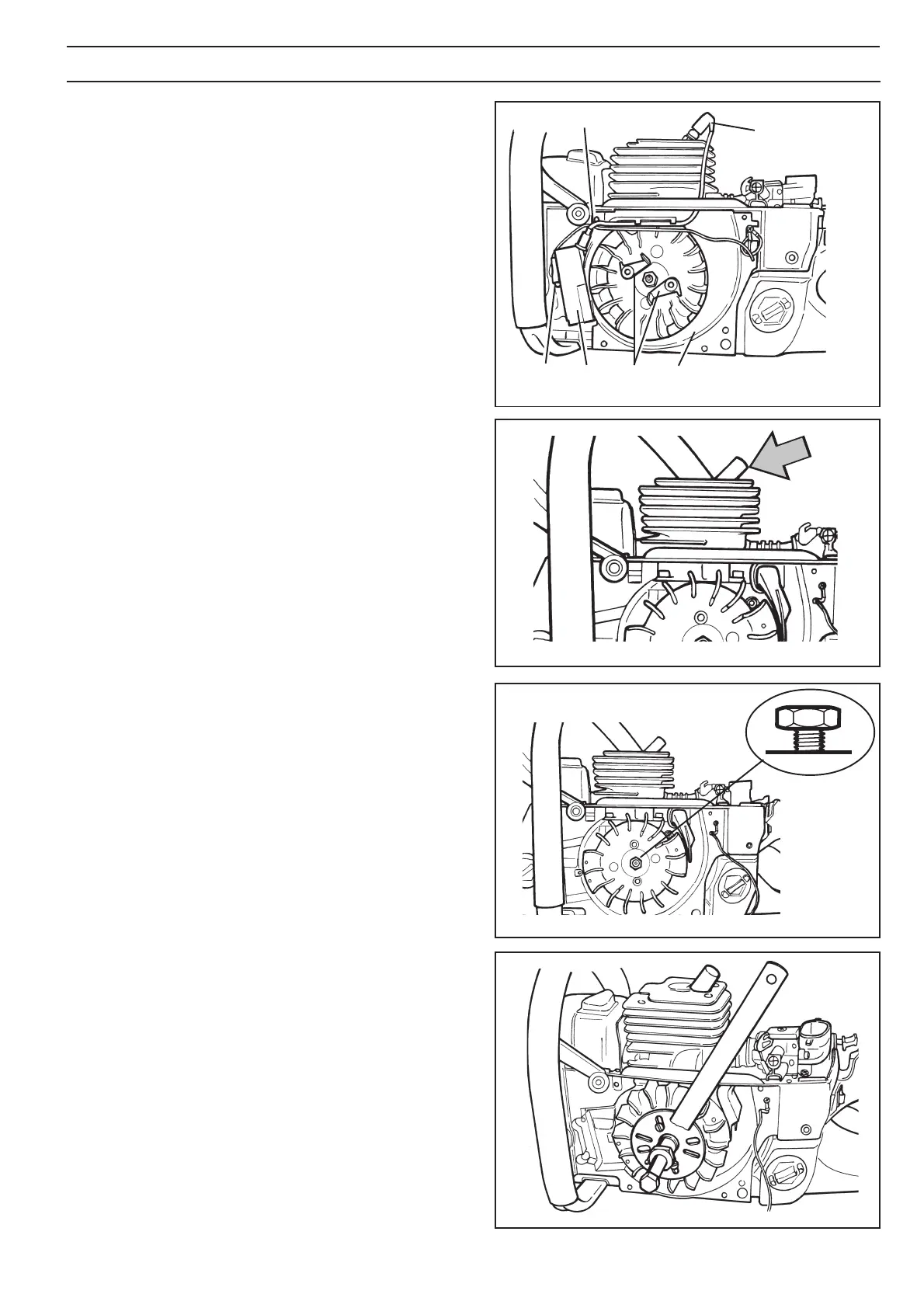

Fig. 1
Fig. 2
Fig. 3
Fig. 4
C
ABED
F
