ELECTRICAL SYSTEM
Assembly

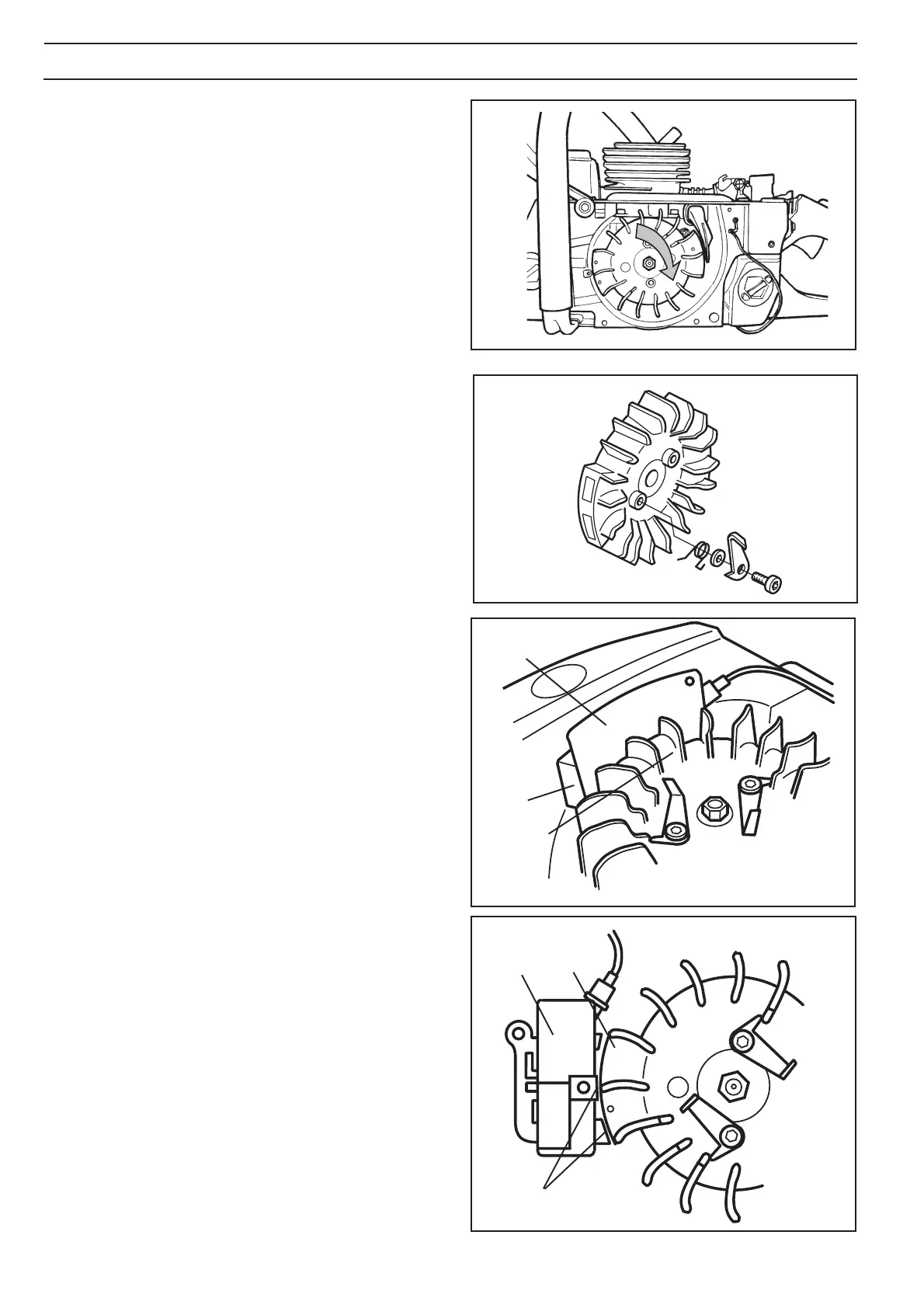

Assemble the ignition system as follows:
1. Fit the flywheel on the spindle. Turn it gently until the
key on the flywheel mates with the recess in the shaft.
2. Fit the flywheel washer and nut. Tighten the nut to 35 Nm.
See fig. 5.
3. Fit the two pawls on the flywheel.
See fig. 6.
4. Remove the piston stop.
5. Fit the ignition module (B) without tightening its bolts.
See fig. 8.
6. Turn the flywheel so that its magnet (G) comes
opposite the ignition module. See fig. 7.
7. Insert the feeler gauge (H) (0.3 mm) between the
ignition module and the flywheel magnet. The
clearance only applies to the two lower pegs on the
ignition module. See fig. 7 and 8.
8. Push the ignition module against the flywheel and
tighten the bolts to 4 Nm.
9. Fit the cable guide (D page 21 fig. 1) and press on
the ignition cable. Connect the ignition cable to the
spark plug.
10.Pull out the cable and press home the cable clip (F) on
the ignition module. See fig. 1.
11.Fit the remaining parts on the saw. See respective
chapters.
Stop switch
The stop switch is described in the section “Safety equipment”.
See page 15.
Fig. 5
Fig. 6
H
B
G
Fig. 7
B
G
0.3 mm
Fig. 8
