TANK UNIT
WARNING!
The fuel used in the chainsaw has the
following hazardous properties:
1. The fluid and its fumes are poisonous.
2. Can cause skin irritation.
3. Is highly inflammable.
Tank unit
!
Dismantling
1. Drain off the fuel from the tank.
2. Remove the cylinder cover, chain and bar.
See the instruction book.
3. Unhook the throttle cable (A) from the carburettor and
push out the cable casing from its attachment. See fig. 1.
4. Remove the fuel pipe (B) from the carburettor.
5. If the chainsaw is fitted with hand grip heating, release
the cable at C. See fig. 2.
6. Remove the bolts (C, D, E and F). See fig. 2.
7. Remove the bolts (H, J and K) from the flywheel side.
See fig. 3.
8. Remove the stop switch and the disconnect the leads.
If the chainsaw is fitted with hand grip heating, disconnect
the switch and leads.
9. If the tank guard (chain deflection/break) (G) is damaged,
it must be replaced. See fig. 2.
10.If necessary, lift out the fuel pipe and pull off the fuel filter.
Use tool 502 50 83-01, see pos. 17, page 9.
11.If the chainsaw is fitted with hand grip heating, release
the connector to the heating element.
See fig. 20 page 25.
12.If the springs are to be removed, see AV-system, page 40.

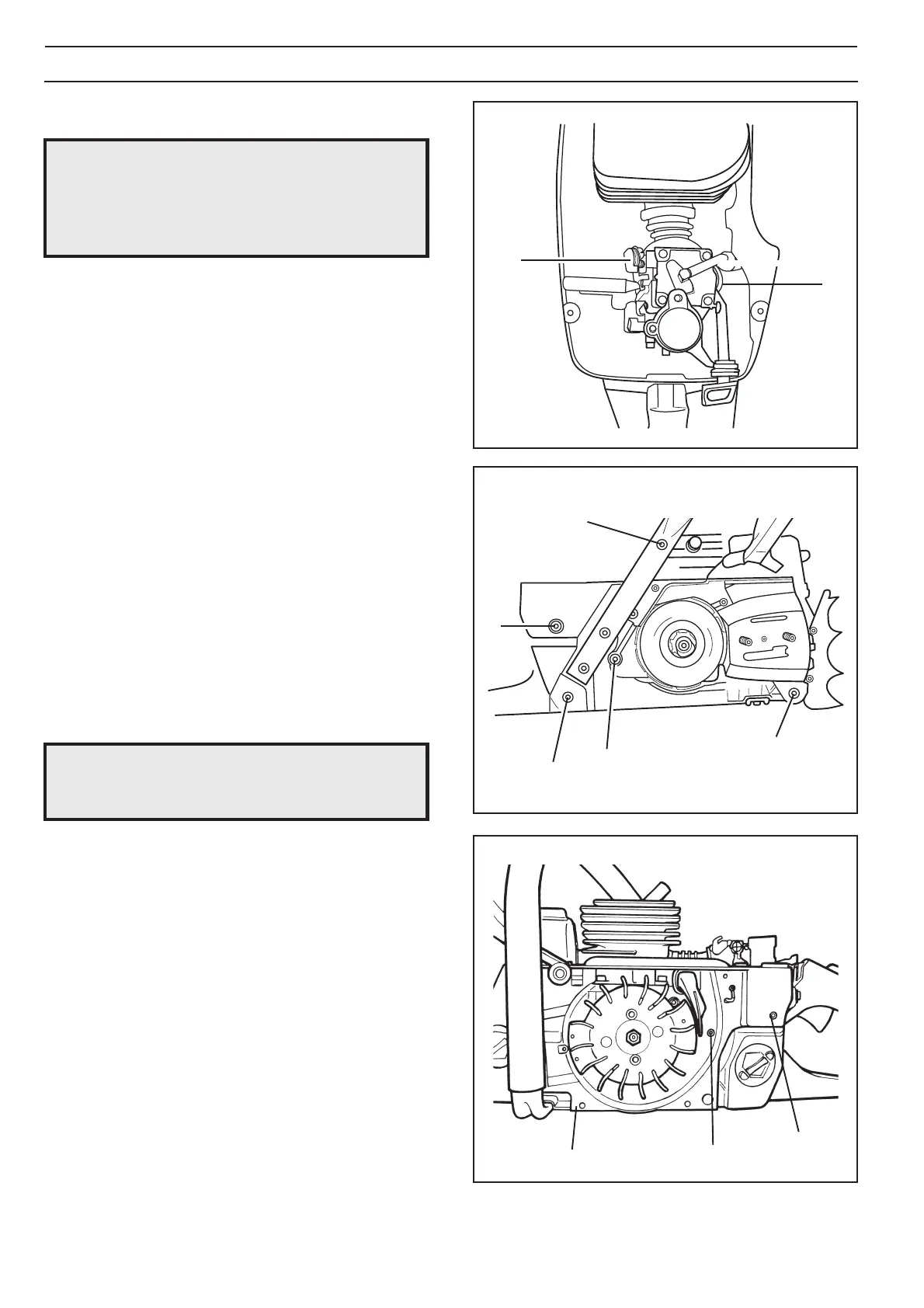

Fig. 1
Fig. 2
Fig. 3
NOTE!
Take care not to damage the fuel pipe and
throttle cable.
C
D
E
F
A
B
G
K
J
H
