STARTER
English – 19
WARNING!
If the spring is tensioned on the starter
pulley it can fly up and cause personal
injury.
WARNING!
If the spring is tensioned on the starter
pulley it can fly up and cause personal
injury.
Wear protective glasses.
WARNING!
If the spring is tensioned on the starter
pulley it can fly up and cause personal
injury.
Wear protective glasses.

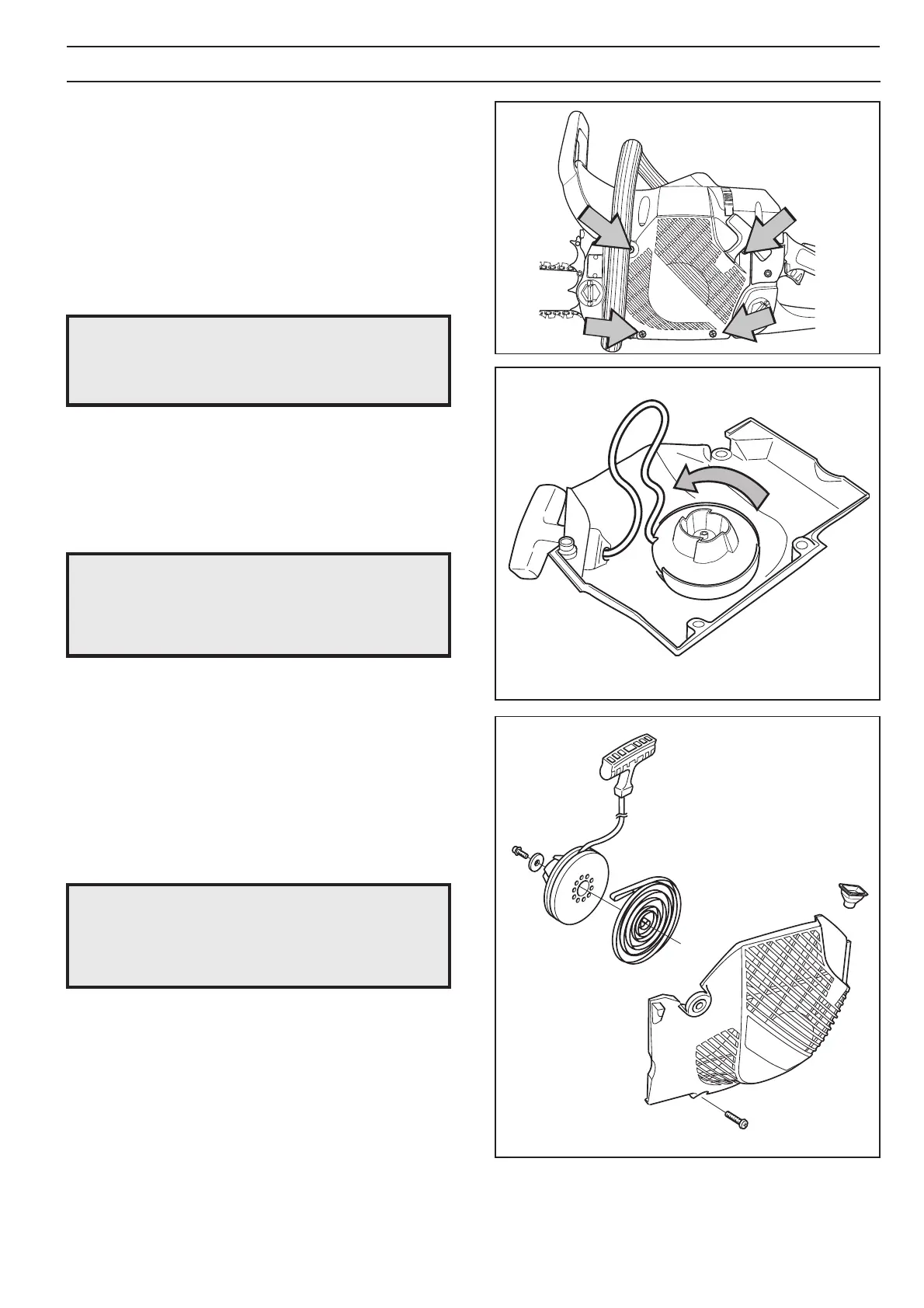

Starter
Dismantling
1. Remove the four bolts holding the starter to the crankcase
and remove the starter. See fig. 1.
2. Pull out the handle 20-30 cm and take out the cord from
the slot in the starter pulley. See fig. 2.
3. Rotate the starter pulley anticlockwise until the tension on
thepulley is released.
Clean all components and check the following:
1. Starter cord.
2. The dogs on the starter pulley.
3. That the pawls on the flywheel are intact, spring back
towards the centre and move freely.
!
4. Remove the central bolt and take out the washer and
starter pulley. See fig. 3.
5. If the starter cord is to be replaced, cut it off pull out the
ends from the handle and starter pulley with pointed
pliers.
!
6. If the spring is to be replaced, remove the old spring.
Cleaning and inspection
!
Fig. 1
Fig. 2
Fig. 3
