18 – English
SAFETY EQUIPMENT

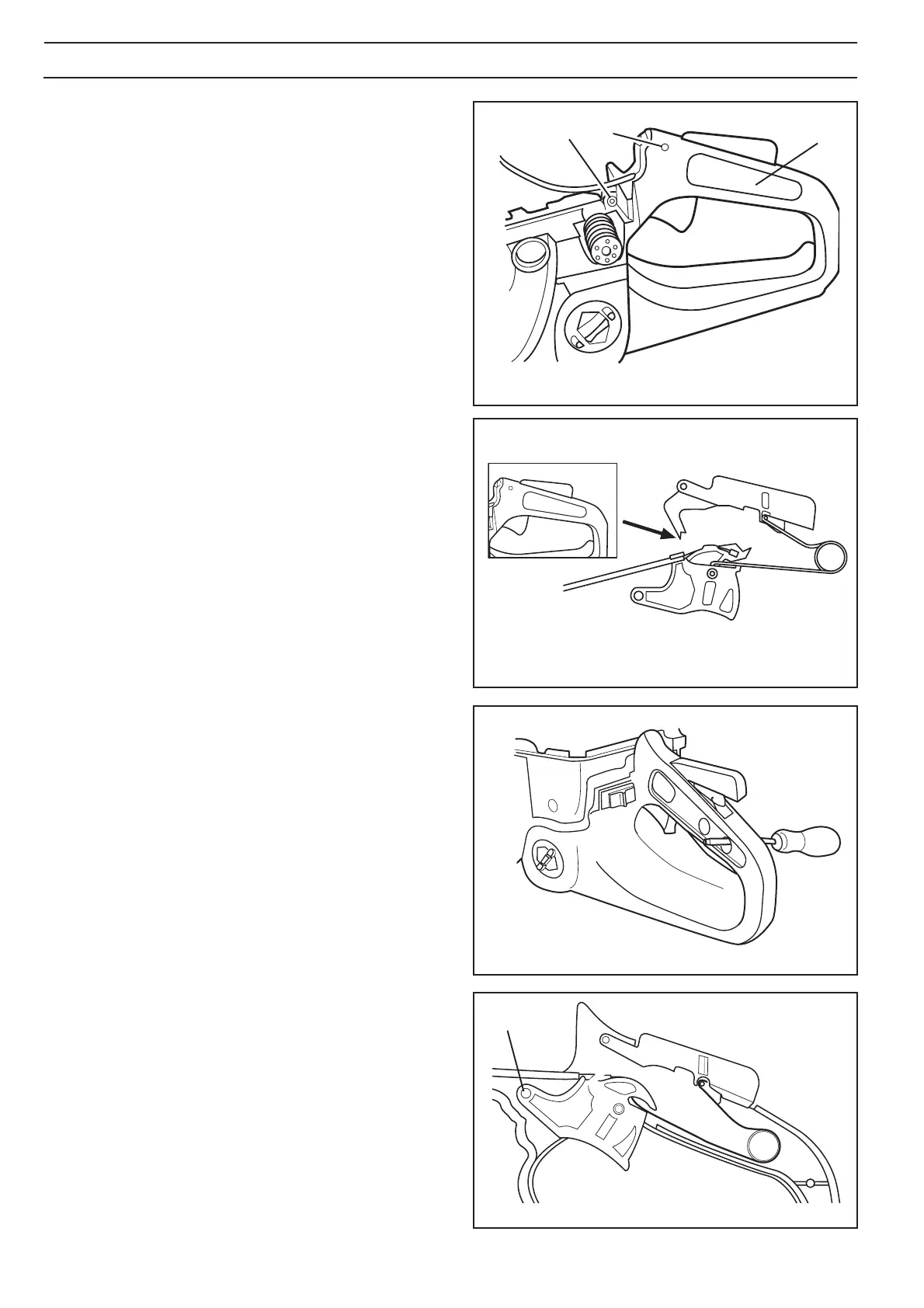

Throttle lock
Dismantling
1. Remove the hand grip insert (C). See fig. 12.
2. Remove the throttle lock pivot (A) with the help of a driver.
See fig. 12.
3. Press apart with a screwdriver or the like the throttle lock/
control and take out the throttle lock from the recess in the
hand grip. Now remove the spring. See fig. 13.
4. Remove the stop switch. Press out the throttle lever pivot
(B) with a driver. See fig. 12 and 15.
5. Remove the throttle cable and lever. See fig. 15.
Inspection
Clean all components and check the following:
1. That the throttle cable and lever are undamaged and run
easily.
2. That the lock activation mechanism is not worn.
See fig. 13.
Assembly
1. Fit the throttle cable and lever. Fit the throttle lever
with pivot (B). See fig. 12 and 15.
2. Fit the spring in the recess in the throttle lock. Hold the
spring in place and locate the throttle lock in the recess
in the hand grip.
3. Fitting of the throttle lock is simplified by using a
screwdriver or the like to lock the spring.
See fig. 14.
4. Fit the throttle lock pivot (A) with the help of a driver.
See fig. 12.
5. Fit the switch and hang grip insert.
Fig. 12
Fig. 15
A
B
Fig. 13
Fig. 14
B
C
