STARTER
20 – English
WARNING!
If the spring is tensioned on the starter
pulley it can fly up and cause personal
injury.
Wear protective glasses.
Assembly
1. If a new spring is to fitted, place the new spring with
steel wire so that the end loop comes over the peg (A)
in starter pulley. See fig. 4.
2. Press down the spring in the starter pulley and remove
the wire.
3. If a new cord is to be fitted, push the free end in the hole
in the starter pulley. Take hold of the end with pointed pliers
inside the pulley and pull up the cord. See fig. 5.
4. Grease the starter pulley bearing and spring, and fit the
pulley on the spindle. Turn gently backwards and forwards
until the spring catches on the stop in the housing.
5. Fit the washer and bolt. See fig. 3.
Tighten the bolt to 4 Nm.
6. Pull out the cord through its hole in the housing and fit the
handle and secure it with a double knot. See fig. 5.
7. Wind the cord onto the starter pulley and rotate the
pulley clockwise until the cord is correctly tensioned.
See below and fig. 6.
Checking the cord tension:
A. Pull out the cord completely.
B. In this position it should be possible to turn the pulley
by hand an additional 1/2 - 3/4 turn.
8. Fit the starter on the crankcase. Tighten the bolts to 4 Nm.
See fig. 1.
!

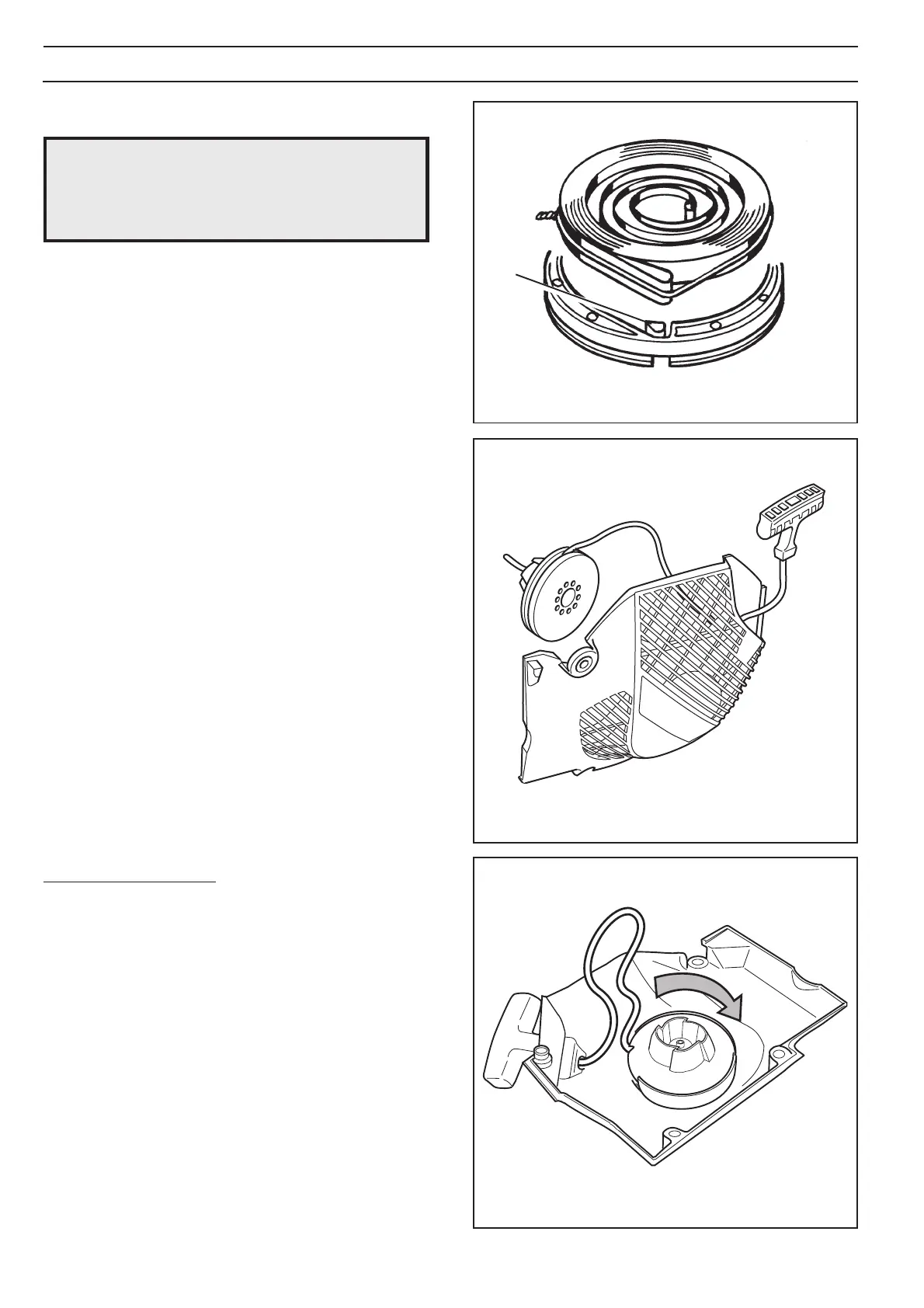

Fig. 4
A
Fig. 5
Fig. 6
