SAFETY EQUIPMENT
WARNING!
After repair, the chain brake must be
checked according to the following
instructions.
Bar length, L Height, H
18-20 inches 50 cm
21-28 inches 70 cm
For this test, the engine must not be running.
Check that the chain brake cuts in as follows:

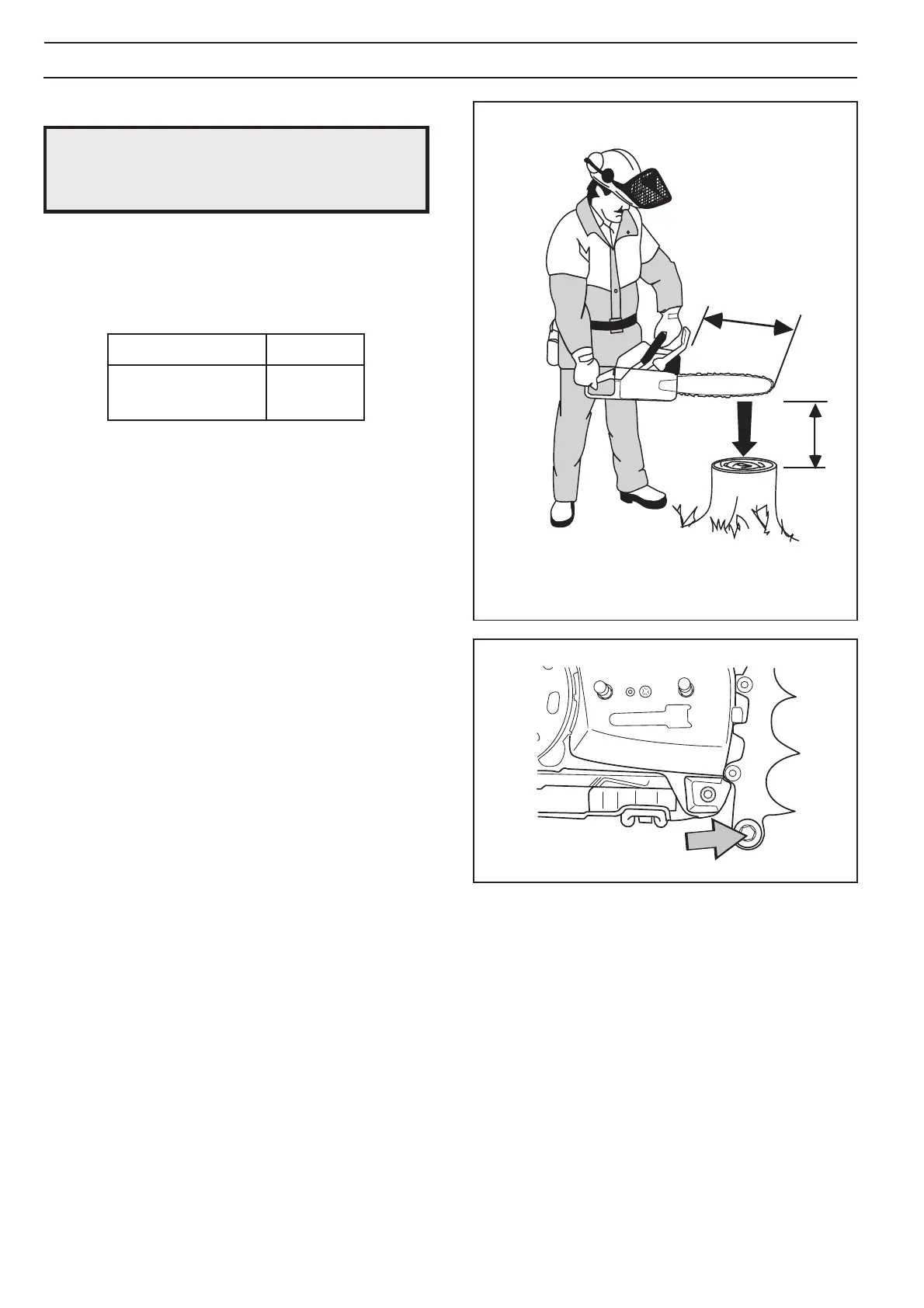

1. Hold the chain saw over a stable surface as shown in fig. 10.
The distance between the bar and surface is given in the
table below.
2. Let go of the front hand grip and let the chainsaw pivot
round on the rear hand grip.
3. When the bar hits the surface the chain brake should
cut in.
!
Function check
Fig. 10
L
H
Fig. 11
Chain catcher
Dismantle the chain and bar. See instruction book.
Inspect the chain catcher and replace it if it is damaged. The
bolts should be tightened to 6 Nm. See fig. 11.
Fit the chain and bar. See instruction book.
