Presentation
Congratulations on your choice of an exceptionally
high quality product.
Four models equipped with engines from Briggs &
Stratton are described in this operator’s manual.
FR 2111 has an inline type gearbox with 5 forward
gears and reverse.
On FR 2113 and FR 2115 transmission is by means
of a variable speed hydrostatic gearbox.
FR 2113 is available in two versions. FR 2113 A has
a mowing deck with rear ejection and FR 2113 MA
has a mowing deck with mulching.

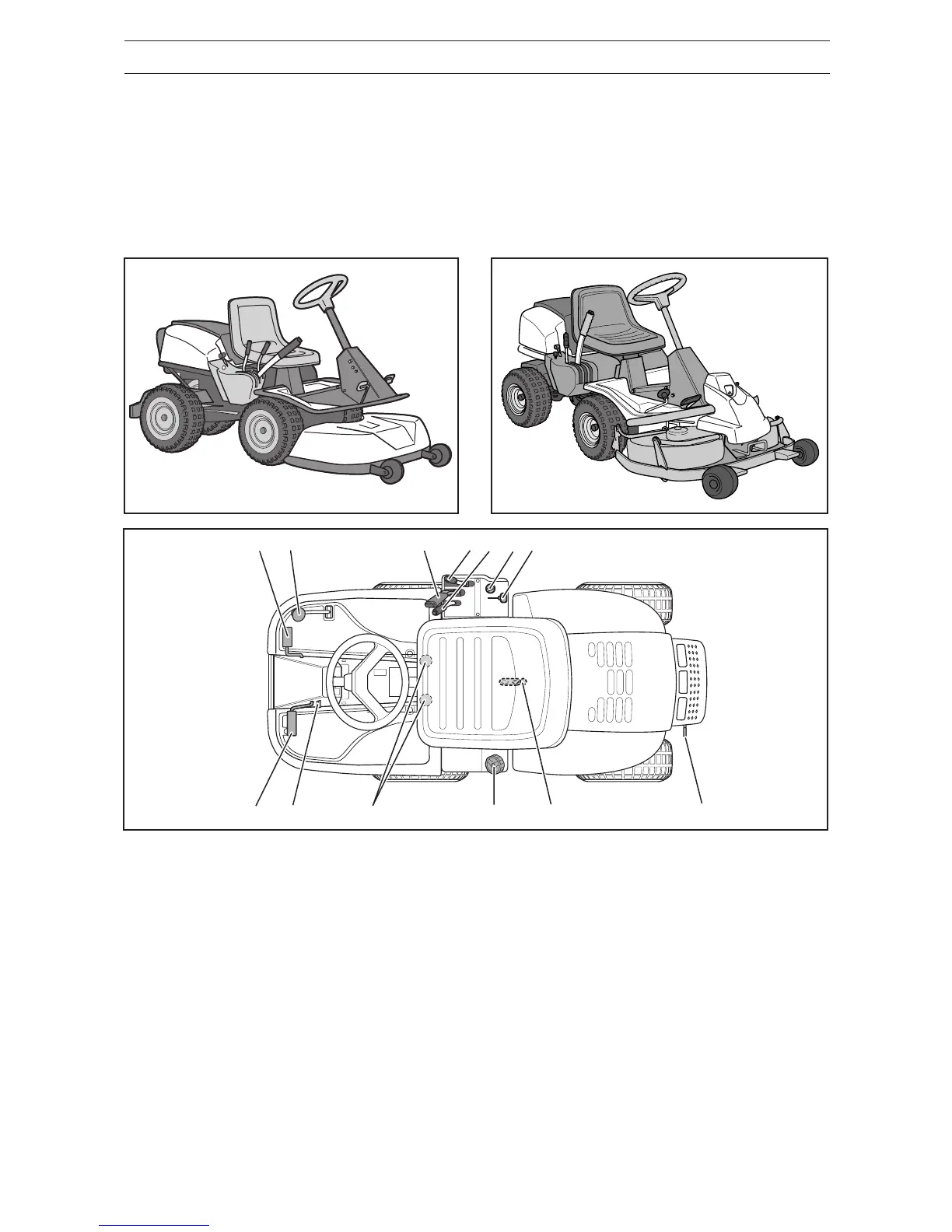

Placement of controls
1. Ignition key
2. Throttle/Choke control
3. Adjustment of the cutting height
4. Lifting lever, mowing deck
5. Accelerator for reversing, FR 2113,
FR 2115
6. Accelerator for driving forwards, FR 2113,
FR 2115
Parking brake, FR 2111
7. Parking brake, FR 2113, FR 2115
Clutch pedal, FR 2111
8. Lock button for the parking brake
left-hand side for FR 2113, FR 2115
right-hand side for FR 2111
9. Seat adjustment
10. Fuel cap
11. Main lock (under seat)
12. Lever for disengaging the drive, FR 2113,
FR 2115.
13. Gear shift lever, FR 2111
