28– English
6008-014
6008-015
6008-016
6008-017
MAINTENANCE FR 2111, FR 2113
5. Fit the air filter as follows:
Thread the prefilter over the paper filter.
Fit the paper filter with the prefilter in the air filter
housing and tighten the wing nut.
Return the plastic cover over the air filter hous-
ing and tighten the wing nut.

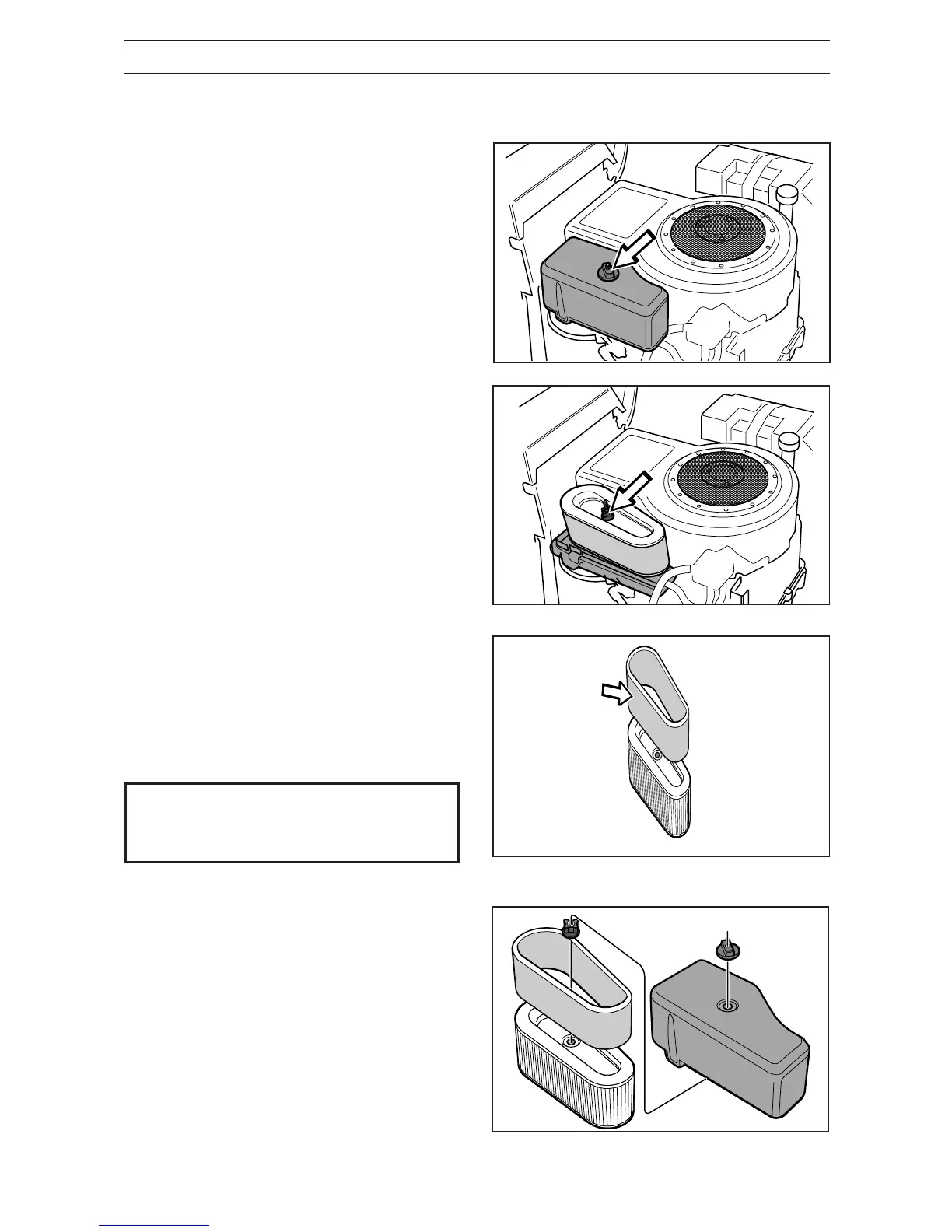

Replacing the air filter
If the engine seems weak or runs unevenly, the air
filter may be clogged.
For this reason, it is important to replace the air
filter regularly (see the chapter Maintenance/
Maintenance schedule for the proper service
interval).
Replacing the air filter is carried out as follows:
1. Fold up the engine cover.
2. Remove the plastic cover on the air filter
housing by loosening the wing nut.
4. Slip the foamed plastic prefilter off of the paper
filter and clean using a mild detergent.
Squeeze it dry with a clean cloth.
Soak it with new engine oil. Wind the filter in an
absorbent cloth and squeeze out excess oil.
Replace the paper filter if it is clogged with dirt.
IMPORTANT INFORMATION
Do not use compressed air to clean
the paper filter.
3. Remove the wing nut on the air filter and lift out
the paper filter with prefilter.
