English – 17

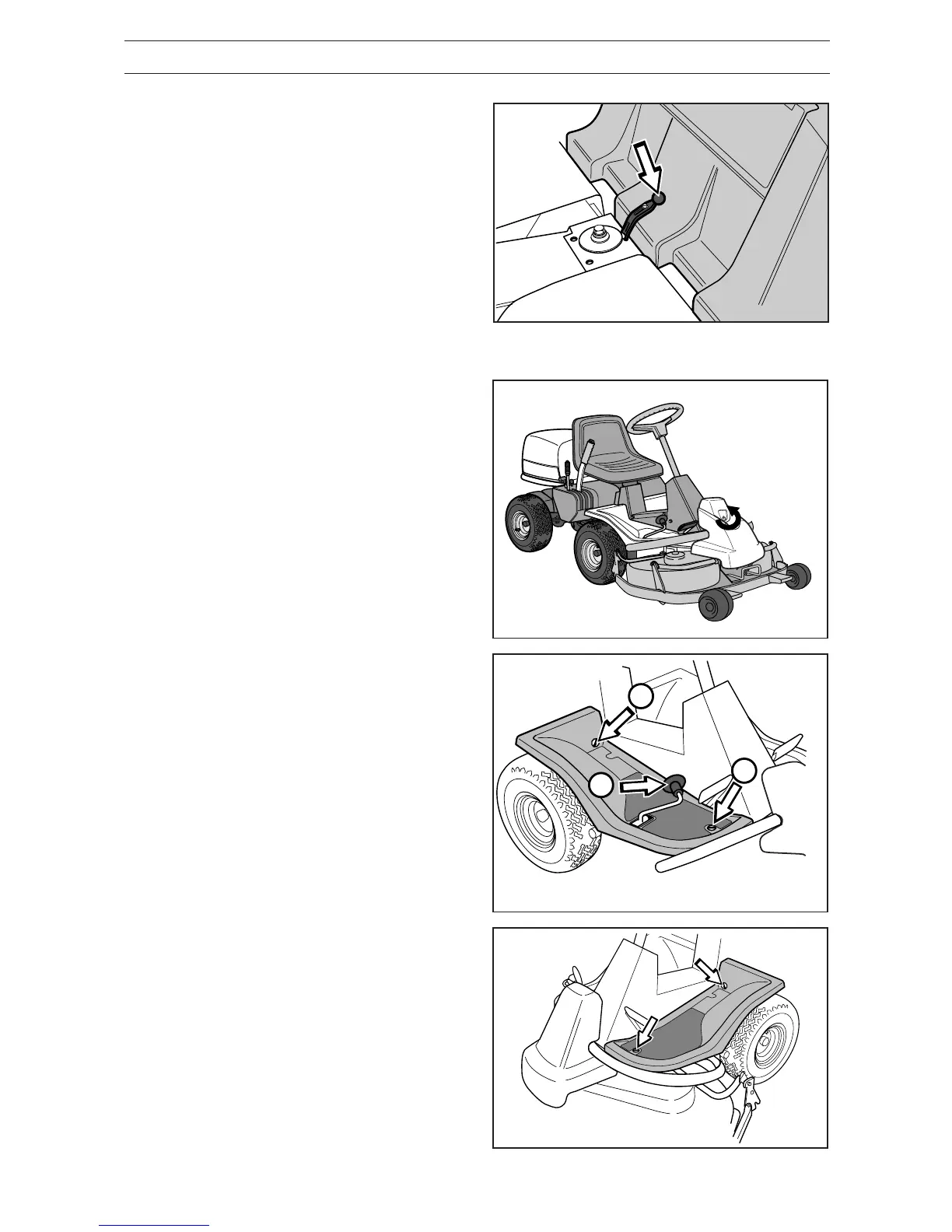

Dismantling of the machine hoods
Engine hood
The engine is accessible for servicing when the
engine hood is lifted up.
Tilt the seat forward, release the rubber strap under
the seat, and tilt the hood backwards.
MAINTENANCE
Left-hand fender
Release the screws in the fender (2) and lift off the
fender.
Right-hand fender
Remove the knob (1), the screws (2 and 3) and lift
off the hood.
Front hood
Release the clip on the front hood and lift off the
fender.
2
11
3
1
