jost JSK36D - Installing the Tilt Stop

3 Installation
3.2 Installing the tilt stop

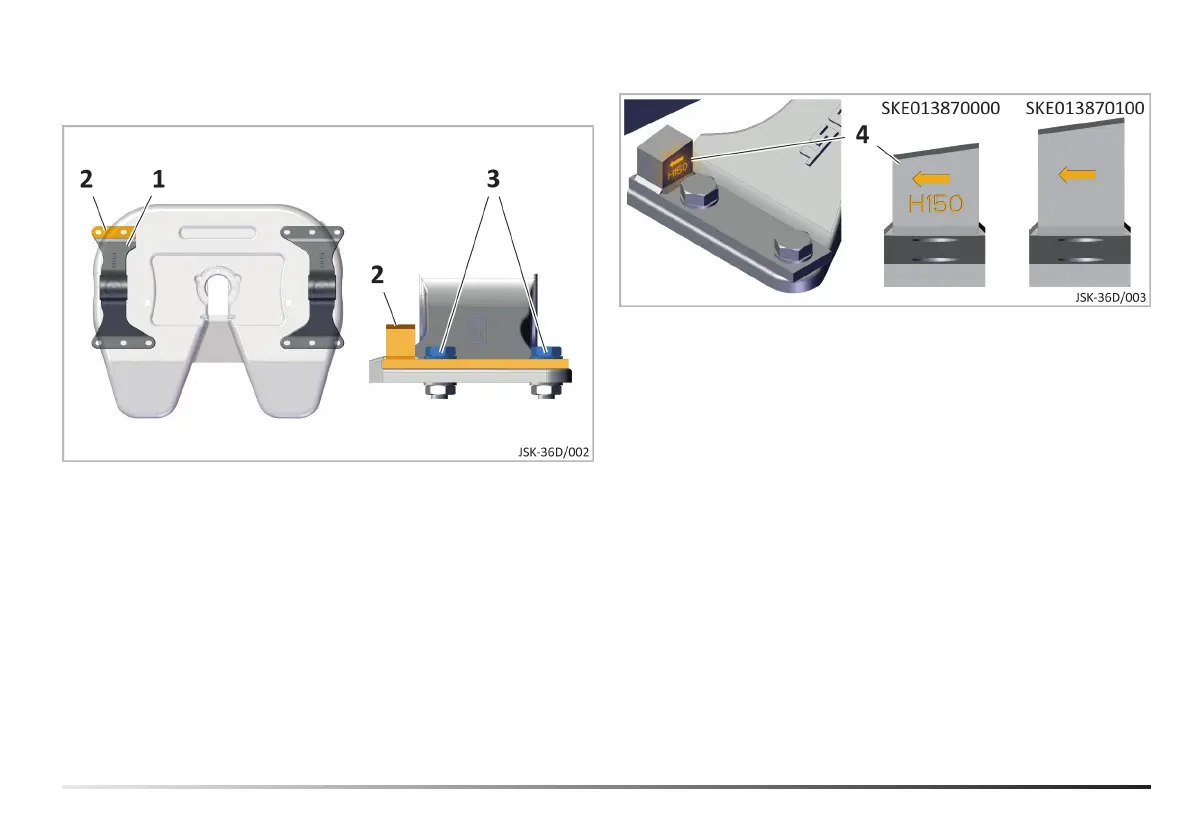

1 Left pedestal
(cut off foot)
3 Washer inside Ø 17 mm
to DIN EN ISO 7089 (min.
HV295)
2 Tilt stop
4 Installation direction
arrow
1. Mount the tilt stop (2) on the front left-hand side, on the left
pedestal (1), on the side with only two holes in the foot.
2. Pay attention to the installation direction arrow (4), i.e. arrow
in direction of travel.
8 MUB 002 013 M30 (REV--) 02-2024
